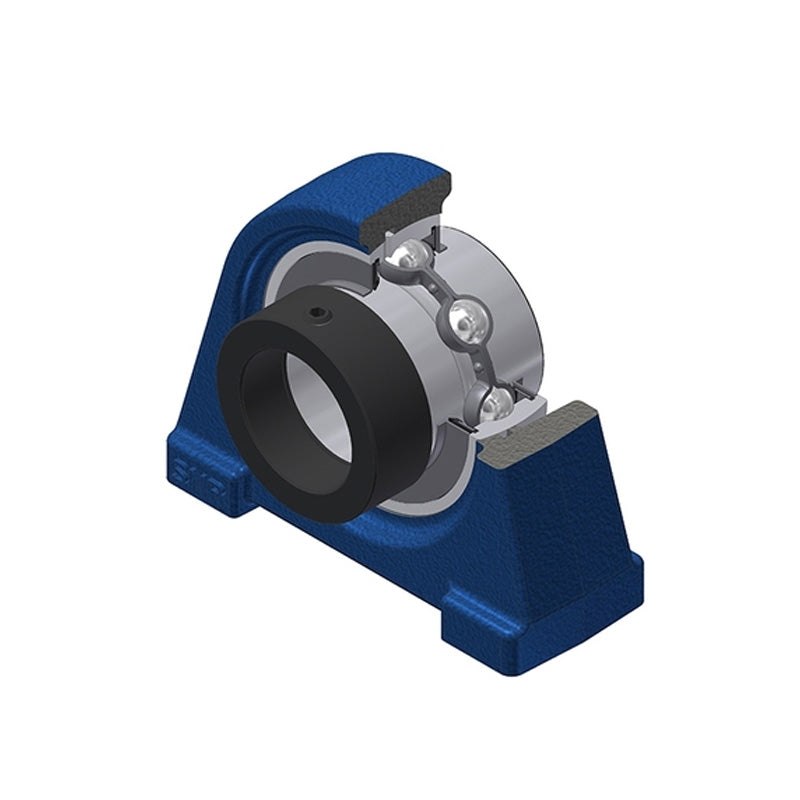

• SNR EXPAE211 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 55mm Bore - Allow 2-3 Days
1 1

SKU: EXPAE211-SNR

SNR EXPAE211 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 55mm Bore - Allow 2-3 Days

SNR EXPAE211 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 55mm Bore - Allow 2-3 Days
CHF 74.00 ex VAT
CHF 74.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 58.19
4+ CHF 54.92
9+ CHF 54.27
19+ CHF 53.61
49+ CHF 52.96
99+ CHF 52.31
499+ CHF 49.04
999+ CHF 48.38
1999+ CHF 47.73
2999+ CHF 47.08
4999+ CHF 45.77
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
EXPAE200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
55mm
Style:
EXPAE
Bolt Hole Centres:
118mm
Technical
--- Dimensions
Shaft diameter 55mm
A 60mm
A1 35mm
B 55.4mm
d1 74.5mm
E 20mm
H 64mm
H1 16mm
H2 125mm
J 118mm
L 150mm
L1 32mm
N M16
S 27.7mm
G R1/8
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 22 Nm
Mass 3.39 kg
