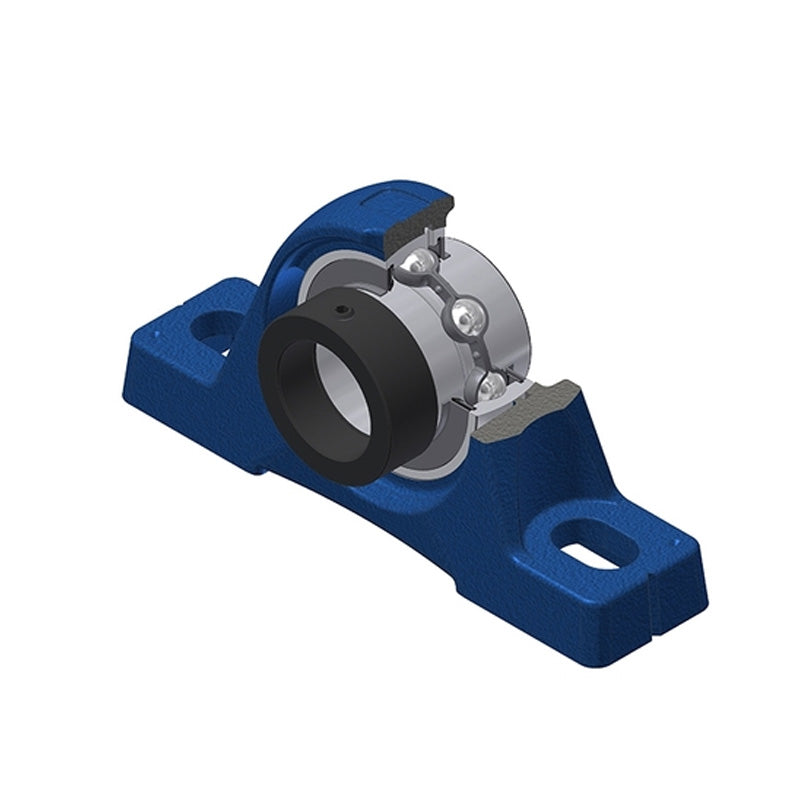

• SNR EXPG207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
1 1

SKU: EXPG207-SNR

SNR EXPG207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days

SNR EXPG207 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
CHF 50.00 ex VAT
CHF 50.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 43.88
4+ CHF 42.10
9+ CHF 41.22
19+ CHF 39.89
49+ CHF 39.00
99+ CHF 36.79
499+ CHF 31.02
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
EXPG200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
EXPG
Bolt Hole Centres:
68mm
Technical
--- Dimensions
Shaft diameter 35mm
A 48mm
A1 27mm
B 37.6mm
d1 51.1mm
E 22mm
H 47.6mm
H1 20mm
H2 93mm
J 68mm
L 100mm
L1 35mm
N M12
S 18.8mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.7 kg
