SKU: EXSP208-SNR

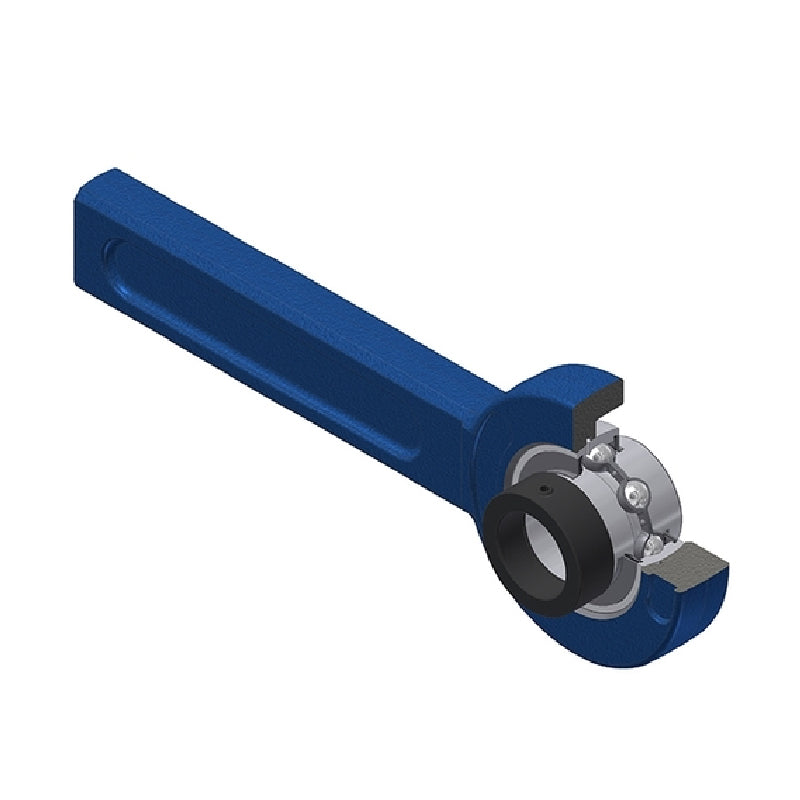

SNR EXSP208 Metric Cast Iron Tensioner Unit with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days

SNR EXSP208 Metric Cast Iron Tensioner Unit with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price CHF 112.00 ex VAT
Regular price Sale price CHF 112.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 98.73
4+ CHF 94.74
9+ CHF 92.75
19+ CHF 89.76
49+ CHF 87.76
99+ CHF 82.78
499+ CHF 69.81
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 40mm
A 31mm
B1 56.3mm
d1 58mm
H 120mm
H2 61mm
L 320mm
L1 260mm
S 21.4mm
G R1/8″
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Stretcher frame 2 SPR21
Stretcher frame 3 SPR22
Stretcher frame 4 SPR24
Mass 4.19 kg
