SKU: EXT311-SNR

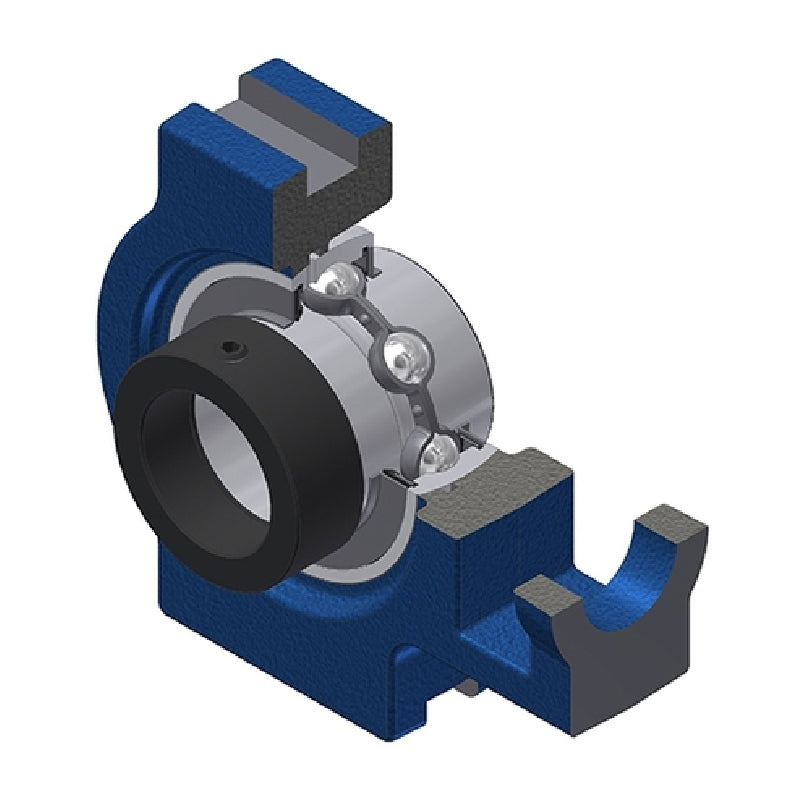

SNR EXT311 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 55mm Bore - Allow 2-3 Days
SNR EXT311 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 55mm Bore - Allow 2-3 Days
Regular price
CHF 199.00
ex VAT
Regular price
Sale price
CHF 199.00
ex VAT
In stock
Price Break
3+
CHF 175.47
4+
CHF 168.38
9+
CHF 164.83
19+
CHF 159.52
49+
CHF 155.97
99+
CHF 147.11
499+
CHF 124.07
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
EXT300 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- EXT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 55mm |
| A | 66mm |
| A1 | 22mm |
| A2 | 44mm |
| B1 | 73mm |
| d1 | 83mm |
| H | 163mm |
| H1 | 150mm |
| H2 | 105mm |
| L | 207mm |
| L1 | 127mm |
| L2 | 23mm |
| L3 | 115mm |
| N | 39mm |
| N1 | 29mm |
| N2 | 66mm |
| S | 27.8mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 71.5 kN |
| Static load C0 | 44.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 6.5 kg |
