SKU: F.6903

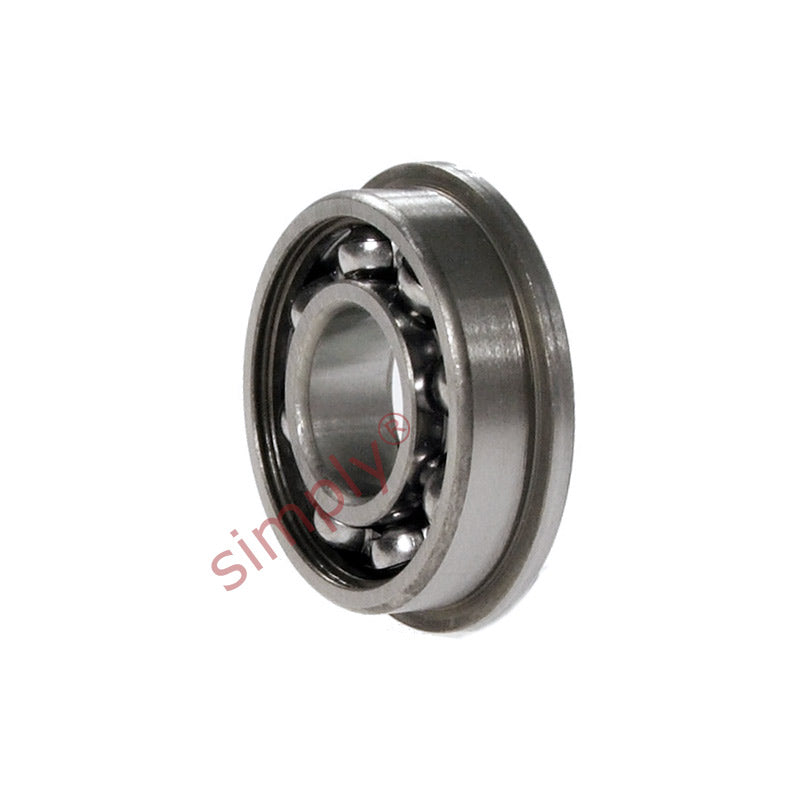

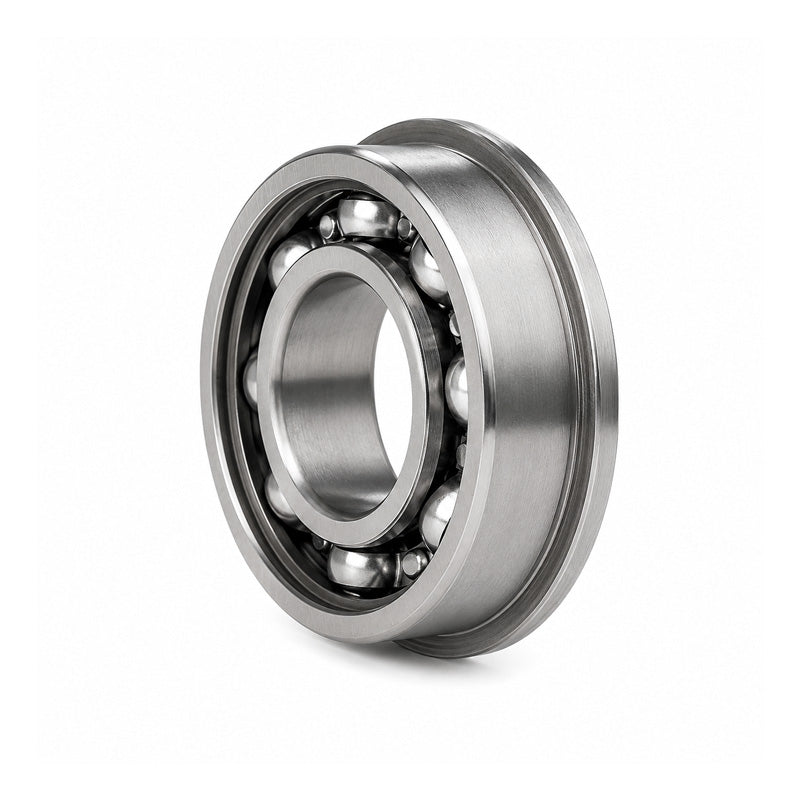

F6903 Budget Open Flanged Thin Section Deep Groove Ball Bearing 17x30x7mm
F6903 Budget Open Flanged Thin Section Deep Groove Ball Bearing 17x30x7mm
Regular price
CHF 16.00
ex VAT
Regular price
Sale price
CHF 16.00
ex VAT
In stock
Price Break
5+
CHF 12.65
9+
CHF 11.94
19+
CHF 11.80
24+
CHF 11.65
49+
CHF 11.51
74+
CHF 11.37
99+
CHF 10.66
199+
CHF 10.52
249+
CHF 10.37
499+
CHF 10.23
999+
CHF 9.95
Description
Description
|
Flanged Deep Groove Ball Bearings: Manufactured to the same principal sizes as standard bearings these have an additional flange to allow fitting into housings flush against the shoulder of the flange. They are often used on steel tracks as guides and supports Benefits: Cost effective replacement bearing, Flanged design |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 30mm
- Width:
- 7mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| Inside diameter d | 17mm |
|---|---|
| Outside diameter D | 30mm |
| Bearing width B | 7mm |
| Flange diameter P | 32.5mm |
| Flange width w | 1.5mm |
| Radius min | 0.3mm |
