SKU: F10-18-MB

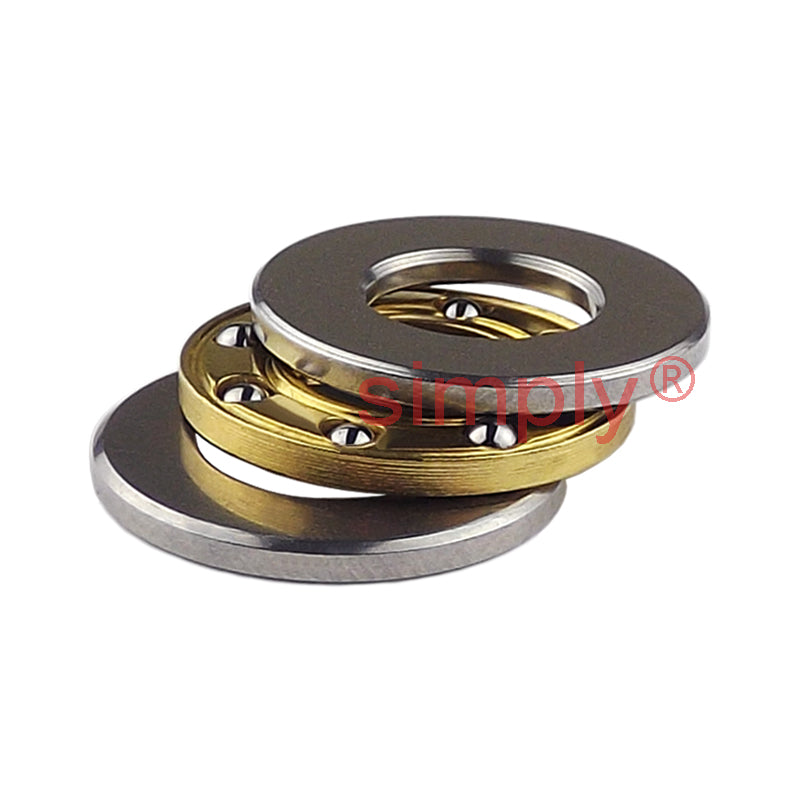

Major Brand F10-18 Single Thrust Ball Bearing 10x18x5.5mm
Major Brand F10-18 Single Thrust Ball Bearing 10x18x5.5mm
Regular price
CHF 8.00
ex VAT
Regular price
Sale price
CHF 8.00
ex VAT
In stock
Price Break
10+
CHF 6.01
19+
CHF 5.67
29+
CHF 5.60
39+
CHF 5.53
49+
CHF 5.47
74+
CHF 5.40
99+
CHF 5.06
199+
CHF 4.99
249+
CHF 4.93
499+
CHF 4.86
999+
CHF 4.72
Share this product
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 18mm
- Width:
- 5.5mm

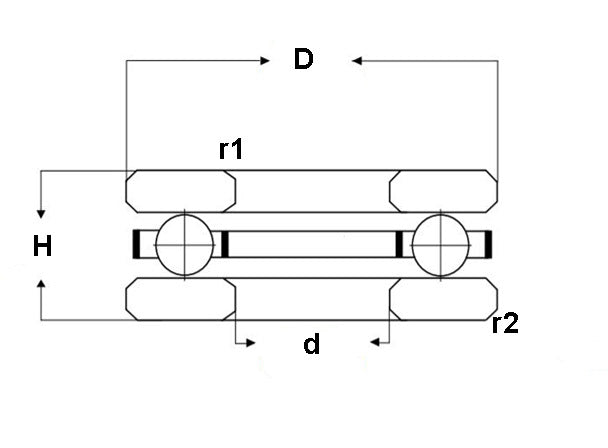

Technical
Technical
| d | 10mm |
|---|---|
| D | 18mm |
| H | 5.5mm |
| Dynamic load C | 0.78 kN |
| Static load Co | 0.7 kN |
| Limiting speed | 14000 rpm |
| Weight | 0.006 kg |
| r1r2 min | 0.3mm |
