SKU: F100B-MB
Major Brand F100B Drive Coupling Pilot Bore Max Bore 80mm
Major Brand F100B Drive Coupling Pilot Bore Max Bore 80mm
Regular price
CHF 82.00
ex VAT
Regular price
Sale price
CHF 82.00
ex VAT
Equivalent to: F100B
In stock
Price Break
10+
CHF 64.71
19+
CHF 61.07
29+
CHF 60.35
39+
CHF 59.62
49+
CHF 58.89
74+
CHF 58.16
99+
CHF 54.53
199+
CHF 53.80
249+
CHF 53.08
499+
CHF 52.35
999+
CHF 50.89
Description
Description
Branded Drive Coupling Pilot Bore: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

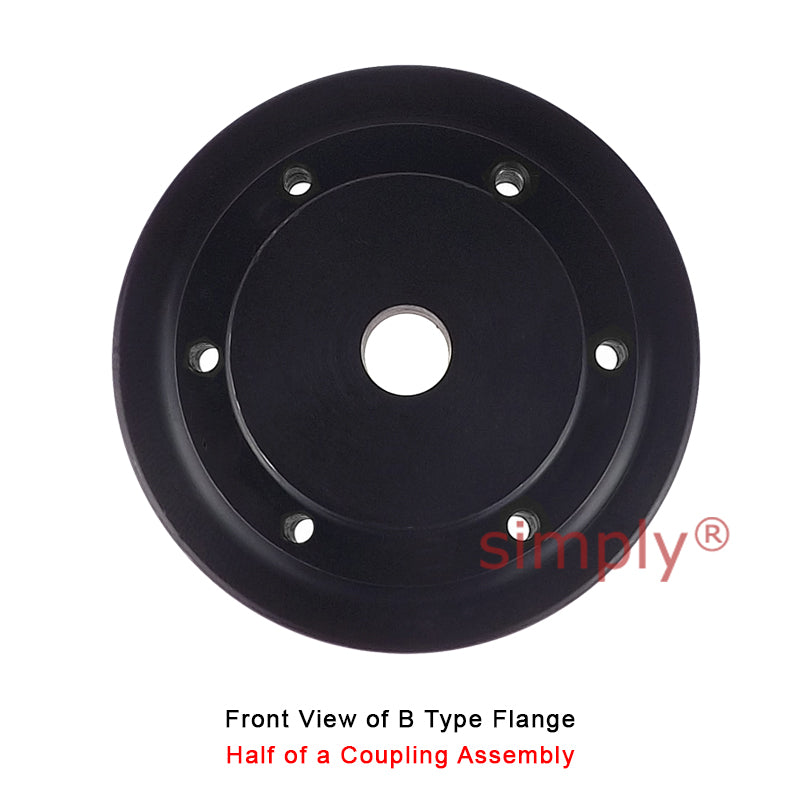

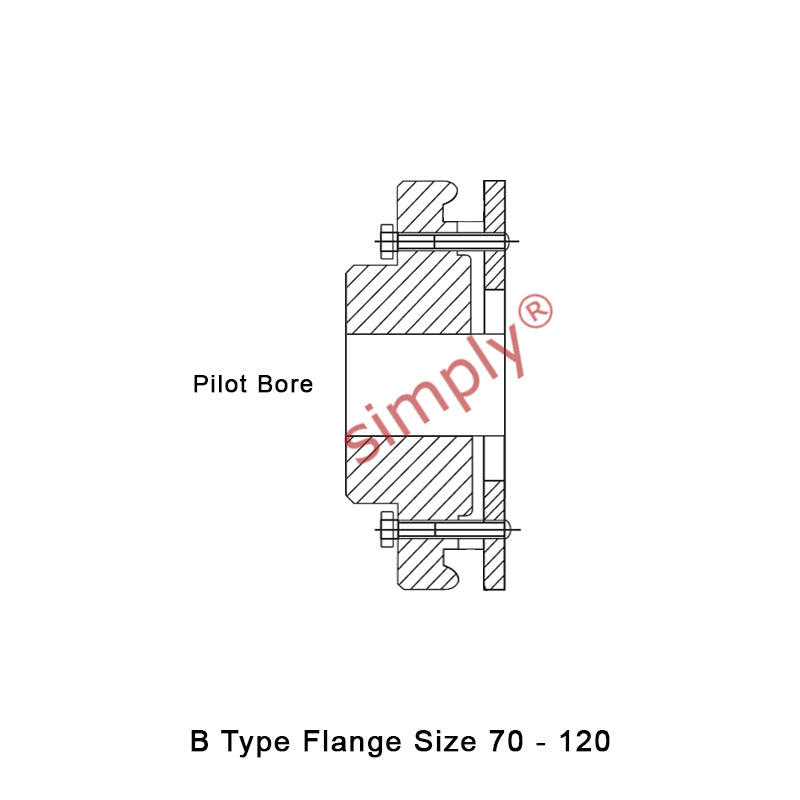

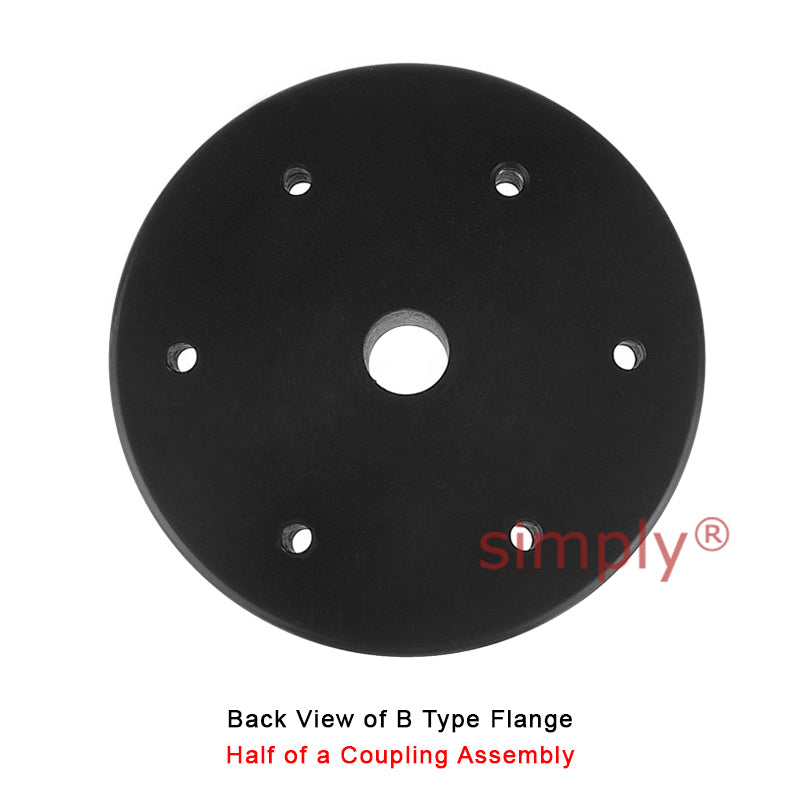

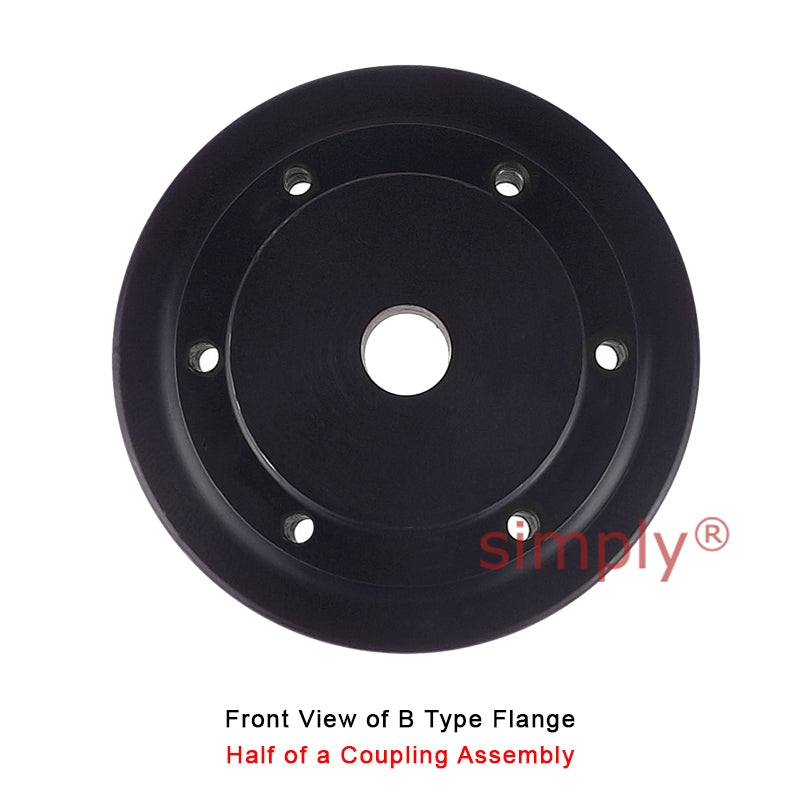

This coupling is the B type is supplied with a nominally sized pilot bore flange.

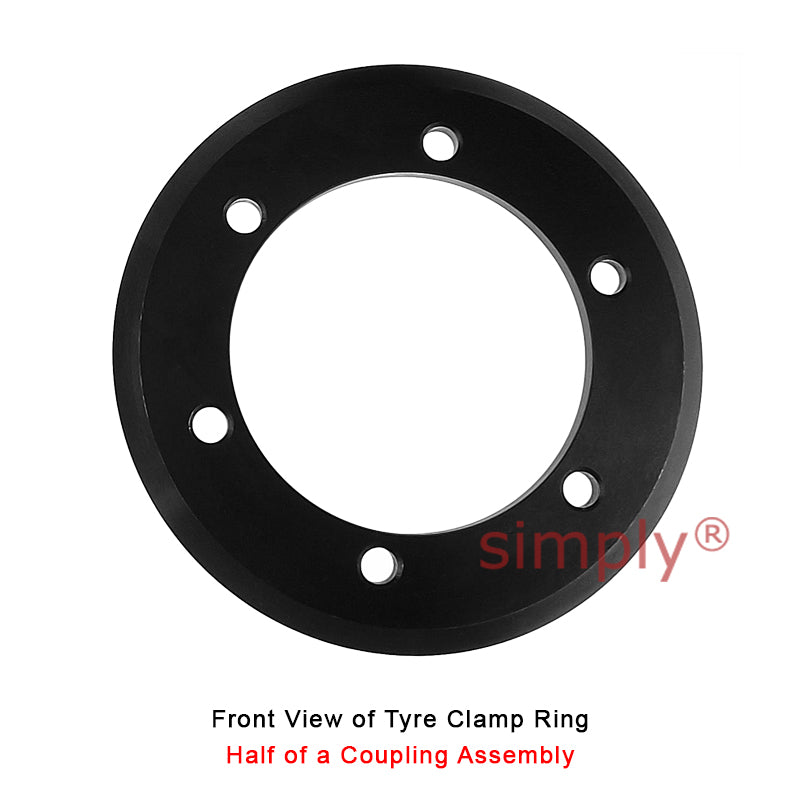

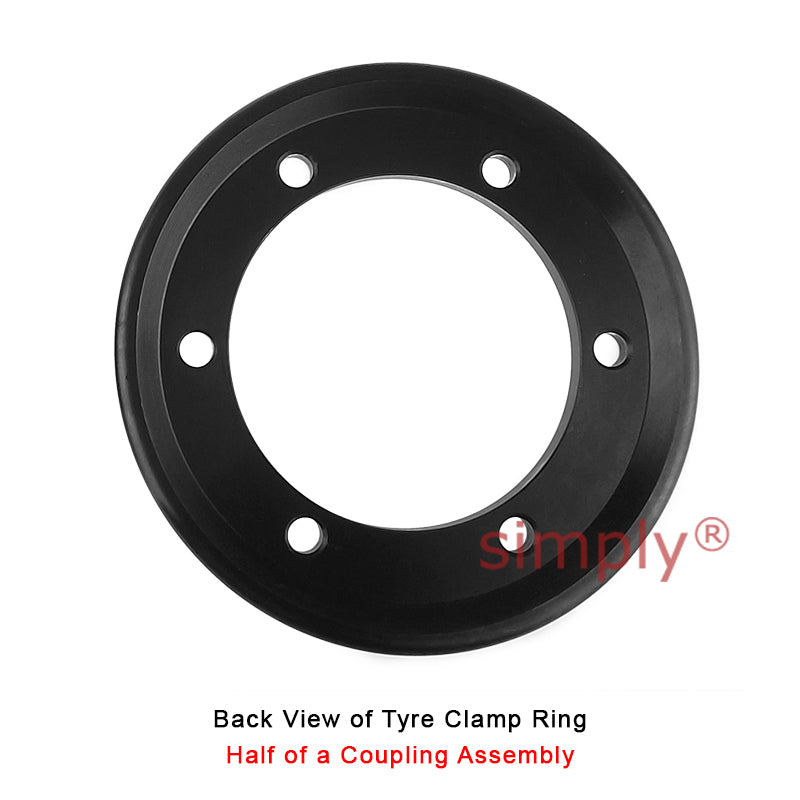

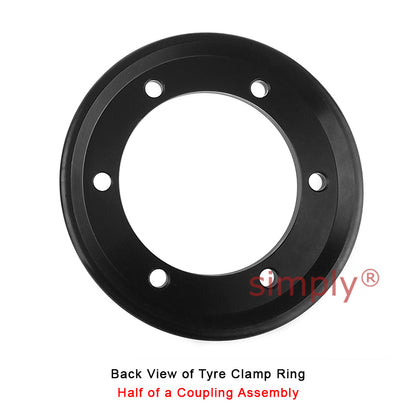

This is a half coupling. You require 2 x flanges and 1 x tyre to create a full coupling. Do you need a Fire Resistant Antistatic (F.R.A.S) rubber tyre. See links below.
Equivalent: F100B
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 80mm
Technical
Technical
| B Type - Max Bore | 80mm |
|---|---|
| B Type - Flange A | 254mm |
| B Type - Flange B | 56mm |
| B Type - Flange C | 216mm |
| B Type - Flange E | 13.5mm |
| B Type - Flange F | 70.5mm |
| B Type - Flange D | 125mm |

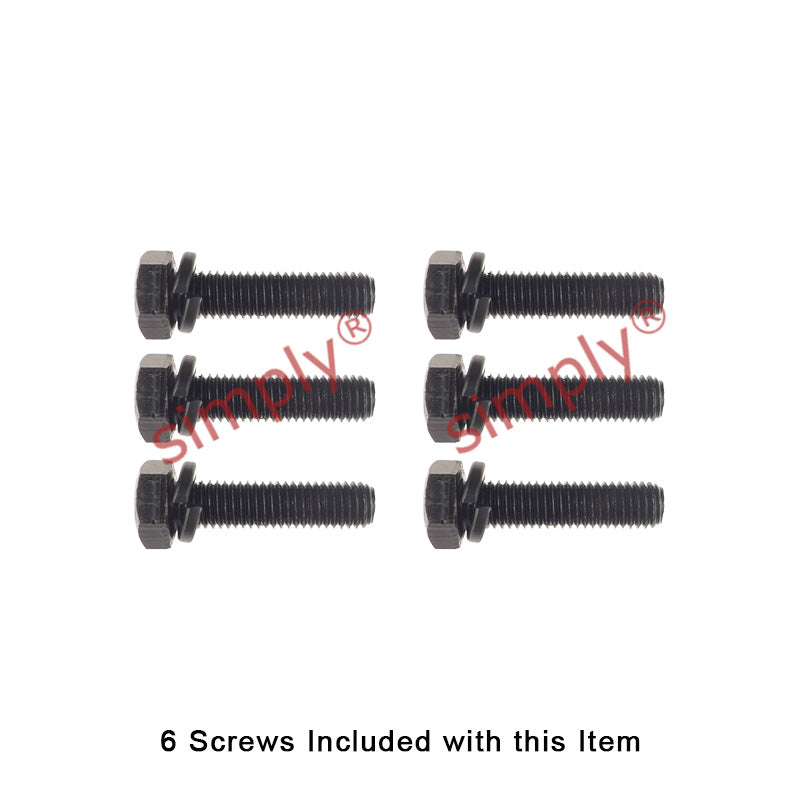

| B Type - Clamping Screws | M12 |
| B Type - Flange Weight | 11.1kg |
| B Type - Inertia | 0.055kgm2 |
| B Type - Flange Face Spacing | 27mm |
| B Type - Gap Between Tyre Ends | 3mm |
| B Type - Nominal Torque | 675 Nm |
| B Type - Max Speed | 2600 rev/min |
| B Type - Max Par Mis | 2.6mm |
| B Type - Max End Float | 3.3mm |
| B Type - Screw Size | M10 |
| B Type - Tigtening Torque | 40 Nm |
| Max Power at 100 rpm | 7.07 kW |
| Max Power at 200 rpm | 14.1 kW |
| Max Power at 300 rpm | 21.2 kW |
| Max Power at 400 rpm | 28.3 kW |
| Max Power at 500 rpm | 35.3 kW |
| Max Power at 600 rpm | 42.4 kW |
| Max Power at 700 rpm | 49.5 kW |
| Max Power at 720 rpm | 50.9 kW |
| Max Power at 800 rpm | 56.5 kW |
| Max Power at 900 rpm | 63.6 kW |
| Max Power at 960 rpm | 67.9 kW |
| Max Power at 1000 rpm | 70.7 kW |
| Max Power at 1200 rpm | 84.8 kW |
| Max Power at 1400 rpm | 99 kW |
| Max Power at 1440 rpm | 102 kW |
| Max Power at 1600 rpm | 113 kW |
| Max Power at 1800 rpm | 127 kW |
| Max Power at 2000 rpm | 141 kW |
| Max Power at 2200 rpm | 155 kW |
| Max Power at 2400 rpm | 170 kW |
| Max Power at 2600 rpm | 184 kW |
| Maximum Speed | 2600 rev/min |
| Nominal Torque | 675 Nm TKN |
| Maximum Torque | 1517 Nm TK MAX |
| Torsional Stiffness | 126 Nm/° |
| Max. Parallel Misalignment | 2.6mm |
| Maximum End Float | 3.3mm ± |
| Approximate Mass | 1.1kg |
| Alternating Torque | 252 ± Nm @ 10Hz TKW |
| Resonance Factor V B | 7 |
| Damping Coefficient Ø | 0.9 |
