SKU: F208-FAG

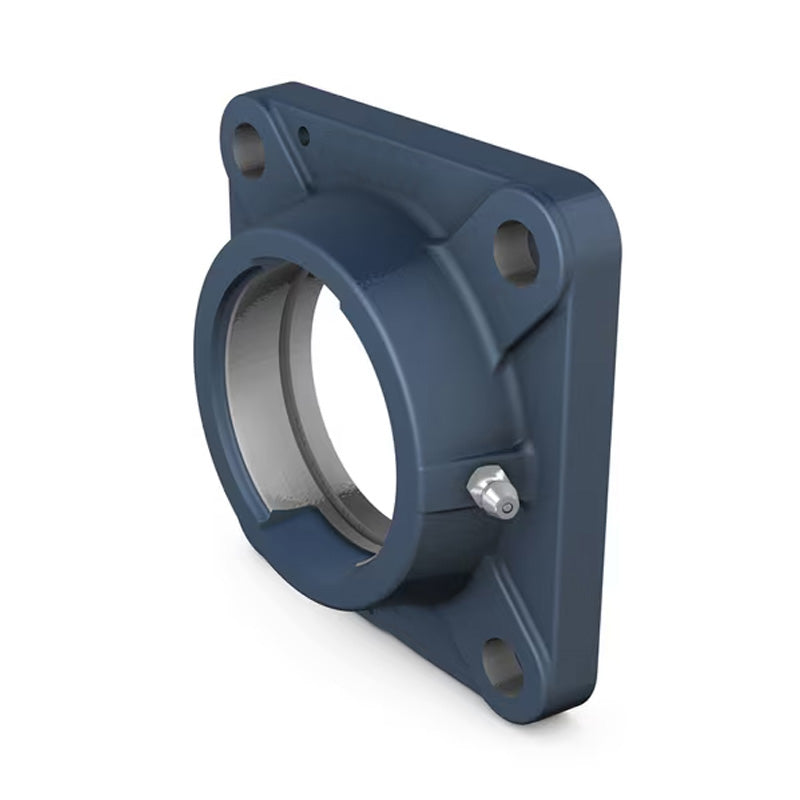

FAG F208 Four Bolt Cast Iron Square Flanged Housing (Insert not included)
FAG F208 Four Bolt Cast Iron Square Flanged Housing (Insert not included)
Regular price
CHF 16.00
ex VAT
Regular price
Sale price
CHF 16.00
ex VAT
In stock
Price Break
10+
CHF 11.97
19+
CHF 11.30
29+
CHF 11.16
39+
CHF 11.03
49+
CHF 10.89
74+
CHF 10.76
99+
CHF 10.09
199+
CHF 9.95
249+
CHF 9.82
499+
CHF 9.68
999+
CHF 9.42
Share this product
Description
Description
FAG F208 Four Bolt Square Housing Unit: This housing unit is not supplied with a bearing insert pre-installed. The inserts (available separately) can be installed into the housings and removed for future replacement as required.
Benefits: Cost effective housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- FAG - High Quality
- Style:
- F
- Bolt Hole Centres:
- 102mm

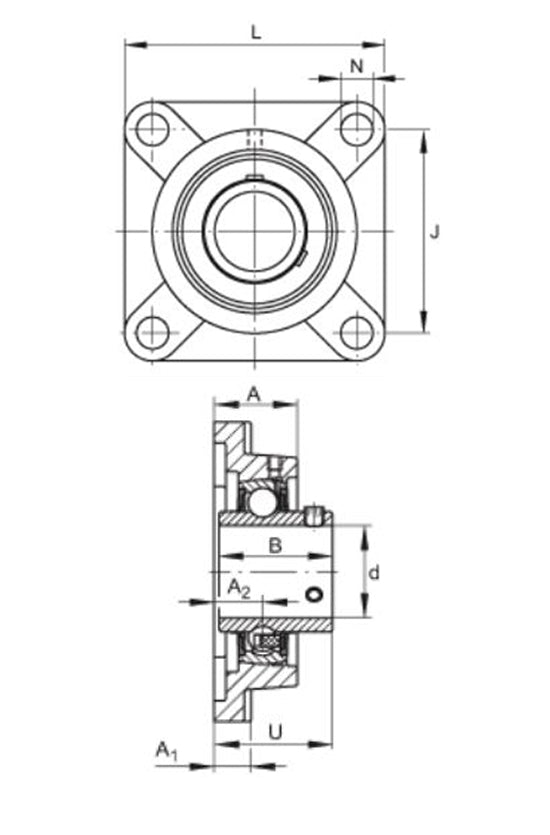

Technical
Technical
| d | 40mm |
|---|---|
| L | 130mm |
| U | 51.2mm |
| A | 36mm |
| A1 | 16mm |
| A2 | 21mm |
| B | 49.2mm |
| J | 102mm |
| N | 16mm |
| Weight | 1.91kg |
