SKU: F4-9G-EU

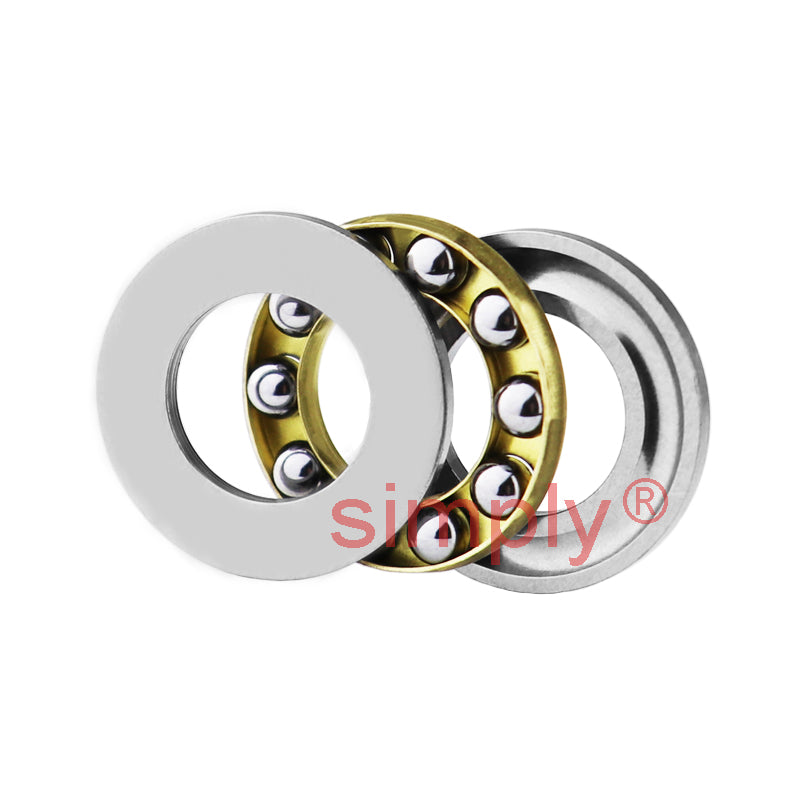

F4-9G Budget Single Thrust Ball Bearing with Grooved Washers 4x9x4mm
F4-9G Budget Single Thrust Ball Bearing with Grooved Washers 4x9x4mm
Regular price
CHF 4.00
ex VAT
Regular price
Sale price
CHF 4.00
ex VAT
In stock
Price Break
10+
CHF 2.39
19+
CHF 2.26
29+
CHF 2.23
39+
CHF 2.20
49+
CHF 2.18
74+
CHF 2.15
99+
CHF 2.02
199+
CHF 1.99
249+
CHF 1.96
499+
CHF 1.94
999+
CHF 1.88
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 4mm
- Outside Diameter:
- 9mm
- Width:
- 4mm
Technical
Technical
| d | 4mm (+0/-0.05mm) |
|---|---|
| D | 9mm (+0.005/-0.020mm) |
| H | 4mm (+0/-0.075mm) |
| d1 | 4.2mm (+0/-0.011mm) |
| D1 | 8.8mm (+0/-0.008mm) |
| r1r2 min | 0.2mm |
| Dynamic load C | 0.922 kN |
| Static load Co | 0.912 kN |
| Limiting speed | 22000 rpm |
| Weight | 0.002 kg |
| Material | Balls & Washers, Chrome Steel, Brass or 304 Stainless Steel Cage |
