SKU: F6-12-EU

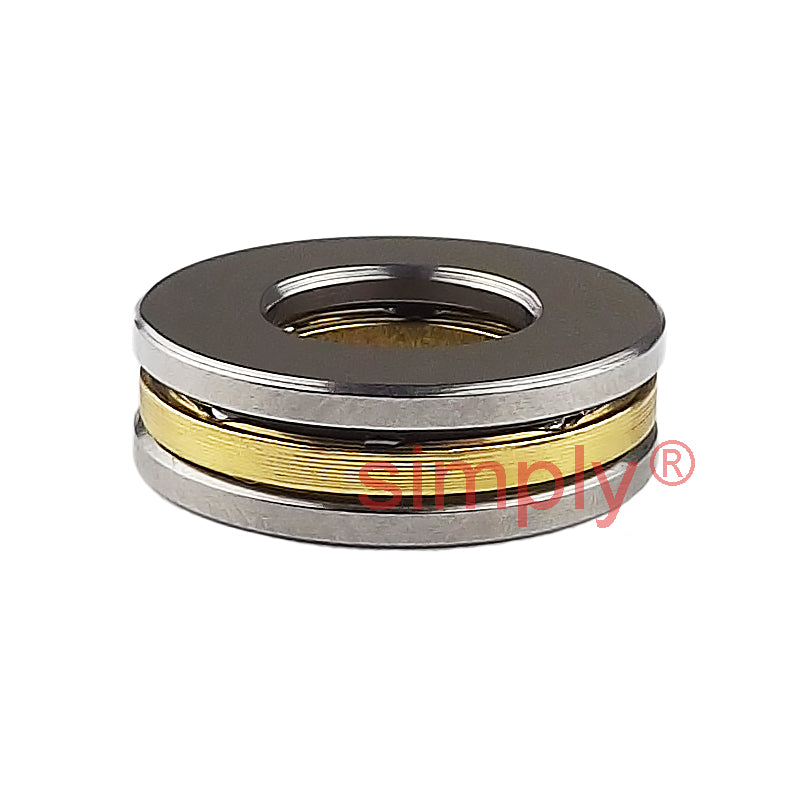

F6-12 Budget Single Thrust Ball Bearing 6x12x4.5mm
F6-12 Budget Single Thrust Ball Bearing 6x12x4.5mm
Regular price
CHF 5.87
ex VAT
Regular price
Sale price
CHF 5.87
ex VAT
In stock
Price Break
10+
CHF 5.22
19+
CHF 4.93
29+
CHF 4.87
39+
CHF 4.81
49+
CHF 4.75
74+
CHF 4.70
99+
CHF 4.40
199+
CHF 4.34
249+
CHF 4.29
499+
CHF 4.23
999+
CHF 4.11
Couldn't load pickup availability
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 12mm
- Width:
- 4.5mm
Technical
Technical
| d | 6mm (+/-0.008mm) |
|---|---|
| D | 12mm (+0/-0.011mm) |
| H | 4.5mm (+0/-0.075mm) |
| r1r2 min | 0.15mm |
| Dynamic load C | 0.38 kN |
| Static load Co | 0.3 kN |
| Weight | 0.0025 kg |
| Limiting Speed | 18000 rpm |
| Lubrication | Light Oil AF2 |
| Material | Balls & Washers, Chrome Steel, Brass or 304 Stainless Steel Cage |
