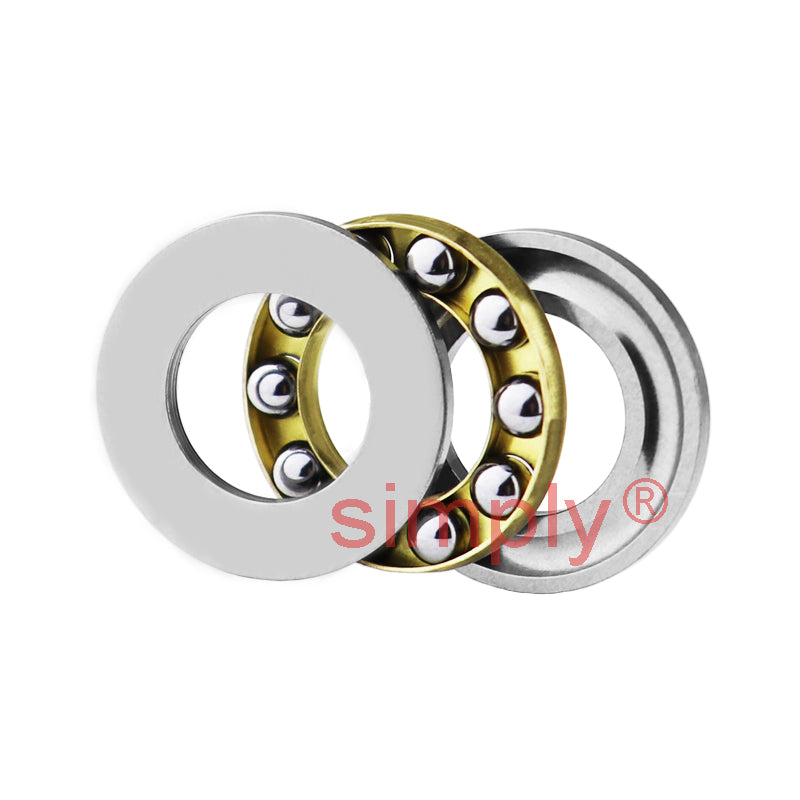

F9-17G Budget Single Thrust Ball Bearing with Grooved Washers 9x17x5mm

Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly

Brand / Quality:

EU Budget - Economy Quality

Inside Diameter:

9mm

Outside Diameter:

17mm

Width:

5mm
