SKU: FB-03-DUN

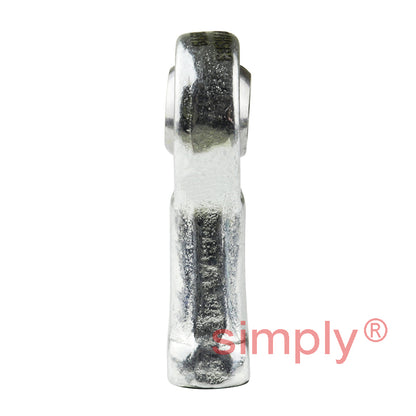

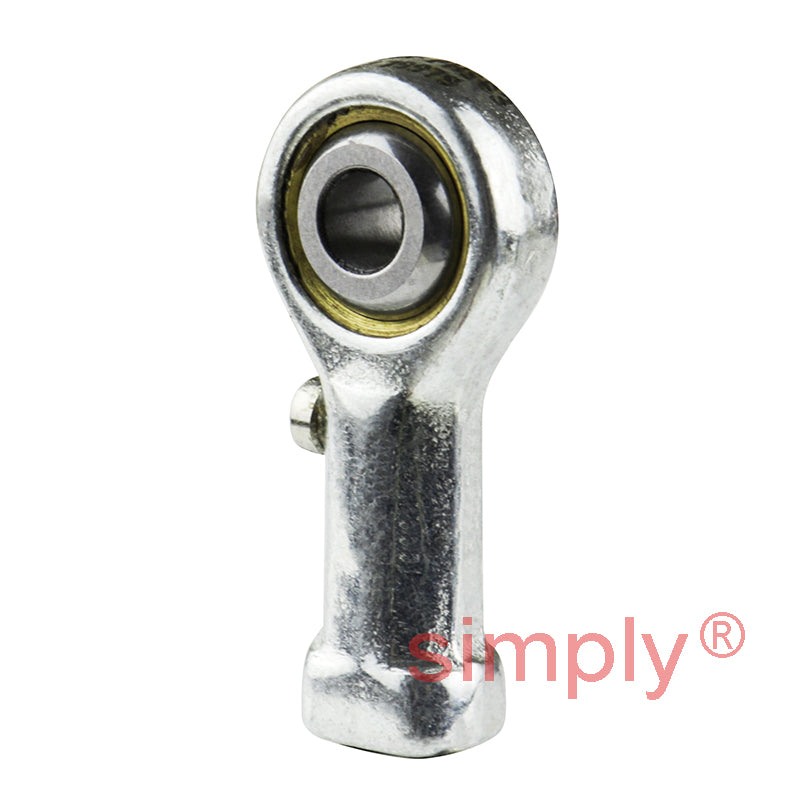

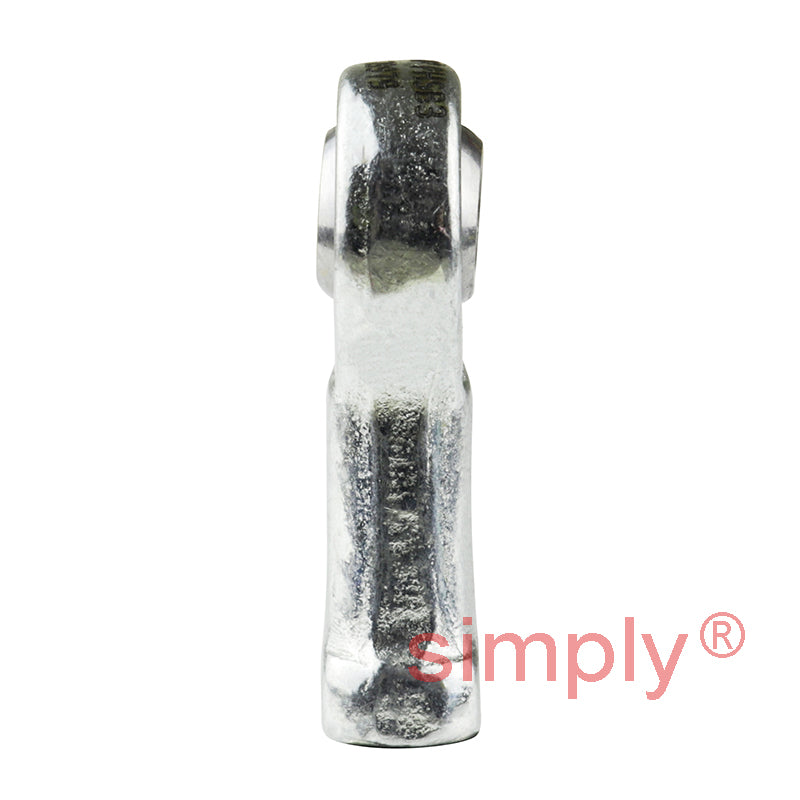

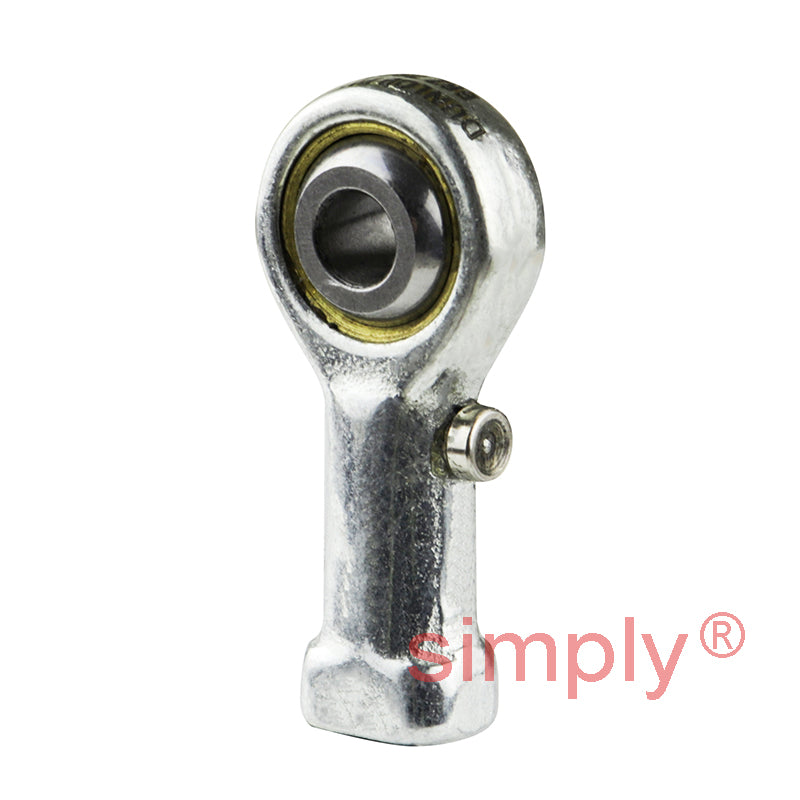

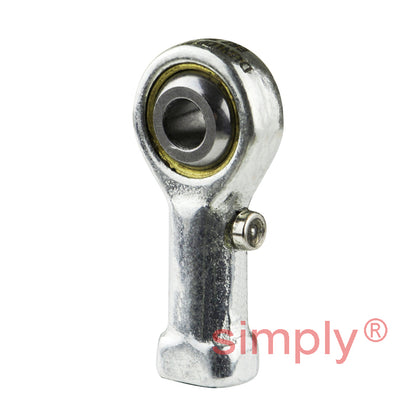

Dunlop FB-03 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 3/16 UNF Thread - Allow 7-10 Days
Dunlop FB-03 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 3/16 UNF Thread - Allow 7-10 Days
Regular price
CHF 11.55
ex VAT
Regular price
Sale price
CHF 11.55
ex VAT
In stock
Price Break
10+
CHF 10.28
19+
CHF 9.70
29+
CHF 9.59
39+
CHF 9.47
49+
CHF 9.36
74+
CHF 9.24
99+
CHF 8.66
199+
CHF 8.55
249+
CHF 8.43
499+
CHF 8.32
999+
CHF 8.09
Couldn't load pickup availability
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- 3/16 UNF
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 3/16 inch |
|---|---|
| Thread | 3/16 UNF |
| W | 0.312 inch |
| H | 0.25 inch |
| D | 0.625 inch |
| L1 | 1.062 inch |
| L2 | 0.562 inch |
| O | 0.306 inch |
| AF | 0.312 inch |
| Static load | 6360 N |
