SKU: FB-04S-DUN

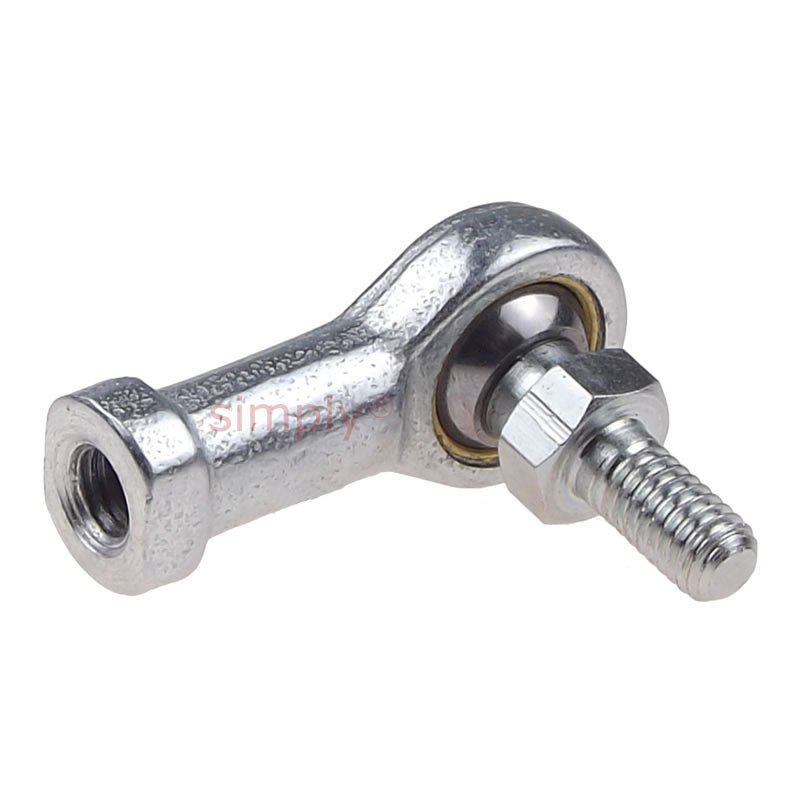

Dunlop FB-04S Right Hand Imperial Steel / Bronze Lined Maintenance Required Studded Female Rod End 1/4 UNF Thread
Dunlop FB-04S Right Hand Imperial Steel / Bronze Lined Maintenance Required Studded Female Rod End 1/4 UNF Thread
Regular price
CHF 15.47
ex VAT
Regular price
Sale price
CHF 15.47
ex VAT
In stock
Price Break
10+
CHF 13.77
19+
CHF 12.99
29+
CHF 12.84
39+
CHF 12.69
49+
CHF 12.53
74+
CHF 12.38
99+
CHF 11.60
199+
CHF 11.45
249+
CHF 11.29
499+
CHF 11.14
999+
CHF 10.83
Couldn't load pickup availability
Description
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- 1/4 UNF
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Stud size | 1/4 UNF |
|---|---|
| Thread | 1/4 UNF |
| A | 0.562 inch |
| B | 0.485 inch |
| C | 0.5 inch |
| K | 0.375 inch |
| Static load | 1930 N |
