SKU: FB-06-DUN

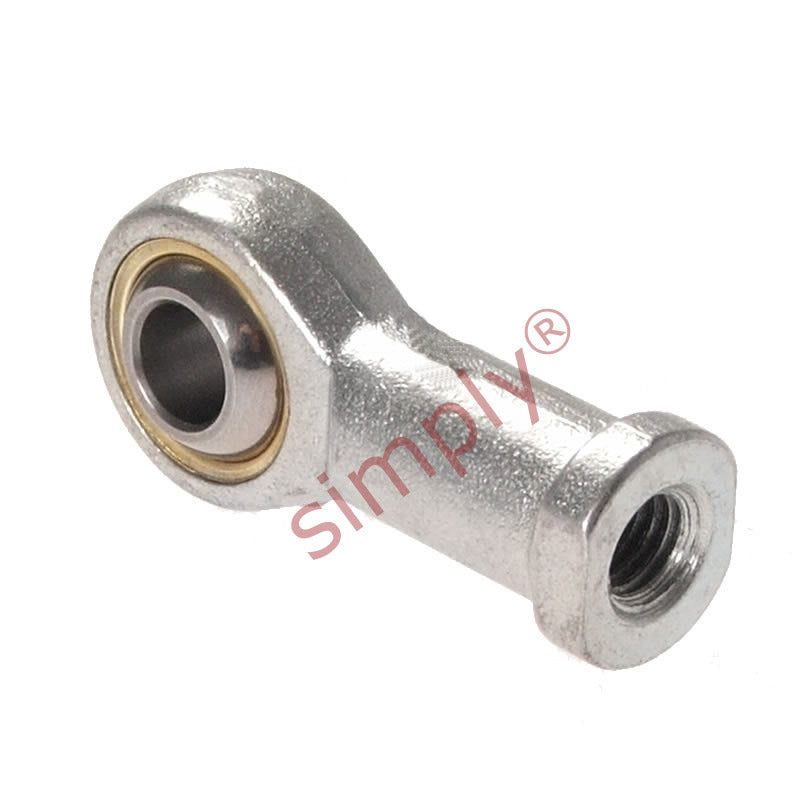

Dunlop FB-06 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 3/8 UNF Thread
Dunlop FB-06 Right Hand Imperial Steel / Bronze Lined Maintenance Required Plain Female Rod End 3/8 UNF Thread
Regular price
CHF 14.19
ex VAT
Regular price
Sale price
CHF 14.19
ex VAT
In stock
Price Break
10+
CHF 12.63
19+
CHF 11.92
29+
CHF 11.78
39+
CHF 11.64
49+
CHF 11.49
74+
CHF 11.35
99+
CHF 10.64
199+
CHF 10.50
249+
CHF 10.36
499+
CHF 10.22
999+
CHF 9.93
Couldn't load pickup availability
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- 3/8 UNF
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 3/8 inch |
|---|---|
| Thread | 3/8 UNF |
| W | 0.5 inch |
| H | 0.406 inch |
| D | 1 inch |
| L1 | 1.625 inch |
| L2 | 0.932 inch |
| O | 0.516 inch |
| AF | 0.562 inch |
| Static load | 13640 N |
