SKU: FB-M05S-MB

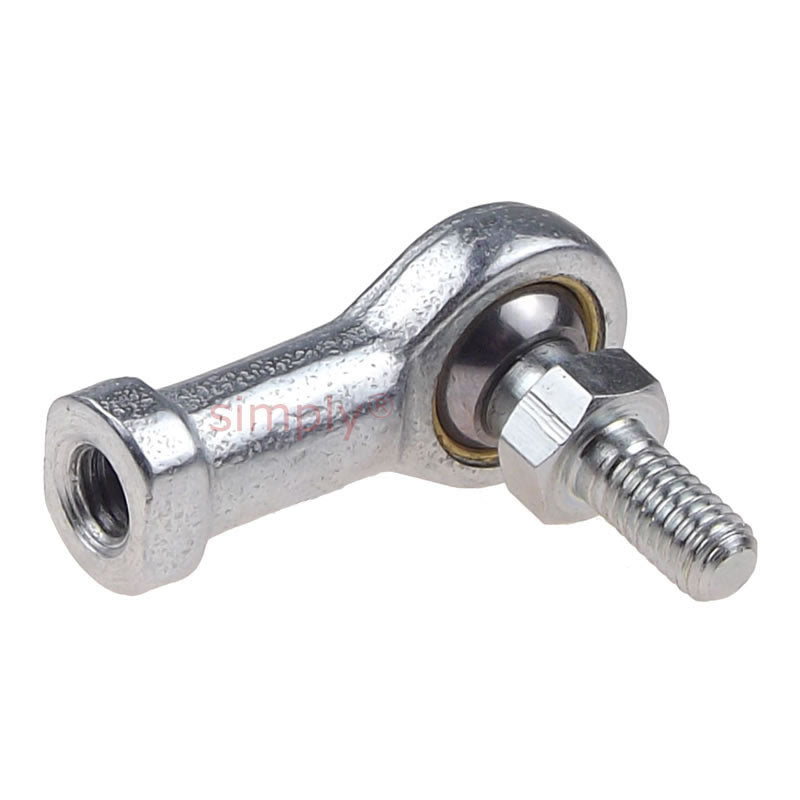

Branded FB-M05S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M5x0.8 Thread
Branded FB-M05S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M5x0.8 Thread
Regular price
CHF 13.00
ex VAT
Regular price
Sale price
CHF 13.00
ex VAT
Equivalent to: PHS5+STUD
In stock
Price Break
10+
CHF 9.60
19+
CHF 9.06
29+
CHF 8.95
39+
CHF 8.84
49+
CHF 8.73
74+
CHF 8.63
99+
CHF 8.09
199+
CHF 7.98
249+
CHF 7.87
499+
CHF 7.76
999+
CHF 7.55
Description
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
Equivalent: PHS5+STUD
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M5x0.8
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Stud size | M5 |
|---|---|
| Thread | M5x0.8 |
| A | 10mm |
| B | 10mm |
| C | 8mm |
| K | 9mm |
| Static load | 1200 N |
