SKU: FB-M08S-MB

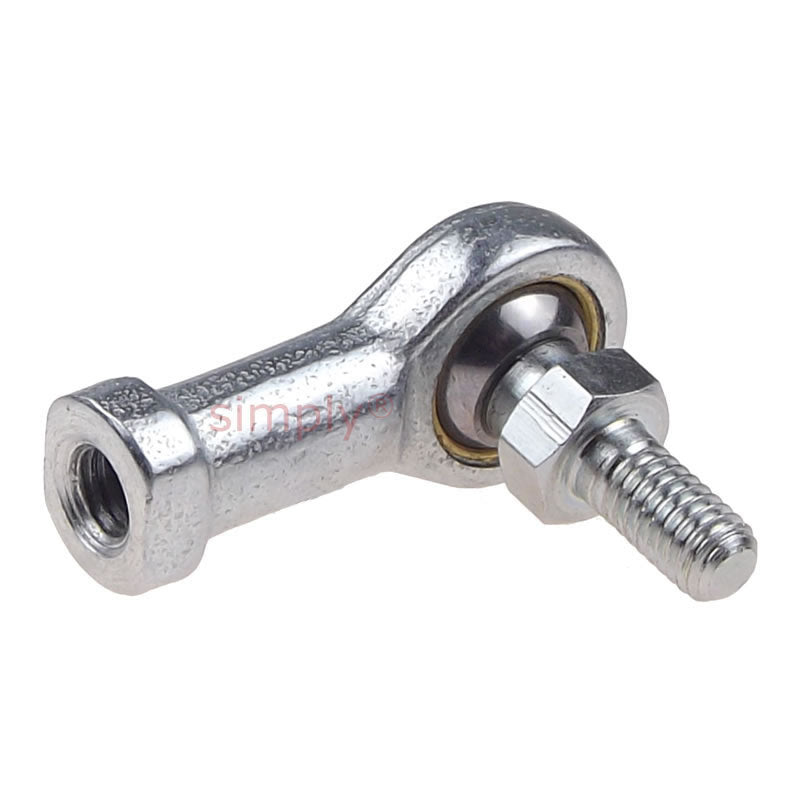

Branded FB-M08S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M8x1.25 Thread

Name: Branded FB-M08S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M8x1.25 Thread
Brand: Major Brand
SKU: FB-M08S-MB
Price: 17.00 CHF
Availability: InStock

CHF 17.00 ex VAT

Sale Sold out

Equivalent to: PHS8+STUD

In stock

Price Break

10+ CHF 12.79

19+ CHF 12.07

29+ CHF 11.93

39+ CHF 11.78

49+ CHF 11.64

74+ CHF 11.50

99+ CHF 10.78

199+ CHF 10.63

249+ CHF 10.49

499+ CHF 10.35

999+ CHF 10.06

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear).
Benefits: Low friction, extended wear life

Equivalent: PHS8+STUD

Brand / Quality:: Major Brand - High Quality
Thread Size:: M8x1.25
Thread M / F:: Female
Thread Direction:: Right Hand
Material:: Bronze Lined

Technical

Stud size	M8
Thread	M8x1.25
A	16mm
B	16mm
C	14mm
K	13mm
Static load	3190 N
