SKU: FB-M16CG-DUN

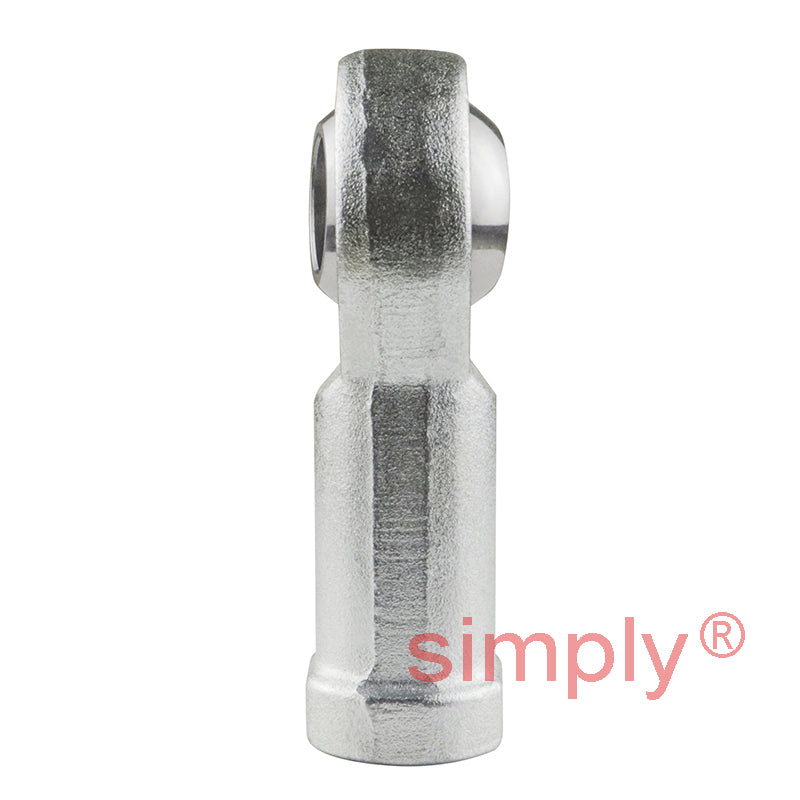

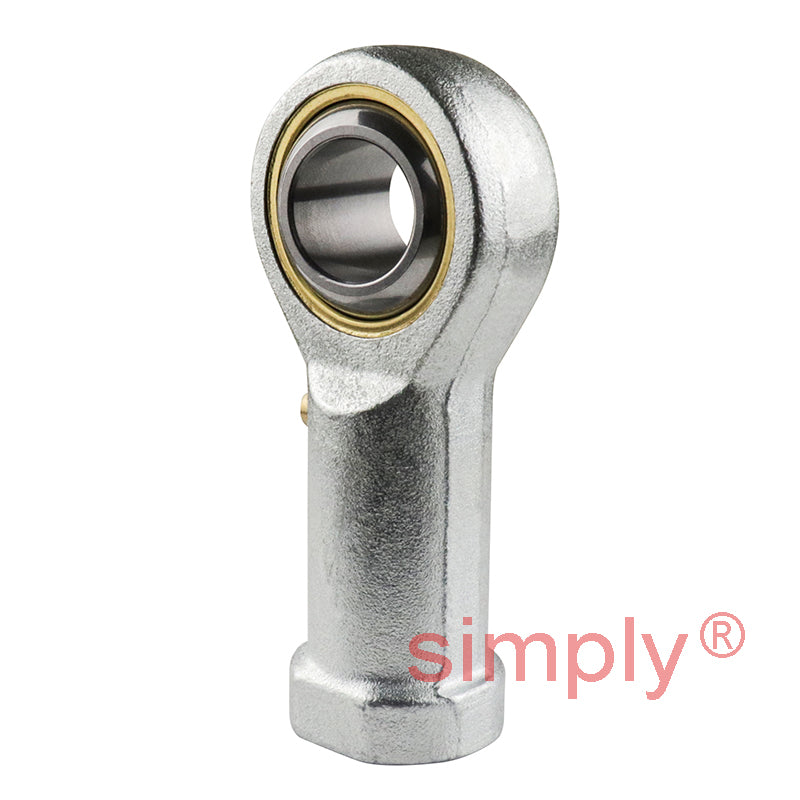

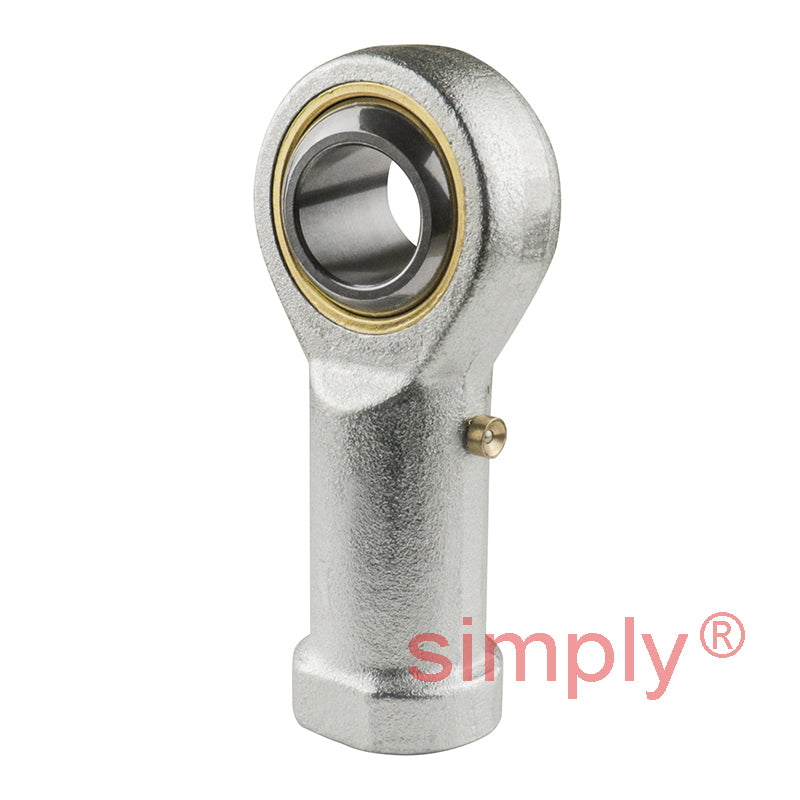

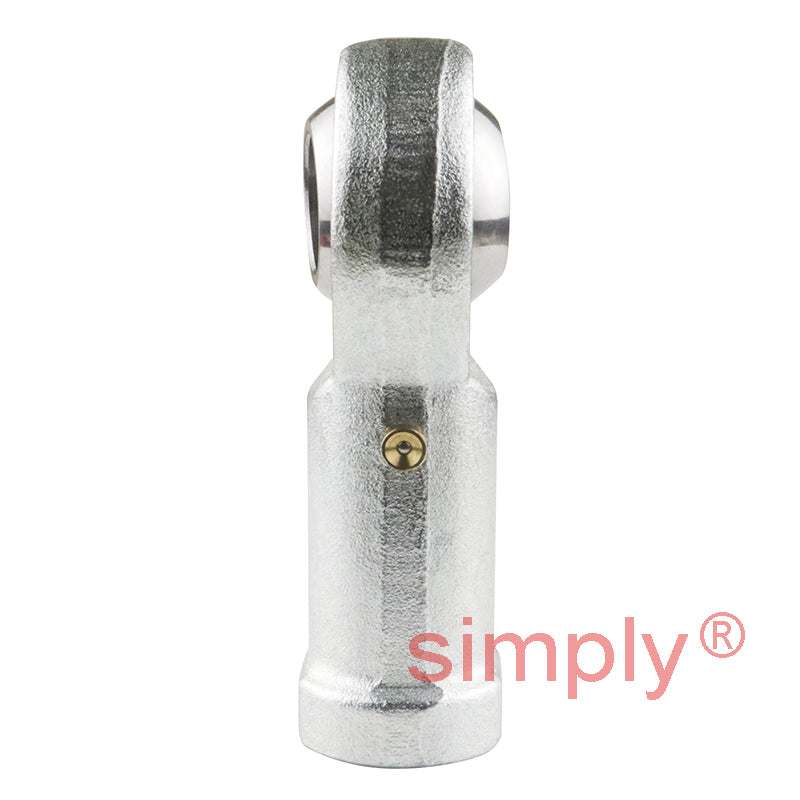

Dunlop FB-16CG Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M16x1.6 Thread
Dunlop FB-16CG Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M16x1.6 Thread
Regular price
CHF 19.91
ex VAT
Regular price
Sale price
CHF 19.91
ex VAT
In stock
Price Break
10+
CHF 17.72
19+
CHF 16.72
29+
CHF 16.53
39+
CHF 16.33
49+
CHF 16.13
74+
CHF 15.93
99+
CHF 14.93
199+
CHF 14.73
249+
CHF 14.53
499+
CHF 14.34
999+
CHF 13.94
Couldn't load pickup availability
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- M16x1.6
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 16mm |
|---|---|
| Thread | M16x1.6 |
| W | 21mm |
| H | 15mm |
| D | 42mm |
| L1 | 64mm |
| L2 | 28mm |
| O | 22mm |
| AF | 22mm |
| Static load | 0.675 N |
