SKU: FB-M16S-MB

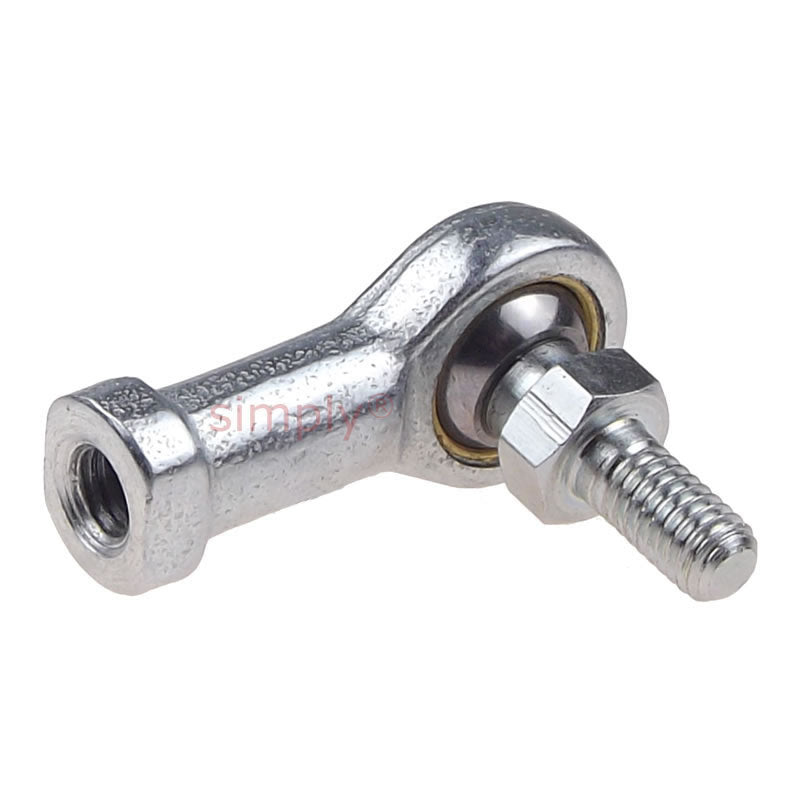

Branded FB-M16S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M16x2 Thread
Branded FB-M16S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M16x2 Thread
Regular price
CHF 30.00
ex VAT
Regular price
Sale price
CHF 30.00
ex VAT
Equivalent to: PHS16+STUD
In stock
Price Break
10+
CHF 23.49
19+
CHF 22.17
29+
CHF 21.90
39+
CHF 21.64
49+
CHF 21.38
74+
CHF 21.11
99+
CHF 19.79
199+
CHF 19.53
249+
CHF 19.26
499+
CHF 19.00
999+
CHF 18.47
Description
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
Equivalent: PHS16+STUD
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M16x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Stud size | M16 |
|---|---|
| Thread | M16x2 |
| A | 32mm |
| B | 32mm |
| C | 29mm |
| K | 24mm |
| Static load | 9000 N |
