SKU: FBL-M12S-MB

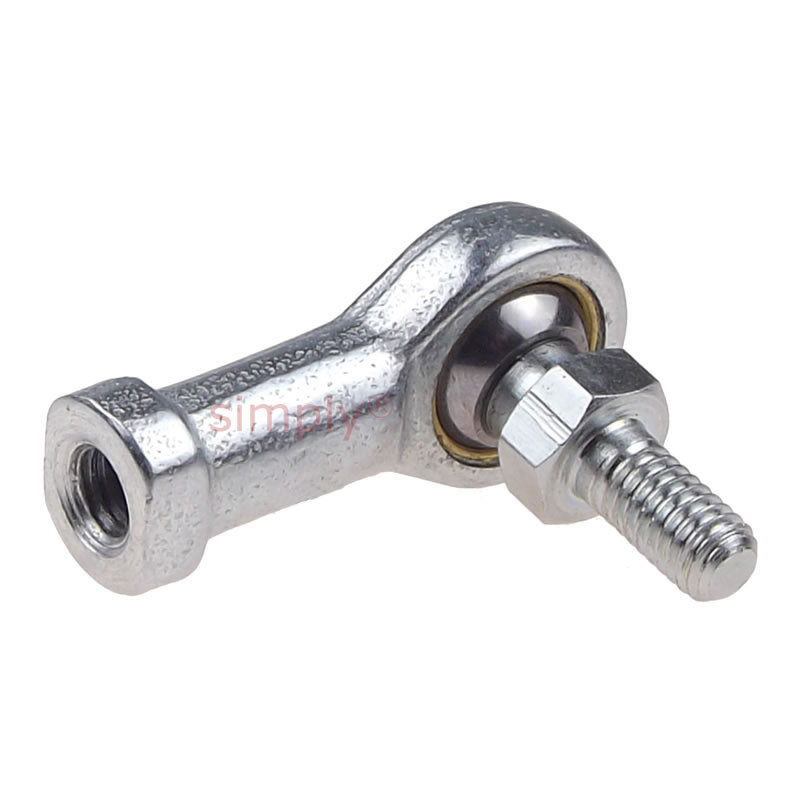

Branded FBL-M12S Left Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M12x1.75 Thread

Name: Branded FBL-M12S Left Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M12x1.75 Thread
Brand: Major Brand
SKU: FBL-M12S-MB
Price: 22.00 CHF
Availability: InStock

CHF 22.00 ex VAT

Sale Sold out

Equivalent to: PHS12L+STUD

In stock

Price Break

10+ CHF 17.19

19+ CHF 16.22

29+ CHF 16.03

39+ CHF 15.84

49+ CHF 15.64

74+ CHF 15.45

99+ CHF 14.48

199+ CHF 14.29

249+ CHF 14.10

499+ CHF 13.90

999+ CHF 13.52

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear).
Benefits: Low friction, extended wear life

Equivalent: PHS12L+STUD

Brand / Quality:: Major Brand - High Quality
Thread Size:: M12x1.75
Thread M / F:: Female
Thread Direction:: Left Hand
Material:: Bronze Lined

Technical

Stud size	M12
Thread	M12x1.75
A	24mm
B	24mm
C	21mm
K	19mm
Static load	5720 N
