SKU: FC1.3/4EC-RHP

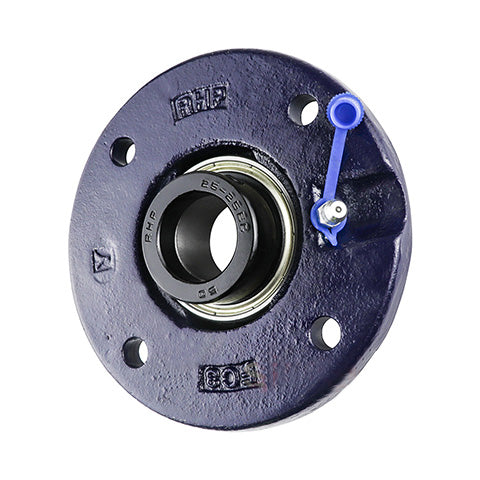

RHP FC1.3/4EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/4 inch Insert
RHP FC1.3/4EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 1-3/4 inch Insert
Regular price
CHF 106.50
ex VAT
Regular price
Sale price
CHF 106.50
ex VAT
In stock
Price Break
10+
CHF 94.79
19+
CHF 89.46
29+
CHF 88.40
39+
CHF 87.33
49+
CHF 86.27
74+
CHF 85.20
99+
CHF 79.88
199+
CHF 78.81
249+
CHF 77.75
499+
CHF 76.68
999+
CHF 74.55
Couldn't load pickup availability
Description
Description
|
RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- FC
- Pitch Circle Diameter:
- 129.997mm = 5.118 inch
Technical
Technical
| Bore | 1-3/4 inch |
|---|---|
| L | 6.102 inch |
| H | 4.134 inch |
| J | 5.118 inch |
| G | 0.5 inch |
| A | 0.984 inch |
| A2 | 1.204 inch |
| A5 | 0.472 inch |
| B2 | 1.718 inch |
| s2 | 0.845 inch |
| d2 | 2.5 inch |
| Dynamic load | 32500 N |
| Static load | 20500 N |
| Rec max speed | 3400 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1250-1-3/4ECG+insonly">1250-1-3/4ECG Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
