SKU: FC20-RHP

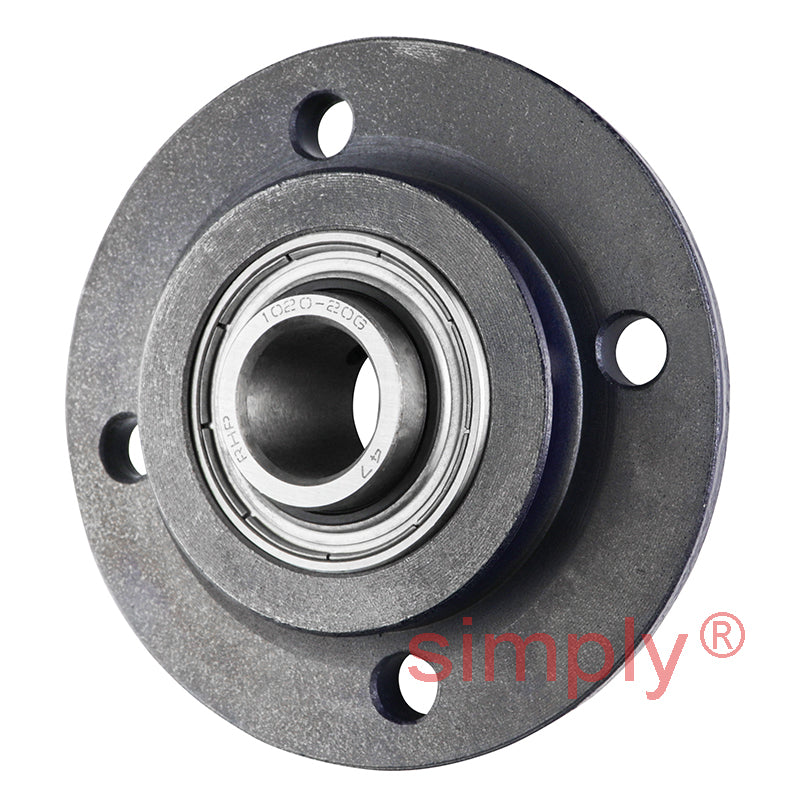

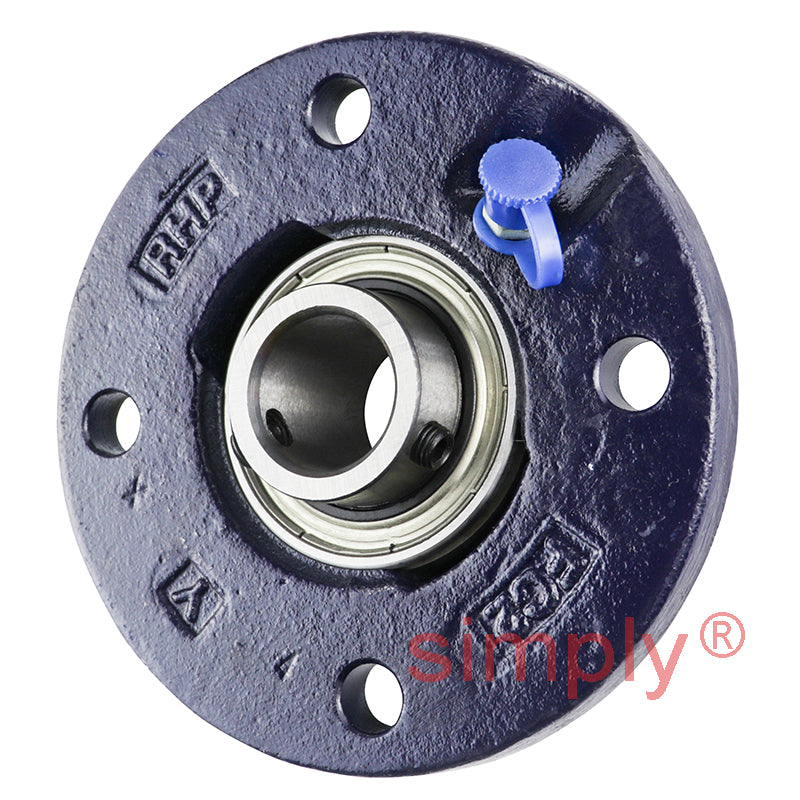

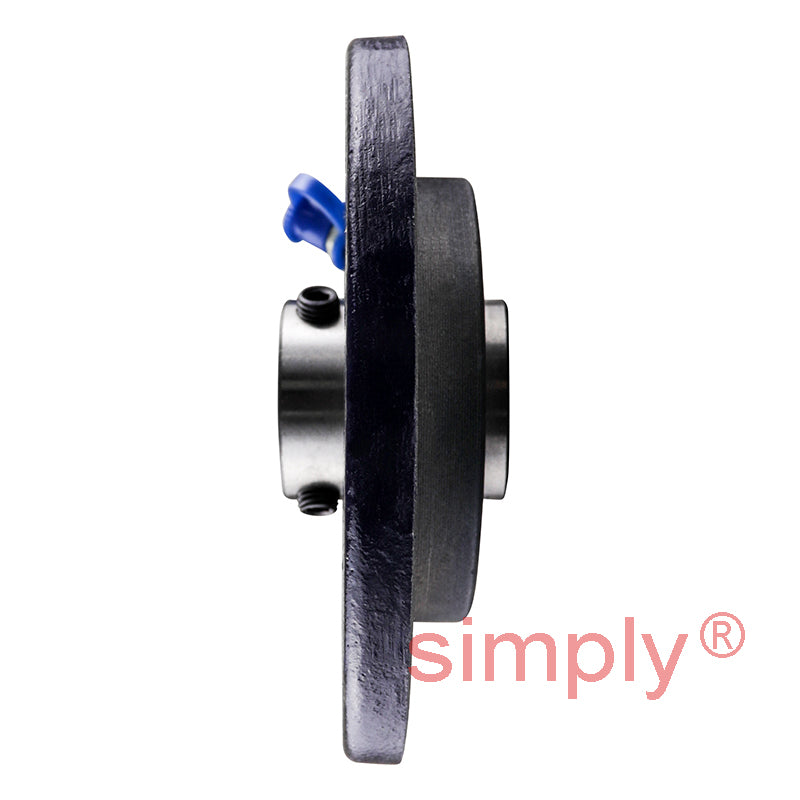

RHP FC20-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
RHP FC20-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
Regular price
CHF 43.00
ex VAT
Regular price
Sale price
CHF 43.00
ex VAT
In stock
Price Break
10+
CHF 33.73
20+
CHF 31.83
30+
CHF 31.45
40+
CHF 31.07
50+
CHF 30.70
75+
CHF 30.32
100+
CHF 28.42
200+
CHF 28.04
250+
CHF 27.66
500+
CHF 27.28
1000+
CHF 26.53
Share this product
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- FC
- Pitch Circle Diameter:
- 78mm
Technical
Technical
| Bore | 20mm |
|---|---|
| L | 100mm |
| H | 62mm |
| J | 78mm |
| G | 8mm |
| A | 17mm |
| A1 | 16.29mm |
| A5 | 8mm |
| B | 30.96mm |
| s | 12.75mm |
| d1 | 28.5mm |
| Dynamic load | 12800 N |
| Static load | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-20G+insonly">1020-20G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
