SKU: FC20EC-RHP

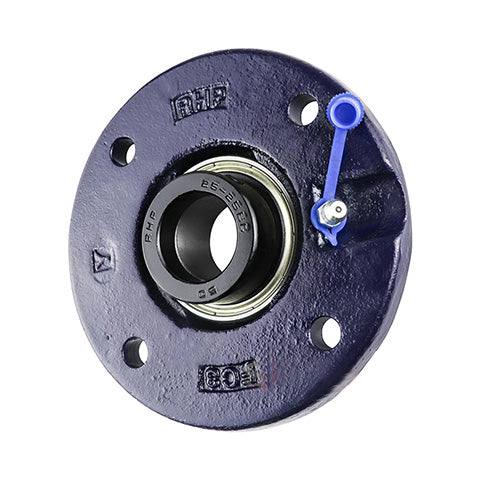

RHP FC20EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
RHP FC20EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 20mm Insert
Regular price
CHF 46.00
ex VAT
Regular price
Sale price
CHF 46.00
ex VAT
In stock
Price Break
10+
CHF 36.02
20+
CHF 34.00
30+
CHF 33.60
40+
CHF 33.19
50+
CHF 32.79
75+
CHF 32.38
100+
CHF 30.36
200+
CHF 29.95
250+
CHF 29.55
500+
CHF 29.14
1000+
CHF 28.33
Share this product
Description
Description
|
RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- FC
- Pitch Circle Diameter:
- 78mm
Technical
Technical
| Bore | 20mm |
|---|---|
| L | 100mm |
| H | 62mm |
| J | 78mm |
| G | 8mm |
| A | 17mm |
| A2 | 21.45mm |
| A5 | 8mm |
| B2 | 30.92mm |
| s2 | 17.12mm |
| d2 | 33.3mm |
| Dynamic load | 12800 N |
| Static load | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1220-20ECG+insonly">1220-20ECG Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
