SKU: FC25-RHP

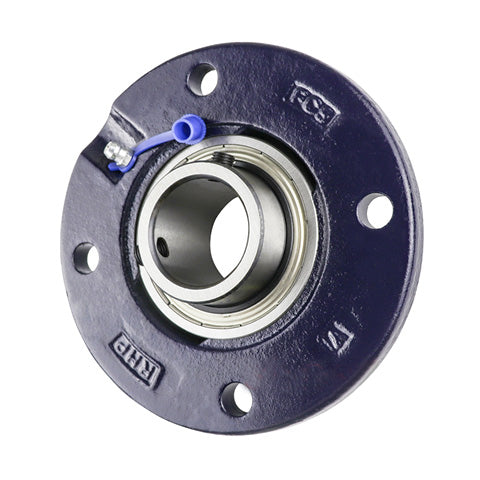

RHP FC25-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
RHP FC25-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
Regular price
CHF 51.00
ex VAT
Regular price
Sale price
CHF 51.00
ex VAT
In stock
Price Break
10+
CHF 40.16
20+
CHF 37.90
30+
CHF 37.45
40+
CHF 37.00
50+
CHF 36.55
75+
CHF 36.09
100+
CHF 33.84
200+
CHF 33.39
250+
CHF 32.94
500+
CHF 32.49
1000+
CHF 31.58
Share this product
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- FC
- Pitch Circle Diameter:
- 90mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 115mm |
| H | 70mm |
| J | 90mm |
| G | 8mm |
| A | 19mm |
| A1 | 17.34mm |
| A5 | 9mm |
| B | 34.11mm |
| s | 14.32mm |
| d1 | 34.01mm |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-25G+insonly">1025-25G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
