SKU: FC25A-RHP

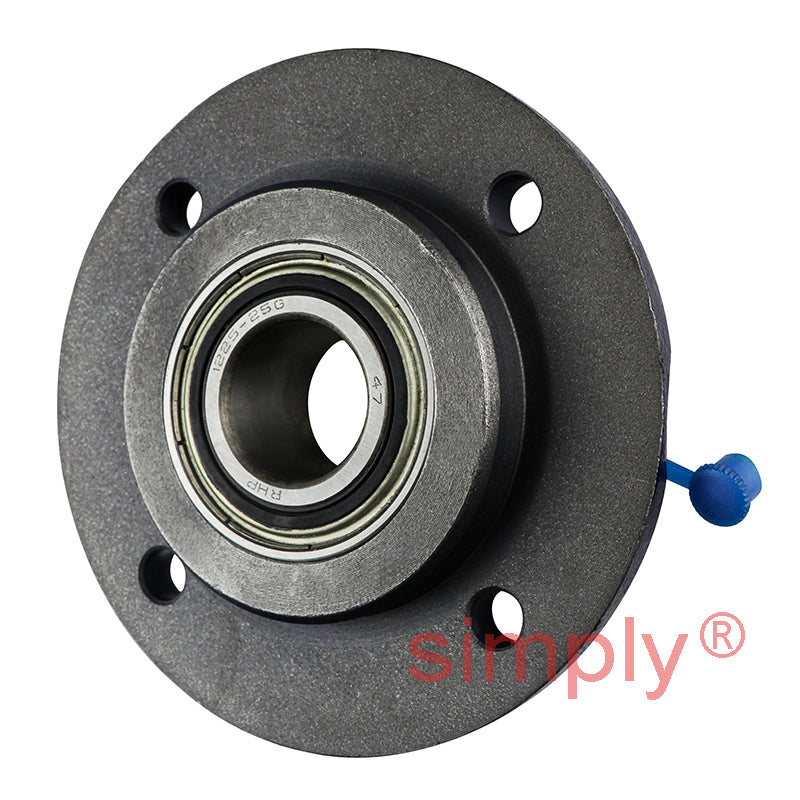

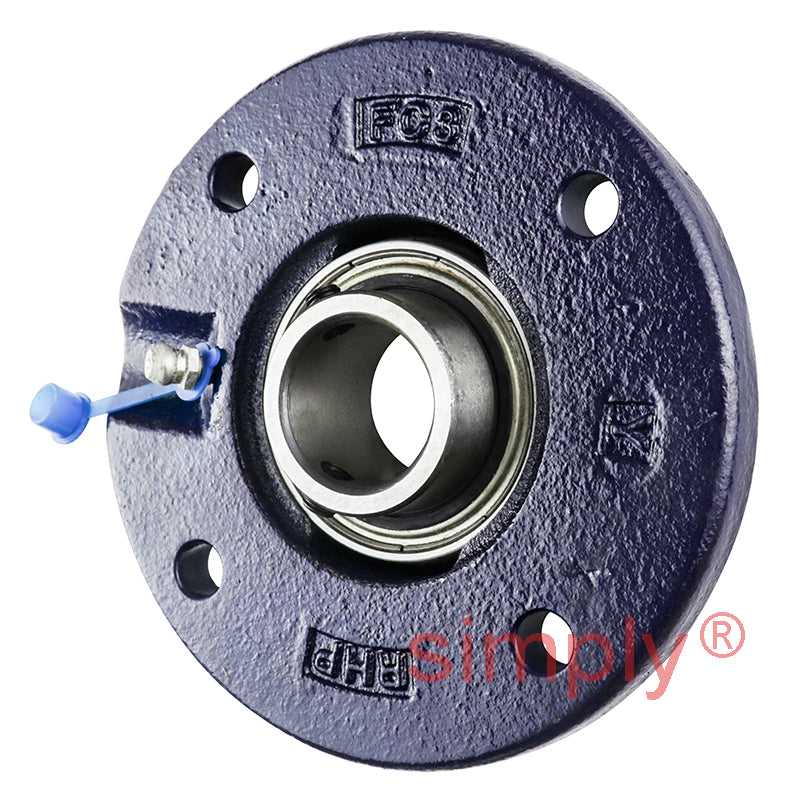

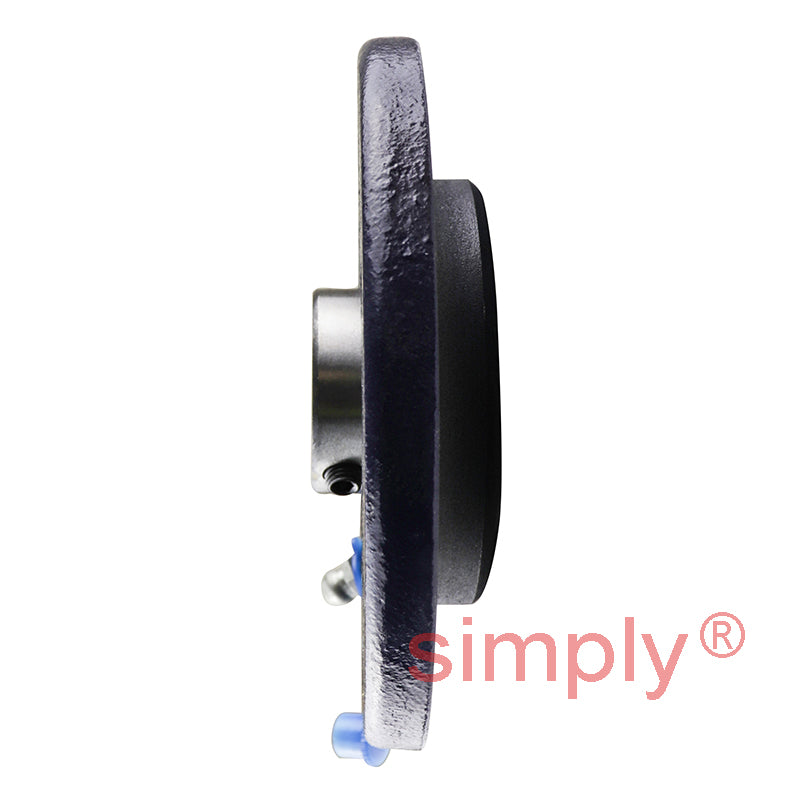

RHP FC25A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
RHP FC25A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 25mm Insert
Regular price
CHF 50.61
ex VAT
Regular price
Sale price
CHF 50.61
ex VAT
In stock
Price Break
10+
CHF 45.04
19+
CHF 42.51
29+
CHF 42.01
39+
CHF 41.50
49+
CHF 40.99
74+
CHF 40.49
99+
CHF 37.96
199+
CHF 37.45
249+
CHF 36.95
499+
CHF 36.44
999+
CHF 35.43
Couldn't load pickup availability
Description
Description
|
RHP FC A Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- FC
- Pitch Circle Diameter:
- 90mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 115mm |
| H | 70mm |
| J | 90mm |
| G | 8mm |
| A | 19mm |
| A1 | 17.34mm |
| A5 | 9mm |
| B1 | 27.35mm |
| s1 | 7.56mm |
| d1 | 34.01mm |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1225-25AG+insonly">1225-25AG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
