SKU: FC30-RHP

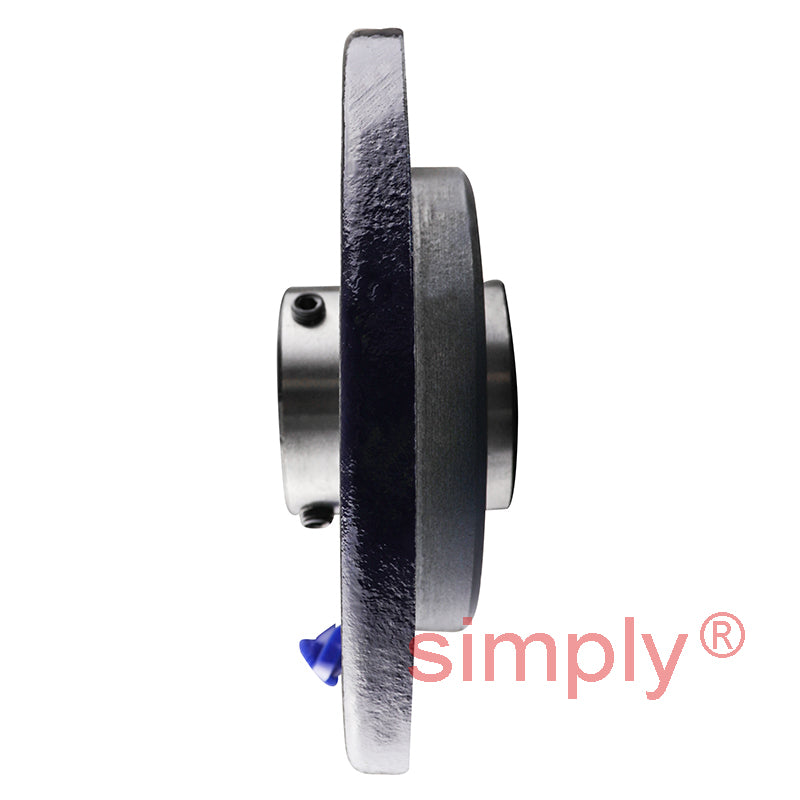

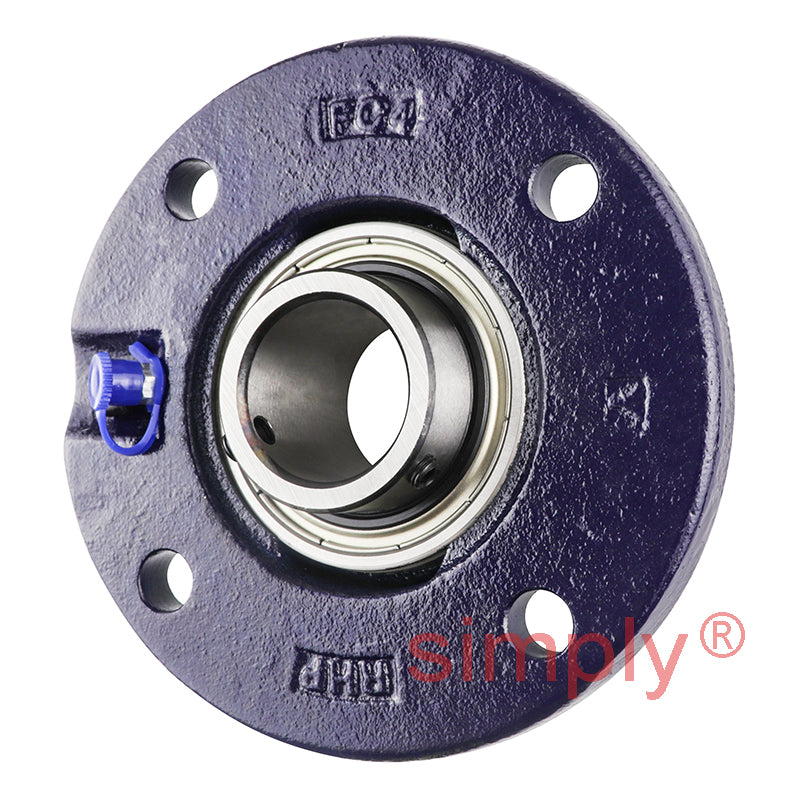

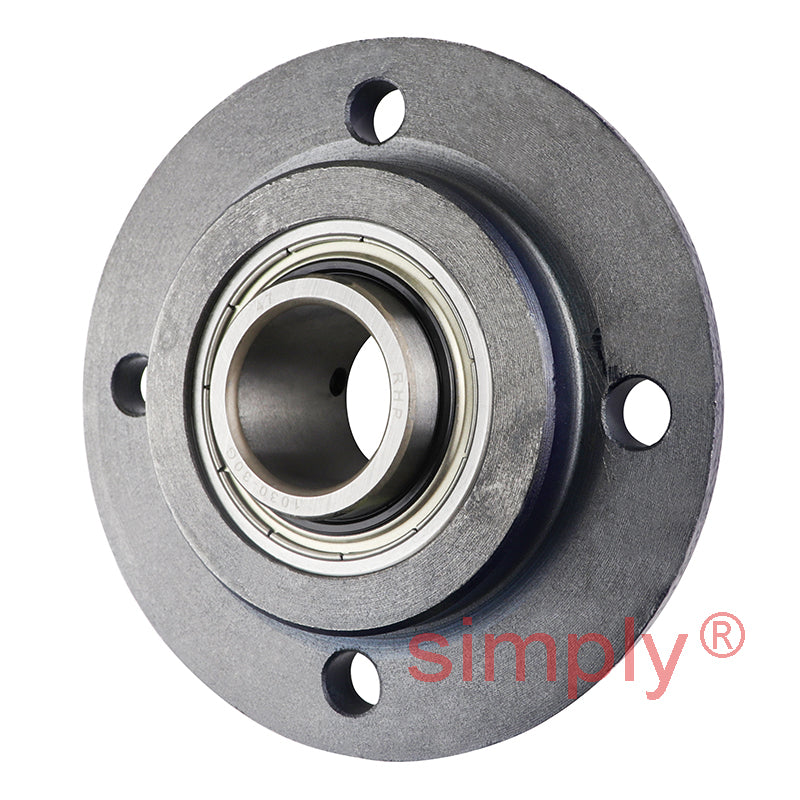

RHP FC30-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
RHP FC30-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
Regular price
CHF 60.00
ex VAT
Regular price
Sale price
CHF 60.00
ex VAT
In stock
Price Break
10+
CHF 47.64
20+
CHF 44.96
30+
CHF 44.43
40+
CHF 43.89
50+
CHF 43.36
75+
CHF 42.82
100+
CHF 40.15
200+
CHF 39.61
250+
CHF 39.08
500+
CHF 38.54
1000+
CHF 37.47
Share this product
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Style:
- FC
- Pitch Circle Diameter:
- 100mm
Technical
Technical
| Bore | 30mm |
|---|---|
| L | 125mm |
| H | 80mm |
| J | 100mm |
| G | 10mm |
| A | 20.5mm |
| A1 | 20.22mm |
| A5 | 9.5mm |
| B | 38.1mm |
| s | 15.93mm |
| d1 | 40mm |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-30G+insonly">1030-30G Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
