SKU: FC30DEC-RHP

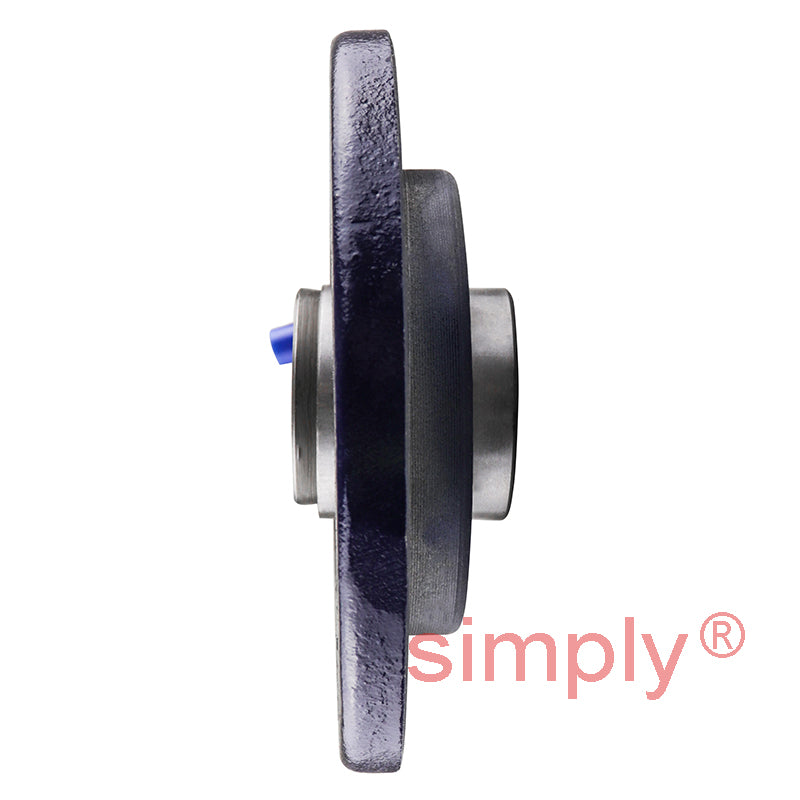

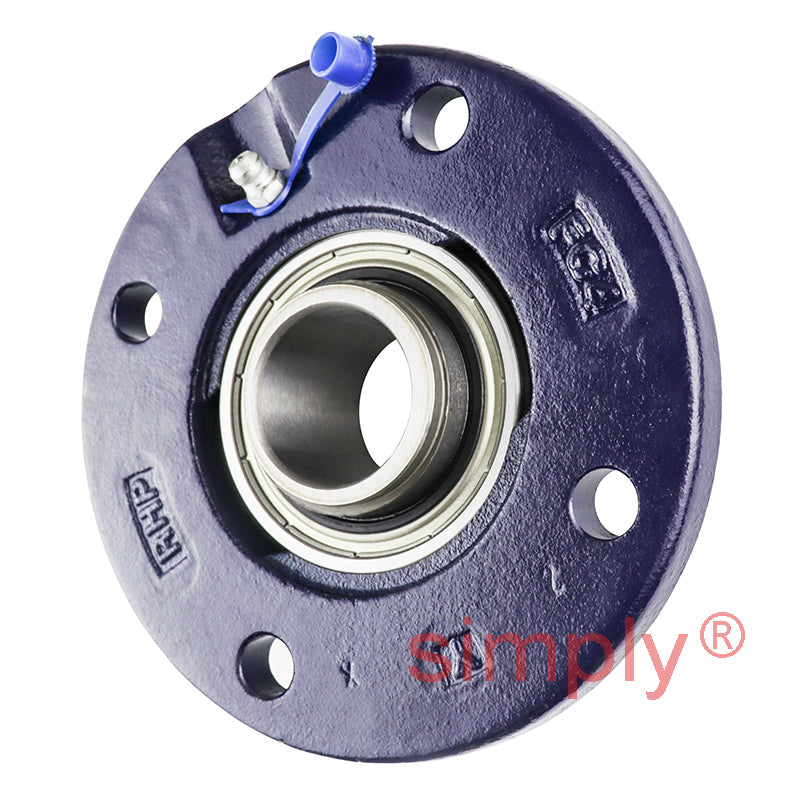

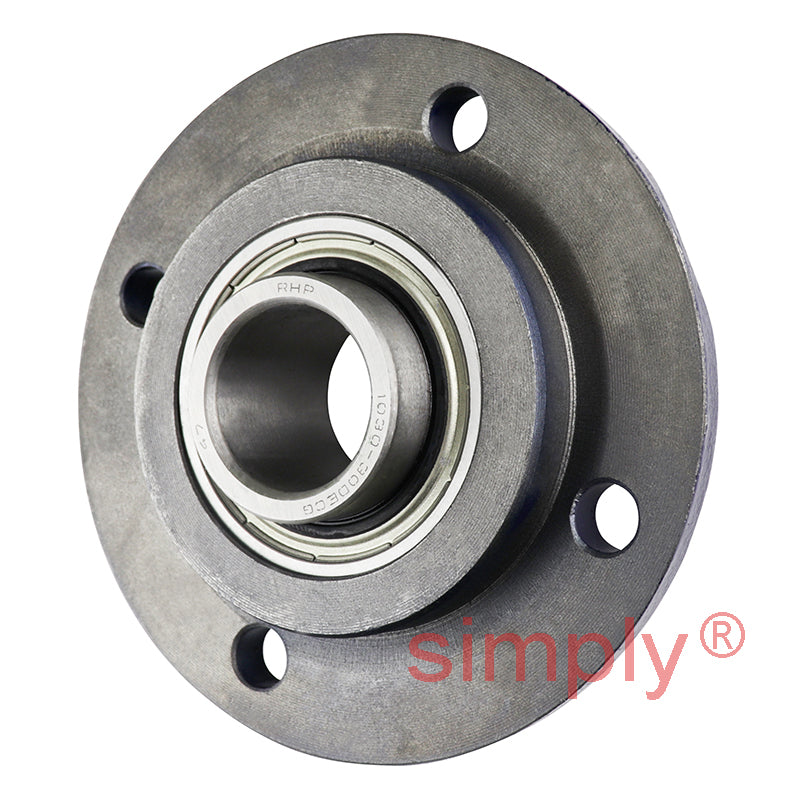

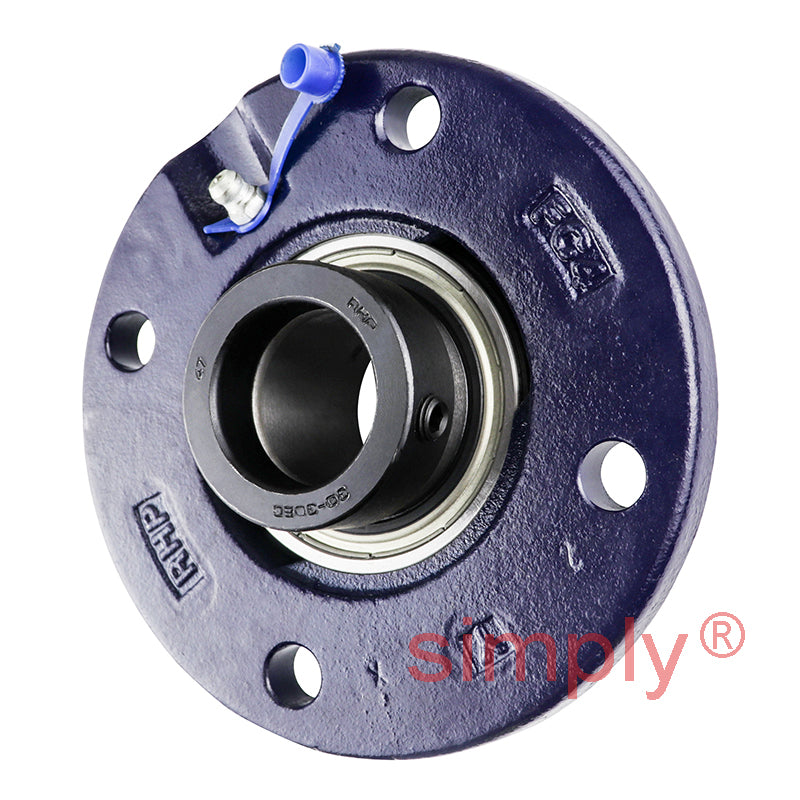

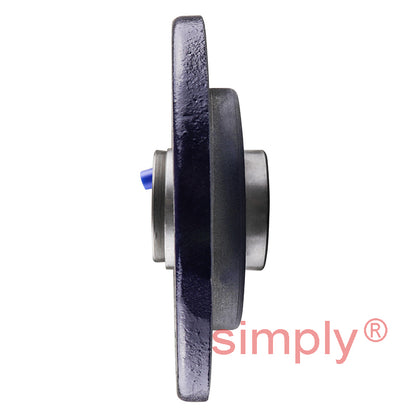

RHP FC30DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
RHP FC30DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 30mm Insert
Regular price
CHF 70.00
ex VAT
Regular price
Sale price
CHF 70.00
ex VAT
In stock
Price Break
10+
CHF 55.21
20+
CHF 52.11
30+
CHF 51.49
40+
CHF 50.87
50+
CHF 50.25
75+
CHF 49.63
100+
CHF 46.53
200+
CHF 45.91
250+
CHF 45.29
500+
CHF 44.67
1000+
CHF 43.43
Share this product
Description
Description
|
RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Style:
- FC
- Pitch Circle Diameter:
- 100mm
Technical
Technical
| Bore | 30mm |
|---|---|
| L | 125mm |
| H | 80mm |
| J | 100mm |
| G | 10mm |
| A | 20.5mm |
| A3 | 28.1mm |
| A5 | 9.5mm |
| B3 | 48.42mm |
| s2 | 18.32mm |
| d2 | 44.45mm |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-30DECG+insonly">1030-30DECG Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
