SKU: FC35-RHP

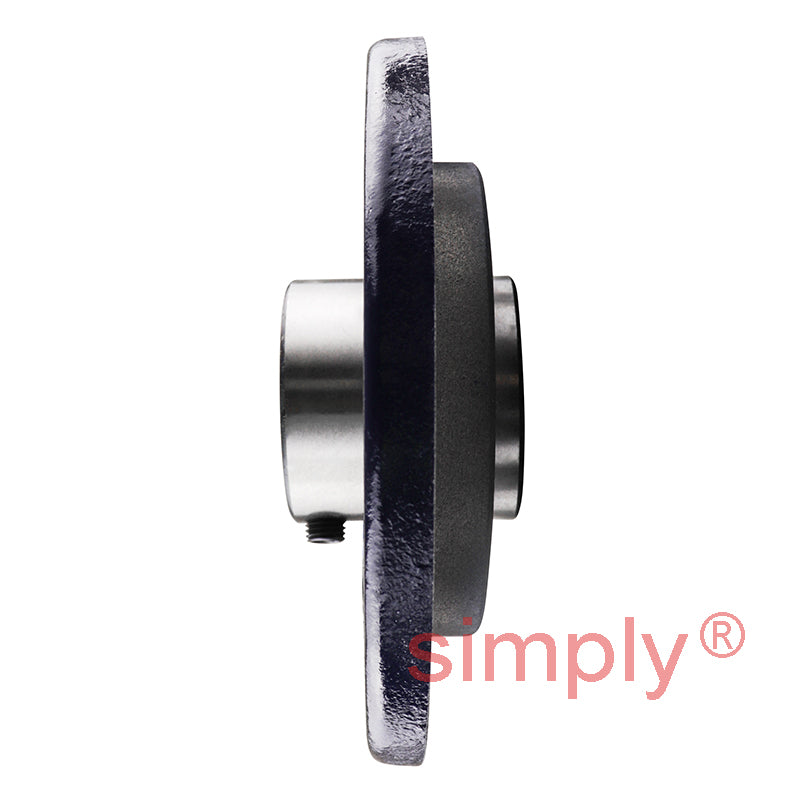

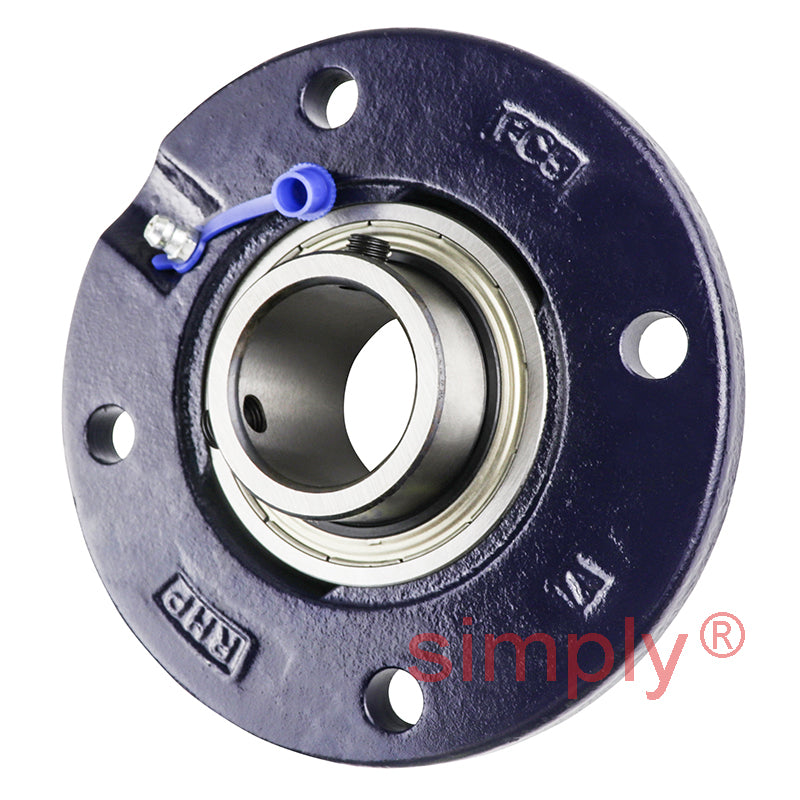

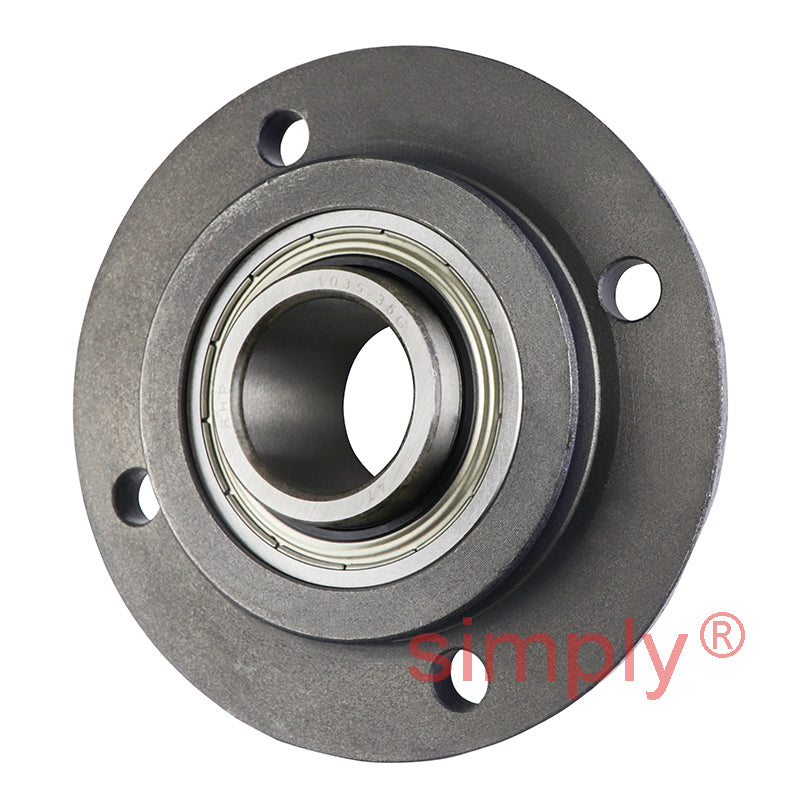

RHP FC35-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP FC35-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
Regular price
CHF 69.00
ex VAT
Regular price
Sale price
CHF 69.00
ex VAT
In stock
Price Break
10+
CHF 54.73
20+
CHF 51.65
30+
CHF 51.04
40+
CHF 50.42
50+
CHF 49.81
75+
CHF 49.19
100+
CHF 46.12
200+
CHF 45.50
250+
CHF 44.89
500+
CHF 44.27
1000+
CHF 43.04
Share this product
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- FC
- Pitch Circle Diameter:
- 110mm
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 135mm |
| H | 90mm |
| J | 110mm |
| G | 10mm |
| A | 20.5mm |
| A1 | 24.4mm |
| A5 | 10mm |
| B | 42.88mm |
| s | 17.53mm |
| d1 | 46.69mm |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-35G+insonly">1035-35G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
