SKU: FC35DEC-RHP

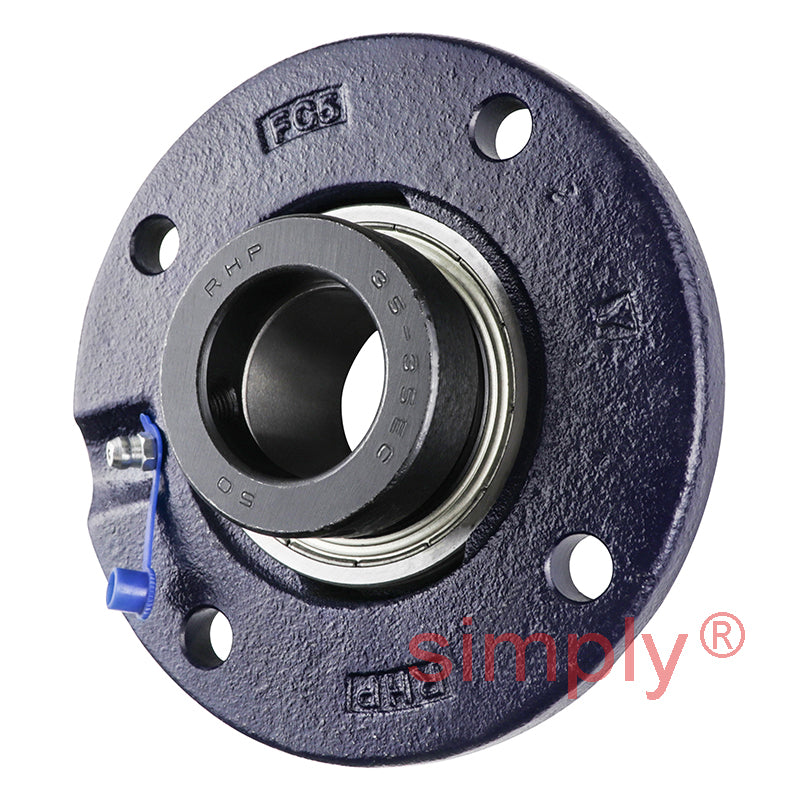

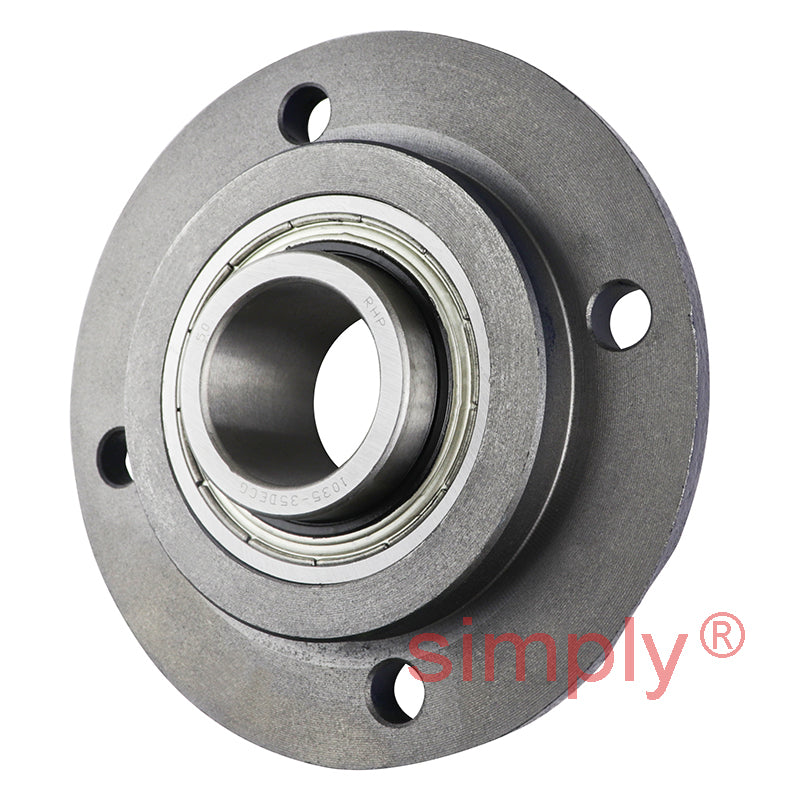

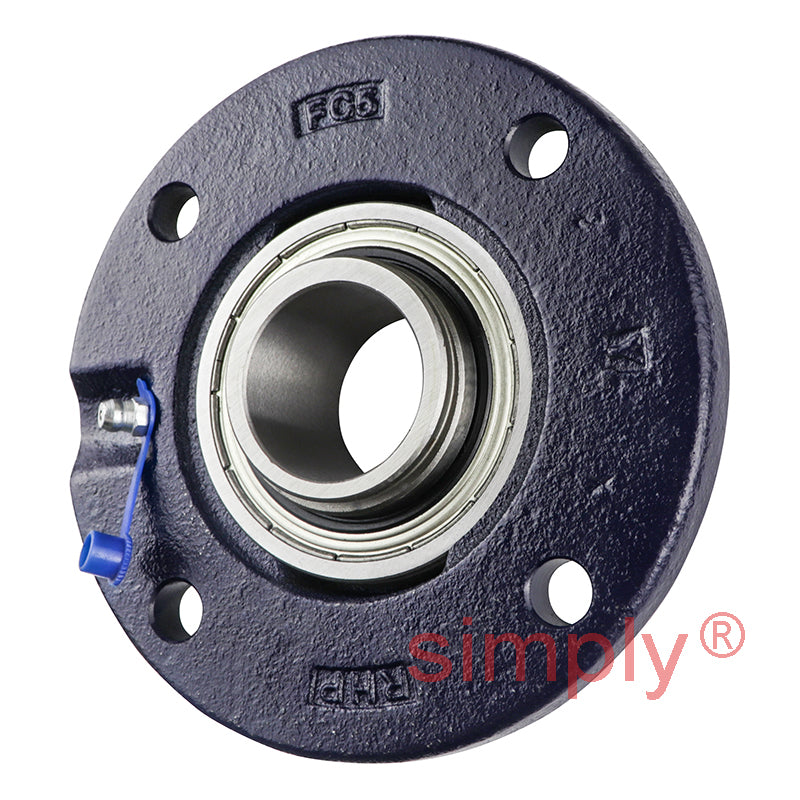

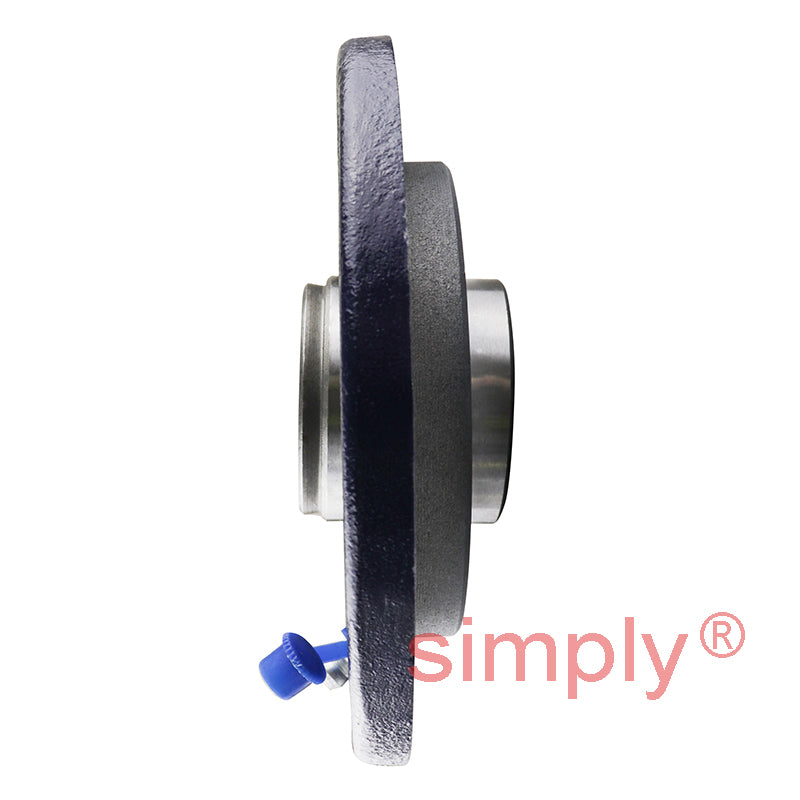

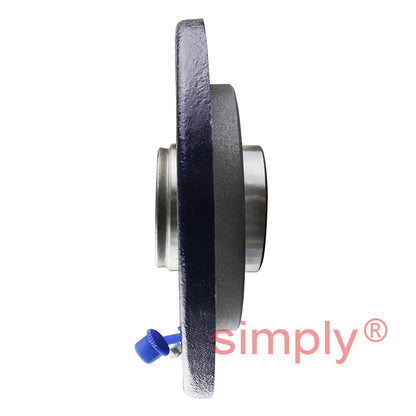

RHP FC35DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP FC35DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
Regular price
CHF 58.00
ex VAT
Regular price
Sale price
CHF 58.00
ex VAT
In stock
Price Break
10+
CHF 46.15
20+
CHF 43.55
30+
CHF 43.04
40+
CHF 42.52
50+
CHF 42.00
75+
CHF 41.48
100+
CHF 38.89
200+
CHF 38.37
250+
CHF 37.85
500+
CHF 37.33
1000+
CHF 36.30
Share this product
Description
Description
|

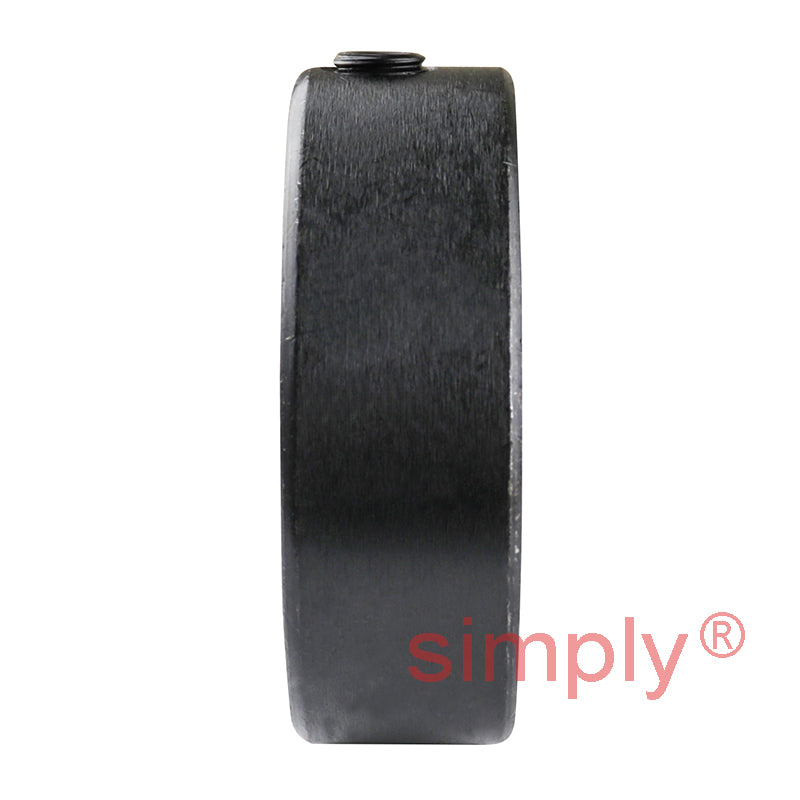

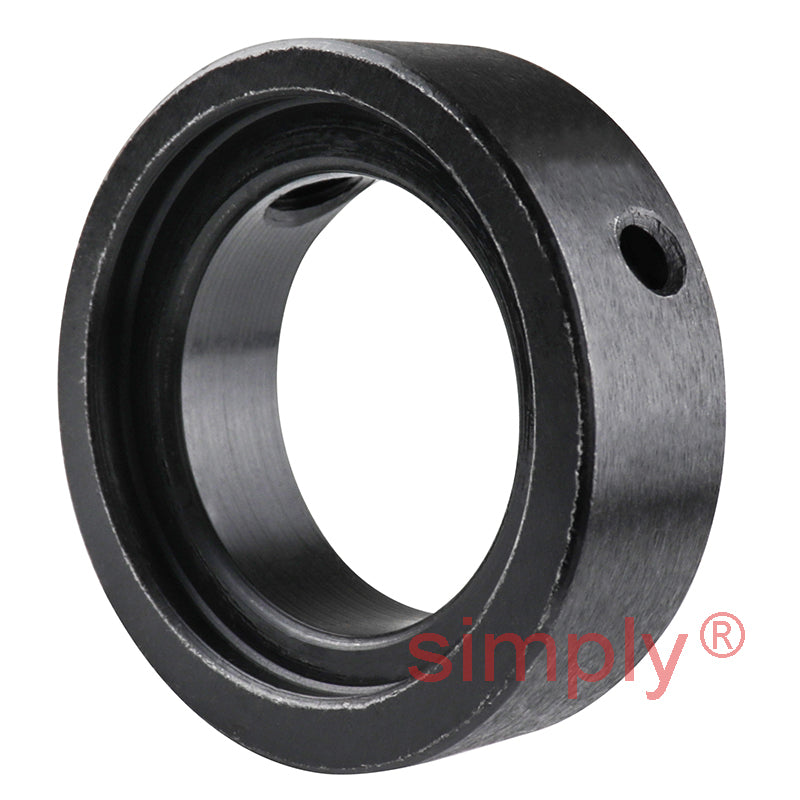

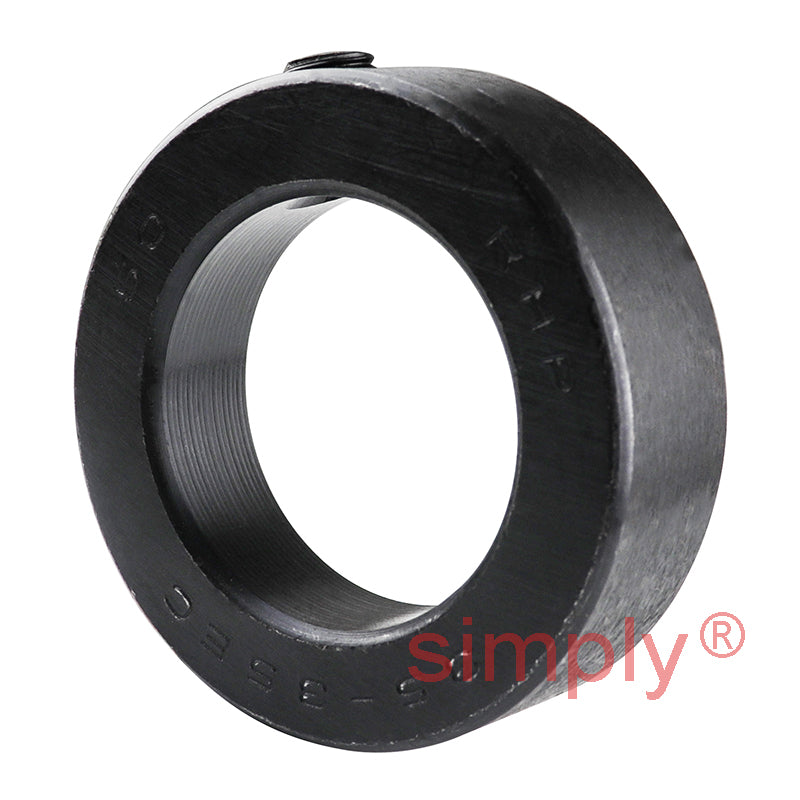

RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- FC
- Pitch Circle Diameter:
- 110mm
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 135mm |
| H | 90mm |
| J | 110mm |
| G | 10mm |
| A | 20.5mm |
| A3 | 31.29mm |
| A5 | 10mm |
| B3 | 51.18mm |
| s2 | 18.89mm |
| d2 | 55.58mm |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035-35DECG+insonly">1035-35DECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
