SKU: FC35EC-RHP

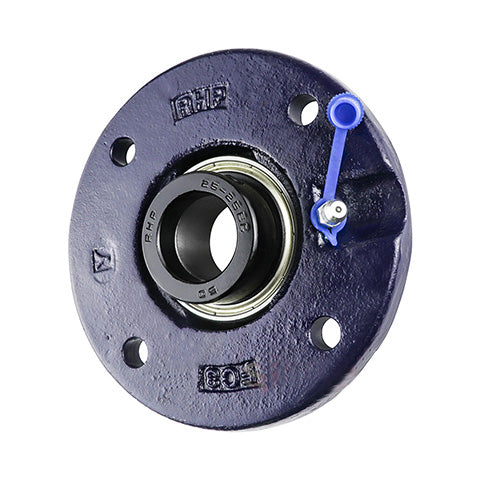

RHP FC35EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
RHP FC35EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
Regular price
CHF 51.00
ex VAT
Regular price
Sale price
CHF 51.00
ex VAT
In stock
Price Break
10+
CHF 40.41
20+
CHF 38.14
30+
CHF 37.69
40+
CHF 37.24
50+
CHF 36.78
75+
CHF 36.33
100+
CHF 34.06
200+
CHF 33.60
250+
CHF 33.15
500+
CHF 32.70
1000+
CHF 31.79
Share this product
Description
Description
|
RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Style:
- FC
- Pitch Circle Diameter:
- 110mm
Technical
Technical
| Bore | 35mm |
|---|---|
| L | 135mm |
| H | 90mm |
| J | 110mm |
| G | 10mm |
| A | 20.5mm |
| A2 | 28.33mm |
| A5 | 10mm |
| B2 | 38.88mm |
| s2 | 18.89mm |
| d2 | 55.58mm |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1235-35ECG+insonly">1235-35ECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
