SKU: FC40-RHP

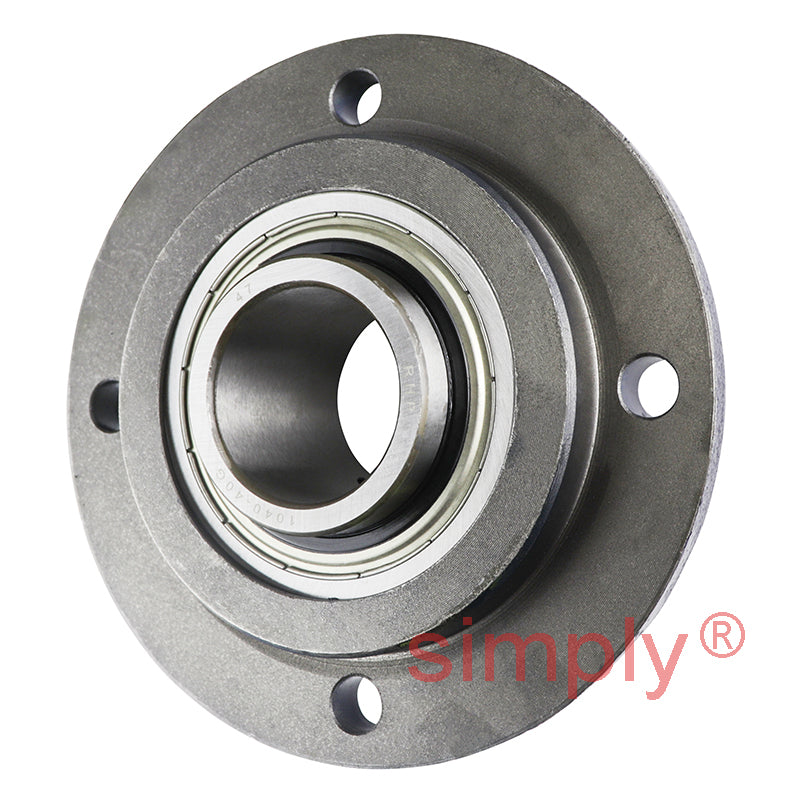

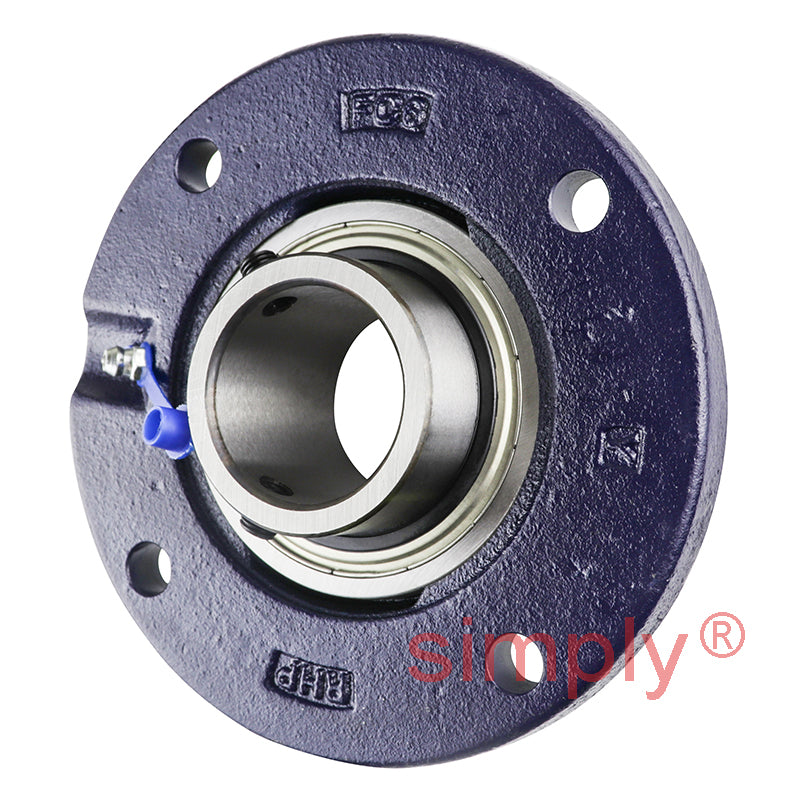

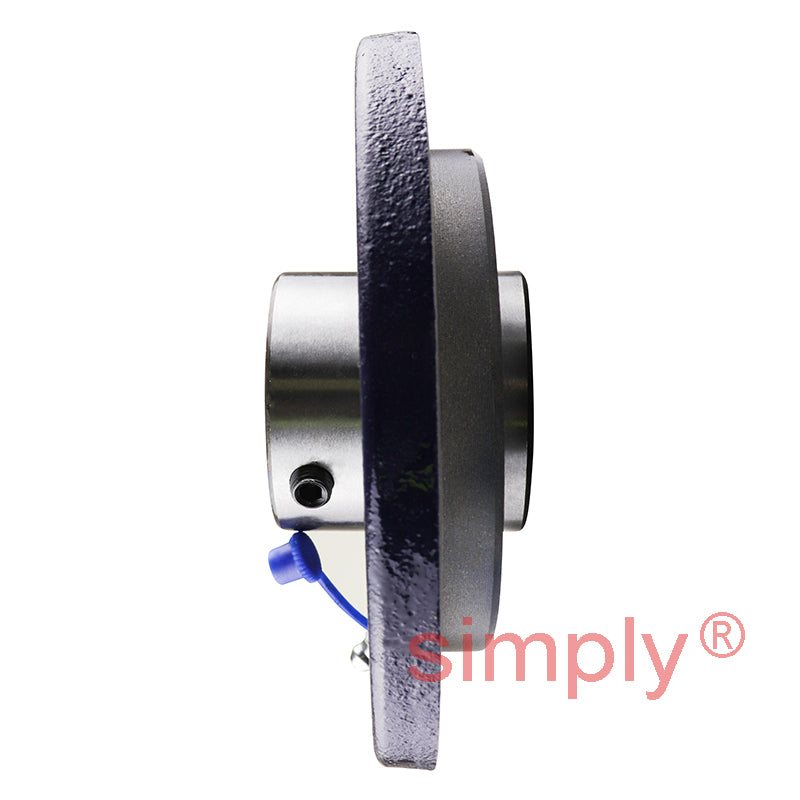

RHP FC40-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
RHP FC40-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
Regular price
CHF 81.00
ex VAT
Regular price
Sale price
CHF 81.00
ex VAT
In stock
Price Break
10+
CHF 63.90
20+
CHF 60.31
30+
CHF 59.59
40+
CHF 58.87
50+
CHF 58.16
75+
CHF 57.44
100+
CHF 53.85
200+
CHF 53.13
250+
CHF 52.41
500+
CHF 51.69
1000+
CHF 50.26
Share this product
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Style:
- FC
- Pitch Circle Diameter:
- 120mm
Technical
Technical
| Bore | 40mm |
|---|---|
| L | 145mm |
| H | 100mm |
| J | 120mm |
| G | 10mm |
| A | 23mm |
| A1 | 29.18mm |
| A5 | 11.5mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 52.7mm |
| Dynamic load | 32500 N |
| Static load | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-40G+insonly">1040-40G Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
