SKU: FC40DEC-RHP

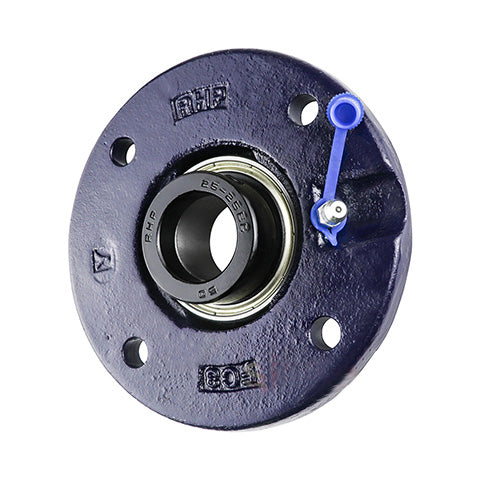

RHP FC40DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
RHP FC40DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
Regular price
CHF 95.00
ex VAT
Regular price
Sale price
CHF 95.00
ex VAT
In stock
Price Break
10+
CHF 75.16
20+
CHF 70.93
30+
CHF 70.09
40+
CHF 69.25
50+
CHF 68.40
75+
CHF 67.56
100+
CHF 63.33
200+
CHF 62.49
250+
CHF 61.65
500+
CHF 60.80
1000+
CHF 59.11
Share this product
Description
Description
|
RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Style:
- FC
- Pitch Circle Diameter:
- 120mm
Technical
Technical
| Bore | 40mm |
|---|---|
| L | 145mm |
| H | 100mm |
| J | 120mm |
| G | 10mm |
| A | 23mm |
| A3 | 33.88mm |
| A5 | 11.5mm |
| B3 | 56.34mm |
| s2 | 21.46mm |
| d2 | 60.3mm |
| Dynamic load | 32500 N |
| Static load | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1040-40DECG+insonly">1040-40DECG Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
