SKU: FC40EC-RHP

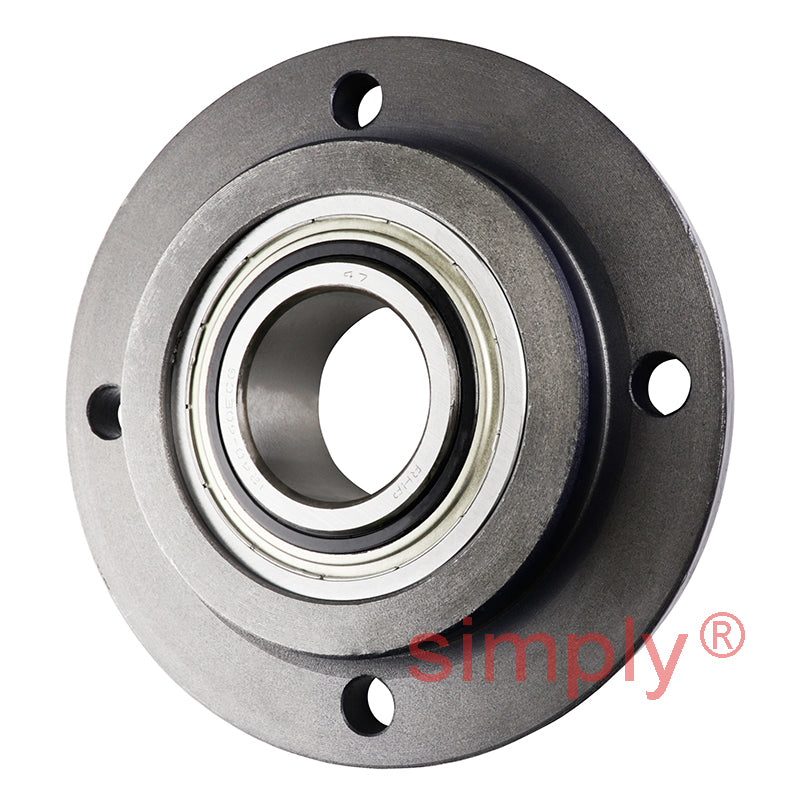

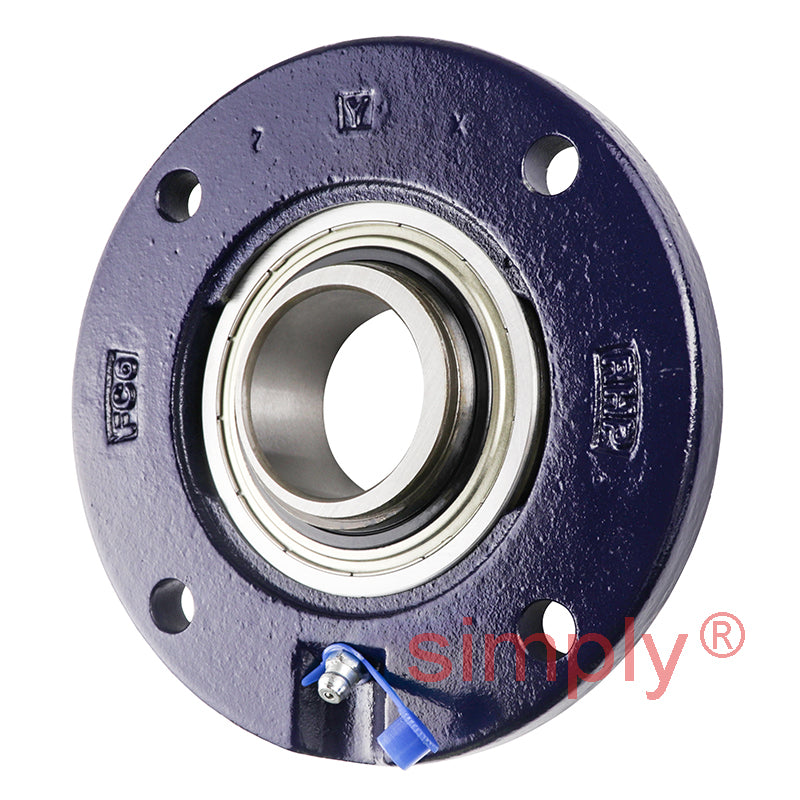

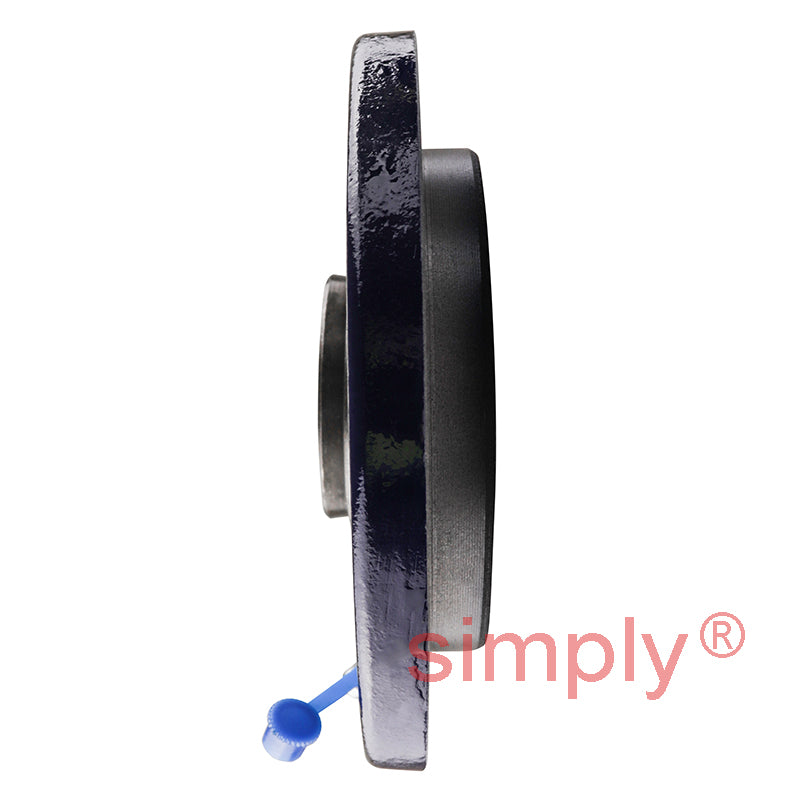

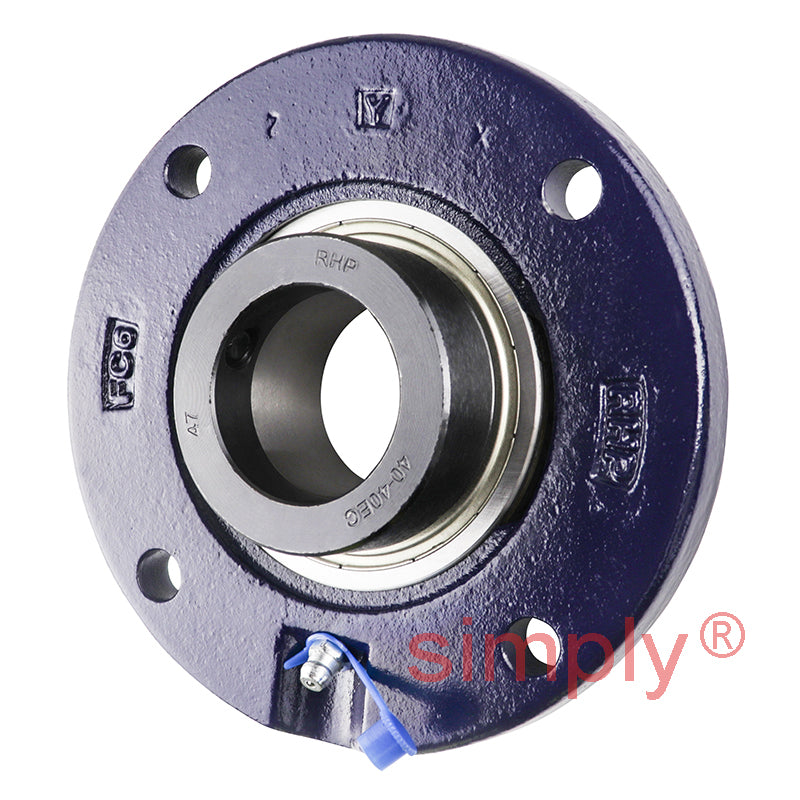

RHP FC40EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
RHP FC40EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 40mm Insert
Regular price
CHF 87.00
ex VAT
Regular price
Sale price
CHF 87.00
ex VAT
In stock
Price Break
10+
CHF 68.72
20+
CHF 64.86
30+
CHF 64.09
40+
CHF 63.31
50+
CHF 62.54
75+
CHF 61.77
100+
CHF 57.91
200+
CHF 57.14
250+
CHF 56.37
500+
CHF 55.59
1000+
CHF 54.05
Share this product
Description
Description
|

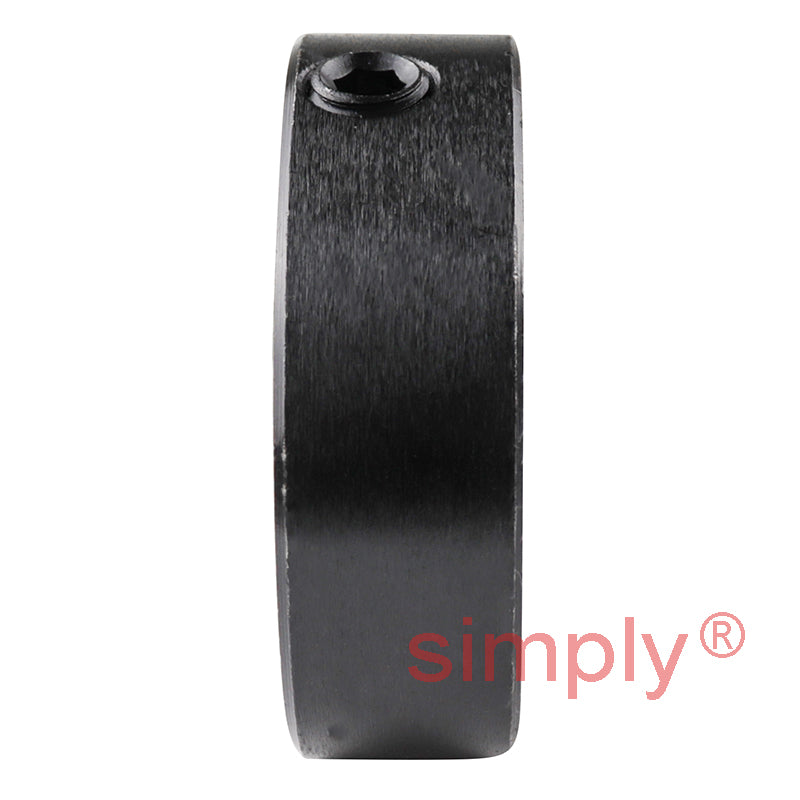

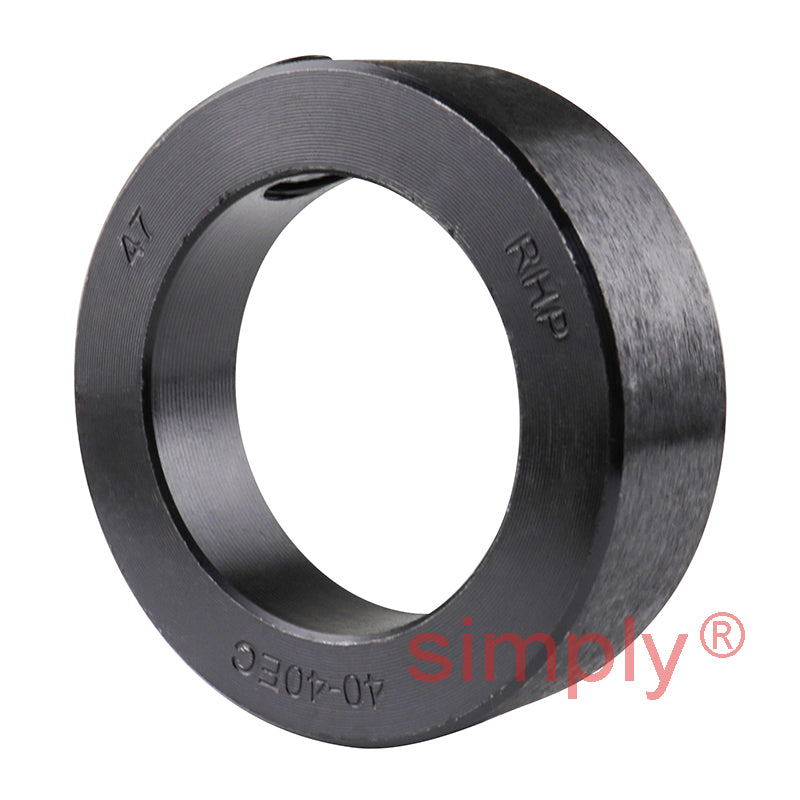

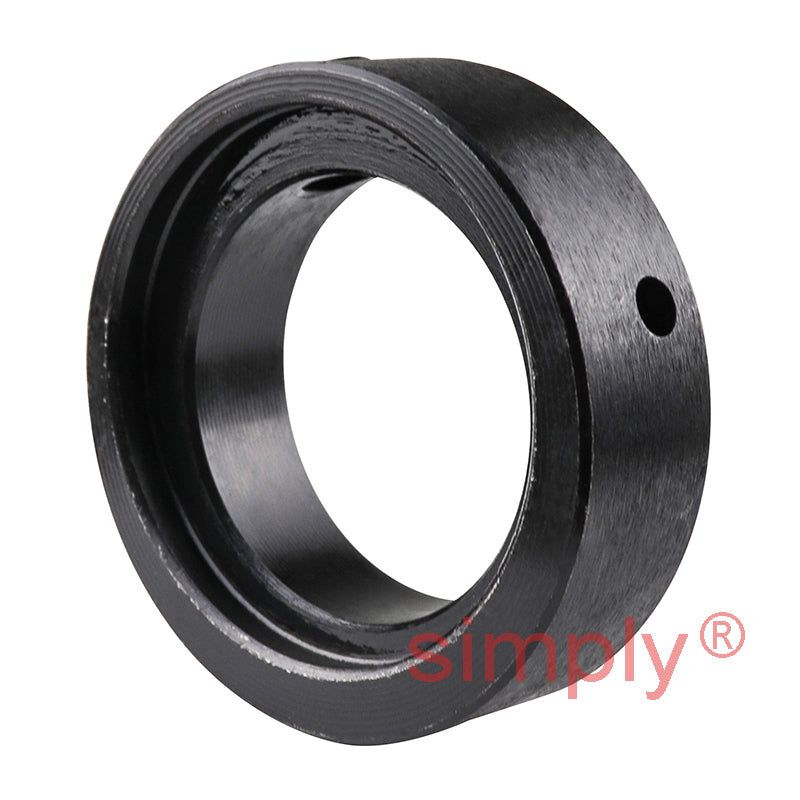

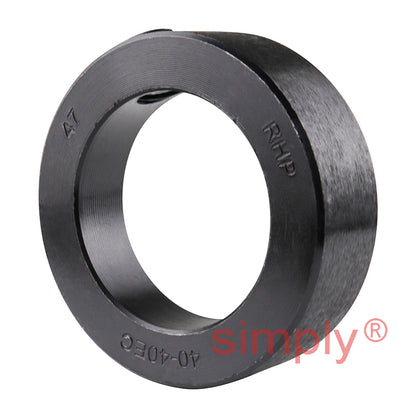

RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Style:
- FC
- Pitch Circle Diameter:
- 120mm
Technical
Technical
| Bore | 40mm |
|---|---|
| L | 145mm |
| H | 100mm |
| J | 120mm |
| G | 10mm |
| A | 23mm |
| A2 | 31.59mm |
| A5 | 11.5mm |
| B2 | 43.64mm |
| s2 | 21.46mm |
| d2 | 60.3mm |
| Dynamic load | 32500 N |
| Static load | 19900 N |
| Rec max speed | 4000 rpm |
| Weight | 1.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1240-40ECG+insonly">1240-40ECG Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
