SKU: FC45-RHP

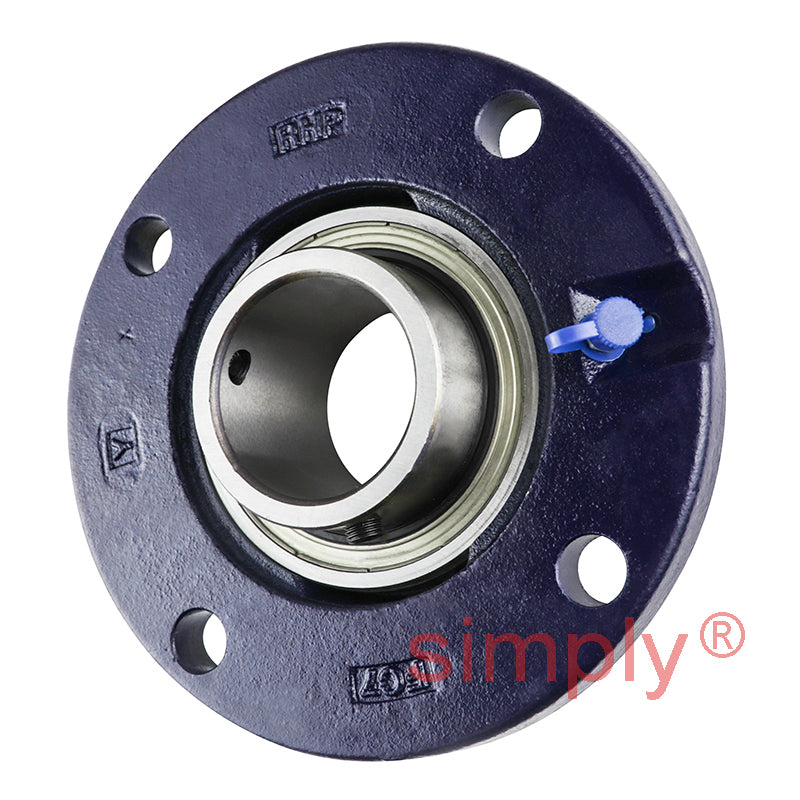

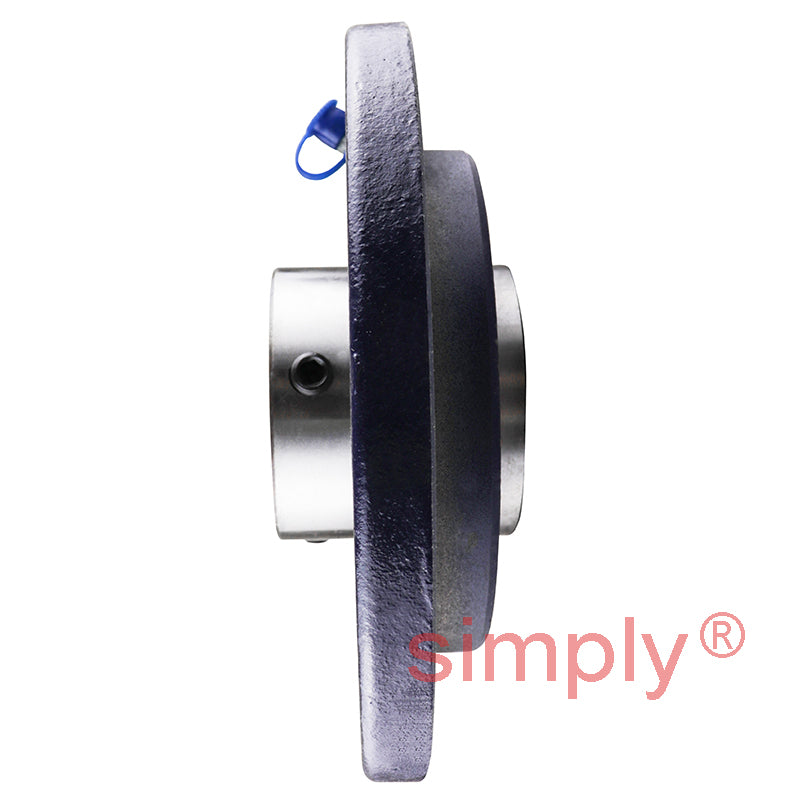

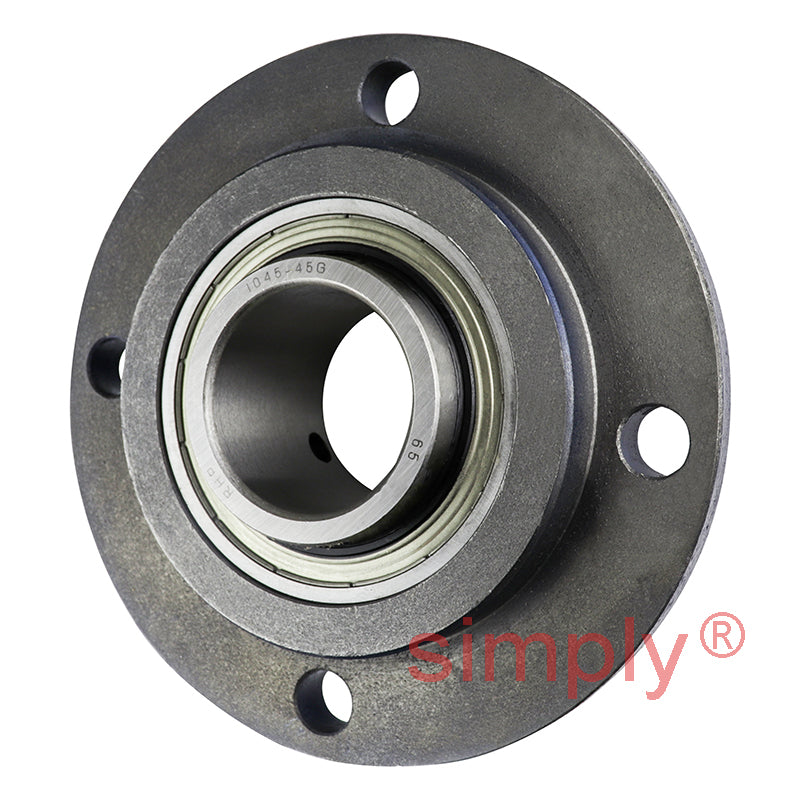

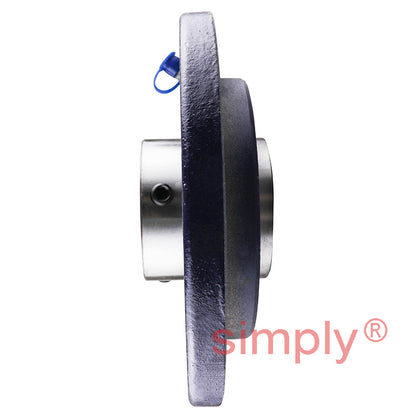

RHP FC45-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
RHP FC45-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
Regular price
CHF 91.00
ex VAT
Regular price
Sale price
CHF 91.00
ex VAT
In stock
Price Break
10+
CHF 71.79
20+
CHF 67.76
30+
CHF 66.95
40+
CHF 66.14
50+
CHF 65.34
75+
CHF 64.53
100+
CHF 60.50
200+
CHF 59.69
250+
CHF 58.88
500+
CHF 58.08
1000+
CHF 56.46
Share this product
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- FC
- Pitch Circle Diameter:
- 130mm
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 155mm |
| H | 105mm |
| J | 130mm |
| G | 12mm |
| A | 25mm |
| A1 | 28.18mm |
| A5 | 12mm |
| B | 49.23mm |
| s | 19.1mm |
| d1 | 57.3mm |
| Dynamic load | 32500 N |
| Static load | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-45G+insonly">1045-45G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
