SKU: FC45A-RHP
RHP FC45A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
RHP FC45A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
Regular price
CHF 90.48
ex VAT
Regular price
Sale price
CHF 90.48
ex VAT
In stock
Price Break
10+
CHF 80.53
19+
CHF 76.00
29+
CHF 75.10
39+
CHF 74.19
49+
CHF 73.29
74+
CHF 72.38
99+
CHF 67.86
199+
CHF 66.96
249+
CHF 66.05
499+
CHF 65.15
999+
CHF 63.34
Couldn't load pickup availability
Description
Description
|

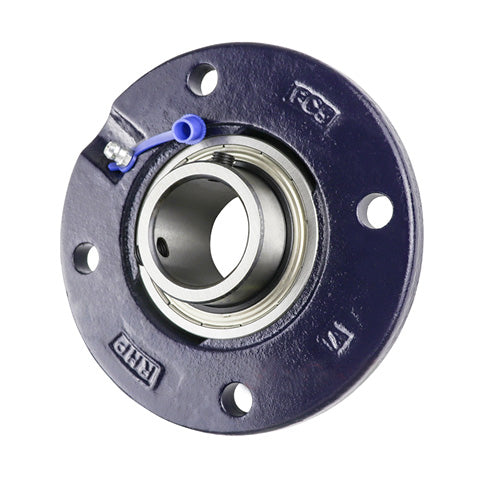

RHP FC A Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- FC
- Pitch Circle Diameter:
- 130mm
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 155mm |
| H | 105mm |
| J | 130mm |
| G | 12mm |
| A | 25mm |
| A1 | 28.18mm |
| A5 | 12mm |
| B1 | 41.18mm |
| s1 | 11.05mm |
| d1 | 57.3mm |
| Dynamic load | 32500 N |
| Static load | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1245-45AG+insonly">1245-45AG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
