SKU: FC45EC-RHP

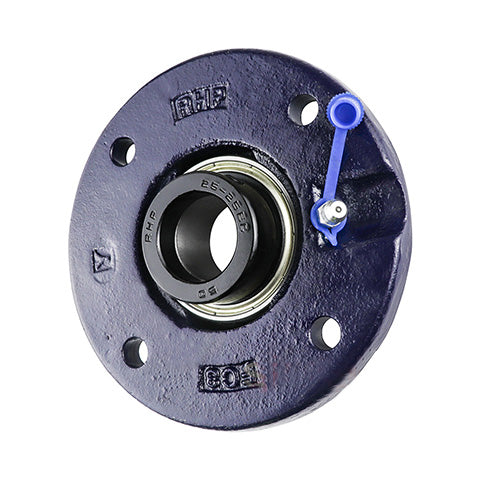

RHP FC45EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
RHP FC45EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 45mm Insert
Regular price
CHF 100.40
ex VAT
Regular price
Sale price
CHF 100.40
ex VAT
In stock
Price Break
10+
CHF 89.36
19+
CHF 84.34
29+
CHF 83.33
39+
CHF 82.33
49+
CHF 81.32
74+
CHF 80.32
99+
CHF 75.30
199+
CHF 74.30
249+
CHF 73.29
499+
CHF 72.29
999+
CHF 70.28
Couldn't load pickup availability
Description
Description
|
RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- FC
- Pitch Circle Diameter:
- 130mm
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 155mm |
| H | 105mm |
| J | 130mm |
| G | 12mm |
| A | 25mm |
| A2 | 30.59mm |
| A5 | 12mm |
| B2 | 43.64mm |
| s2 | 21.46mm |
| d2 | 63.5mm |
| Dynamic load | 32500 N |
| Static load | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1245-45ECG+insonly">1245-45ECG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
