SKU: FC50EC-RHP

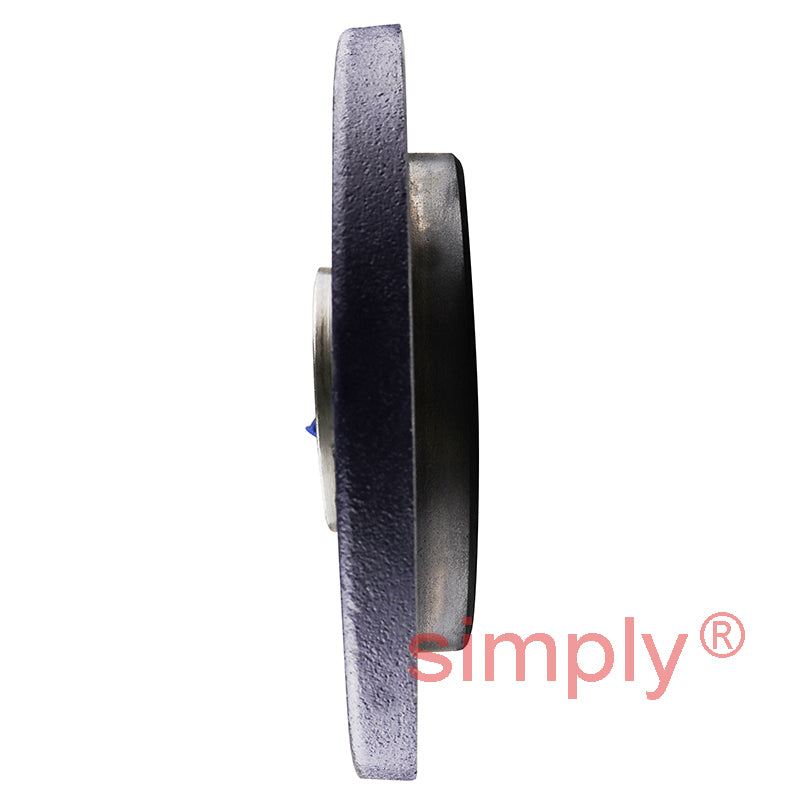

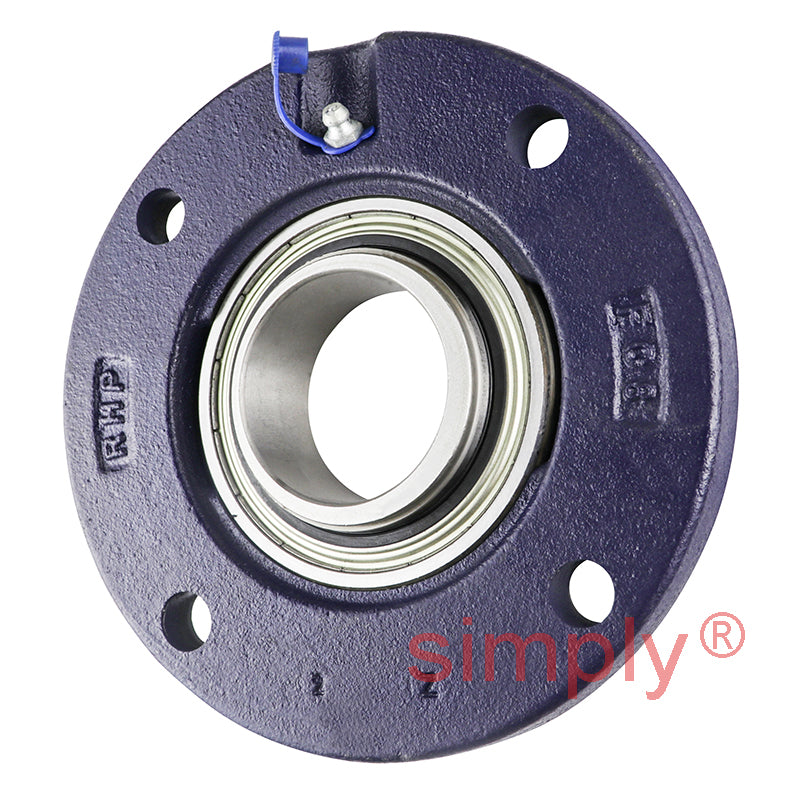

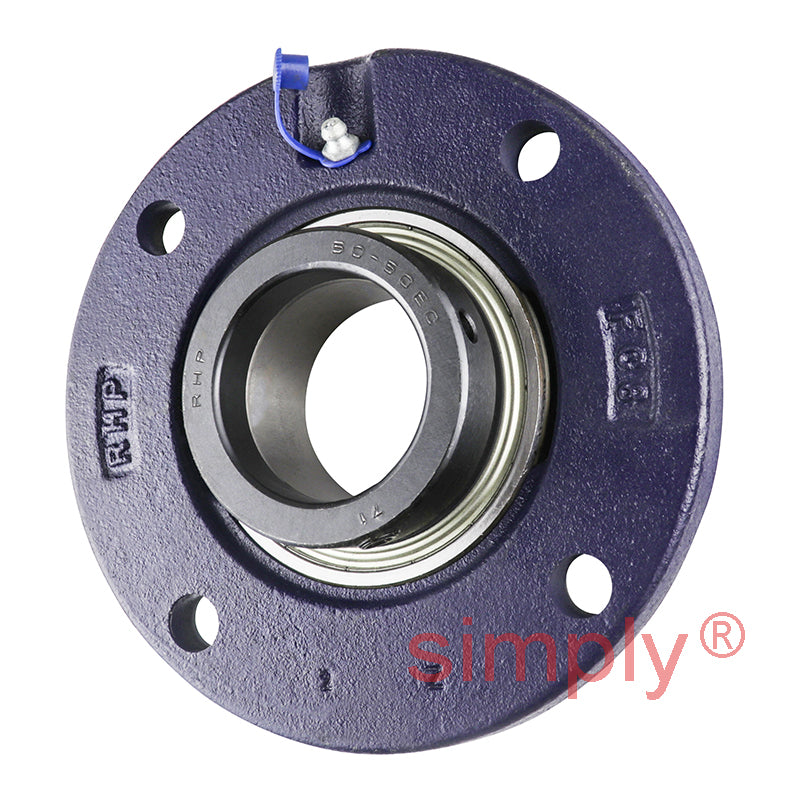

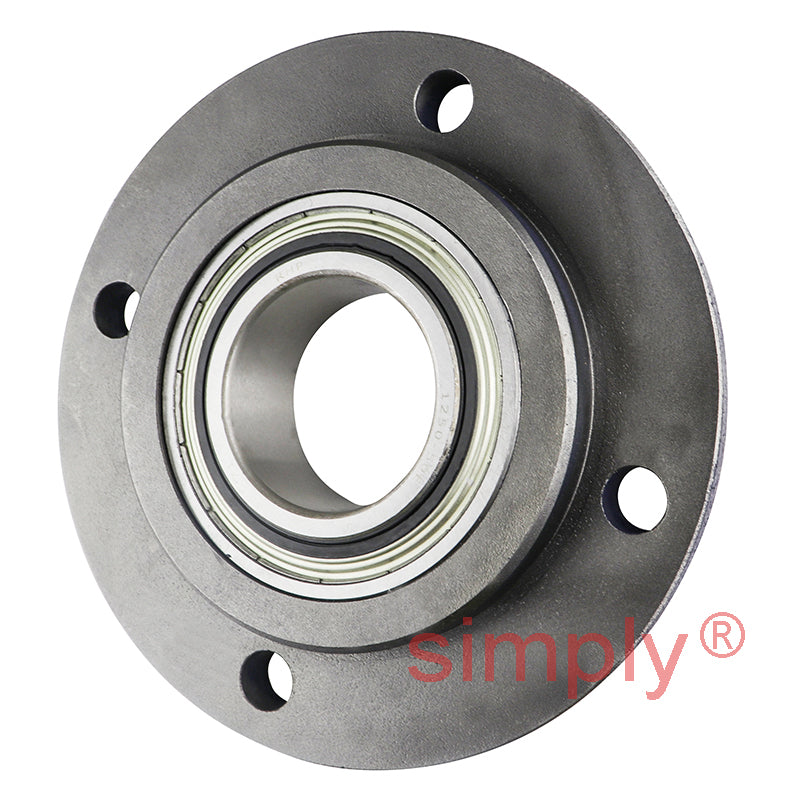

RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
RHP FC50EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 50mm Insert
Regular price
CHF 109.00
ex VAT
Regular price
Sale price
CHF 109.00
ex VAT
In stock
Price Break
10+
CHF 86.44
20+
CHF 81.58
30+
CHF 80.61
40+
CHF 79.64
50+
CHF 78.67
75+
CHF 77.70
100+
CHF 72.84
200+
CHF 71.87
250+
CHF 70.90
500+
CHF 69.93
1000+
CHF 67.99
Share this product
Description
Description
|

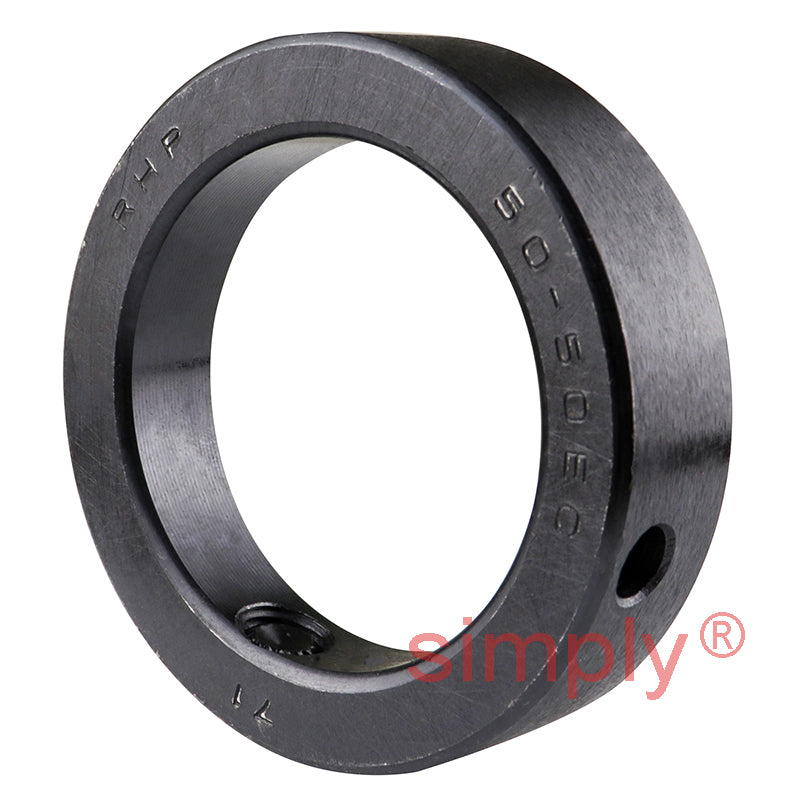

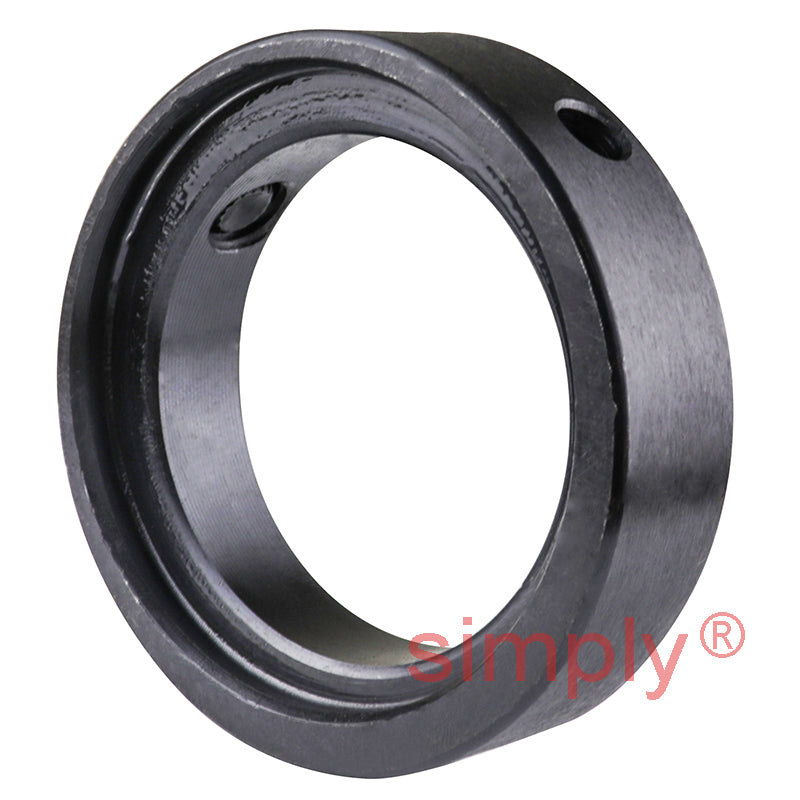

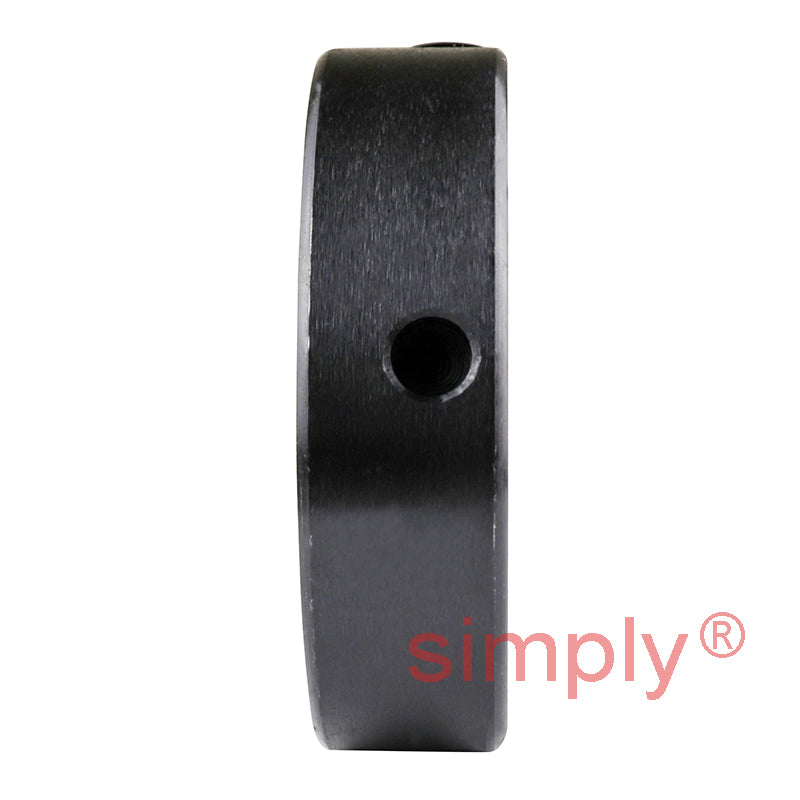

RHP FC EC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- FC
- Pitch Circle Diameter:
- 135mm
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 165mm |
| H | 110mm |
| J | 135mm |
| G | 12mm |
| A | 25mm |
| A2 | 31.63mm |
| A5 | 13mm |
| B2 | 43.73mm |
| s2 | 24.64mm |
| d2 | 69.85mm |
| Dynamic load | 35000 N |
| Static load | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1250-50ECG+insonly">1250-50ECG Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
