SKU: FC55-RHP

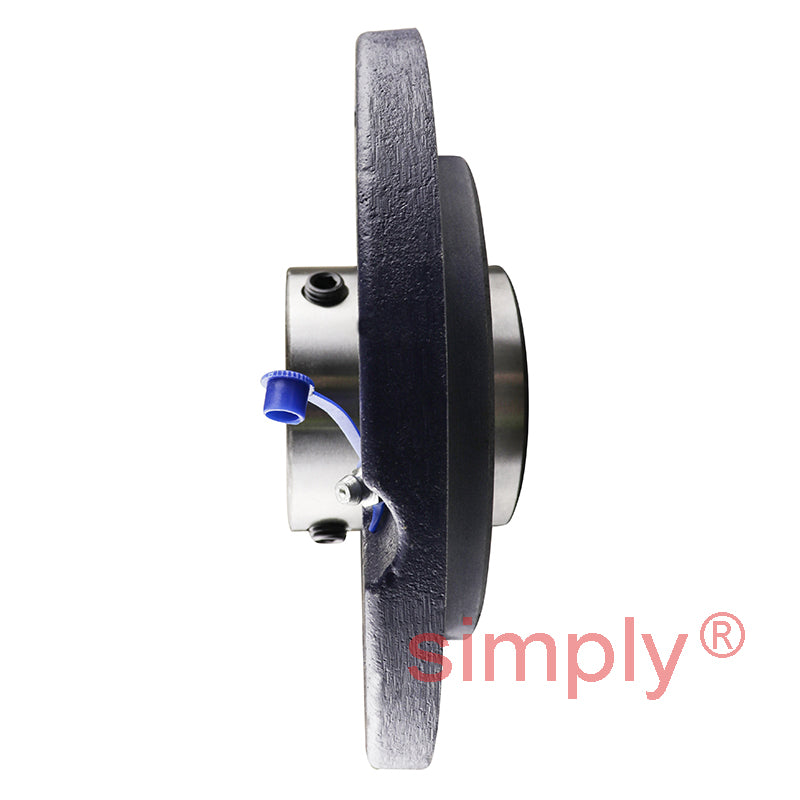

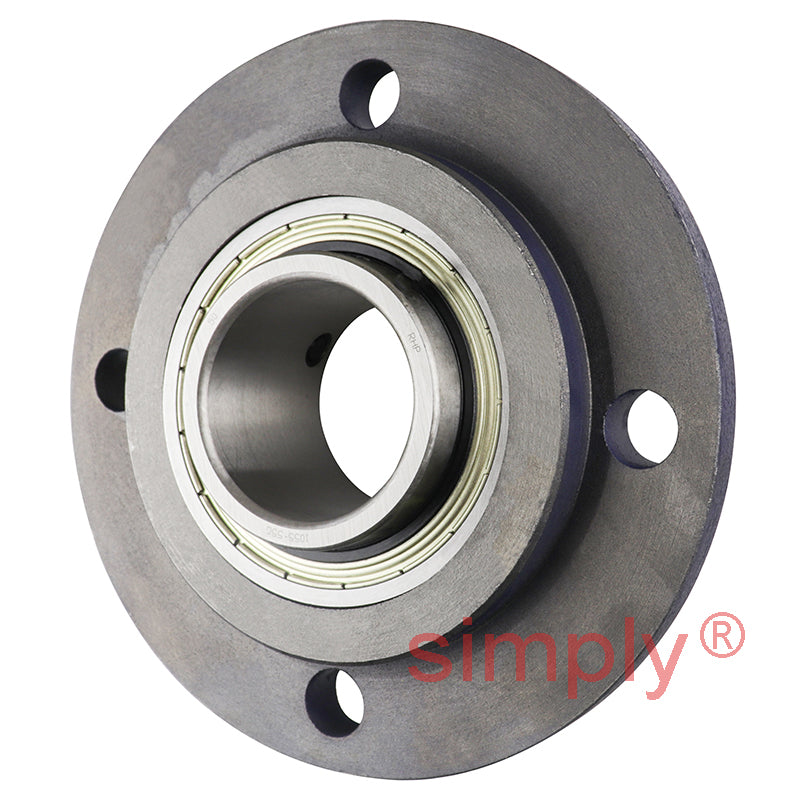

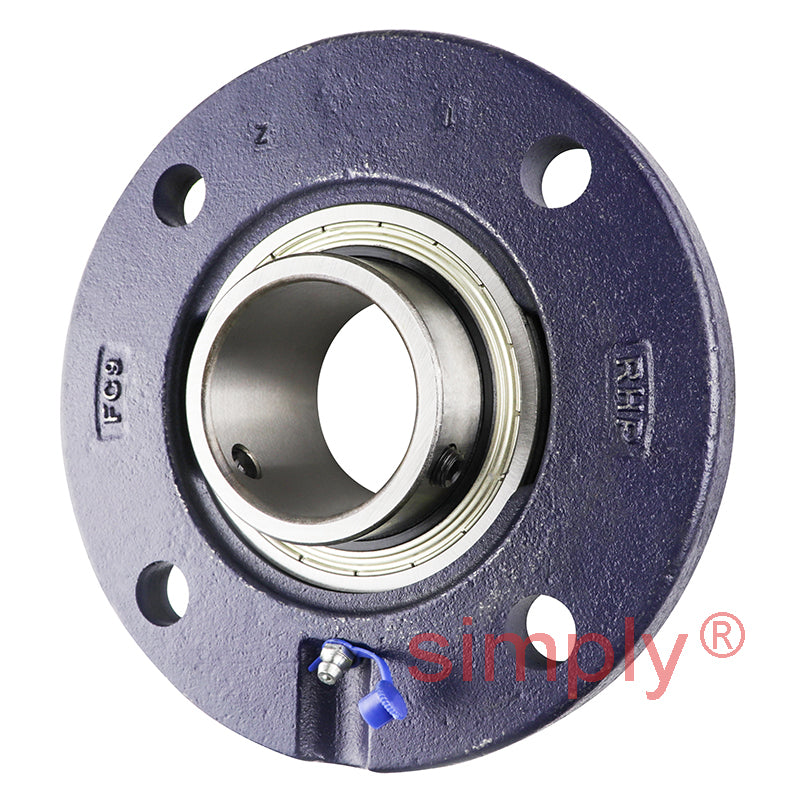

RHP FC55-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert
RHP FC55-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert
Regular price
CHF 126.00
ex VAT
Regular price
Sale price
CHF 126.00
ex VAT
In stock
Price Break
10+
CHF 100.24
20+
CHF 94.61
30+
CHF 93.48
40+
CHF 92.36
50+
CHF 91.23
75+
CHF 90.10
100+
CHF 84.47
200+
CHF 83.35
250+
CHF 82.22
500+
CHF 81.09
1000+
CHF 78.84
Share this product
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55mm
- Style:
- FC
- Pitch Circle Diameter:
- 150mm
Technical
Technical
| Bore | 55mm |
|---|---|
| L | 185mm |
| H | 125mm |
| J | 150mm |
| G | 16mm |
| A | 27.5mm |
| A1 | 33.3mm |
| A5 | 15mm |
| B | 55.55mm |
| s | 22.28mm |
| d1 | 68.81mm |
| Dynamic load | 43500 N |
| Static load | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-55G+insonly">1055-55G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
