SKU: FC60-RHP

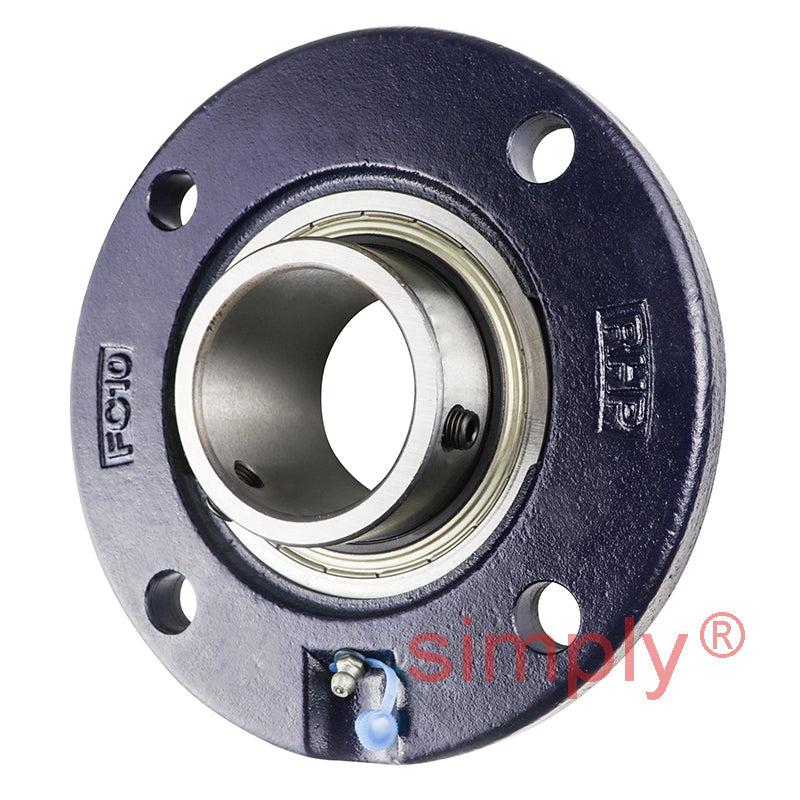

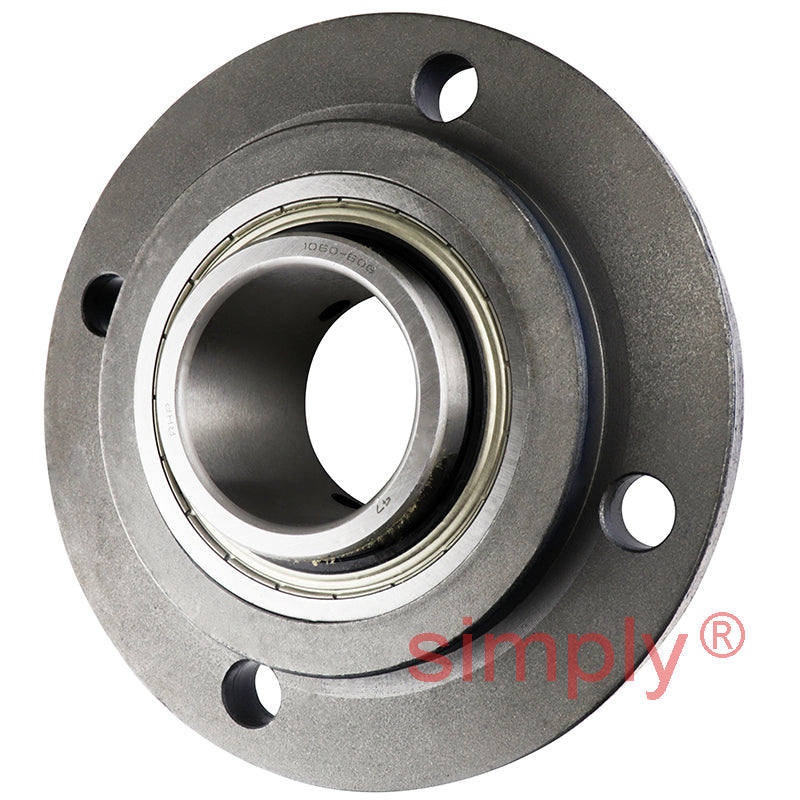

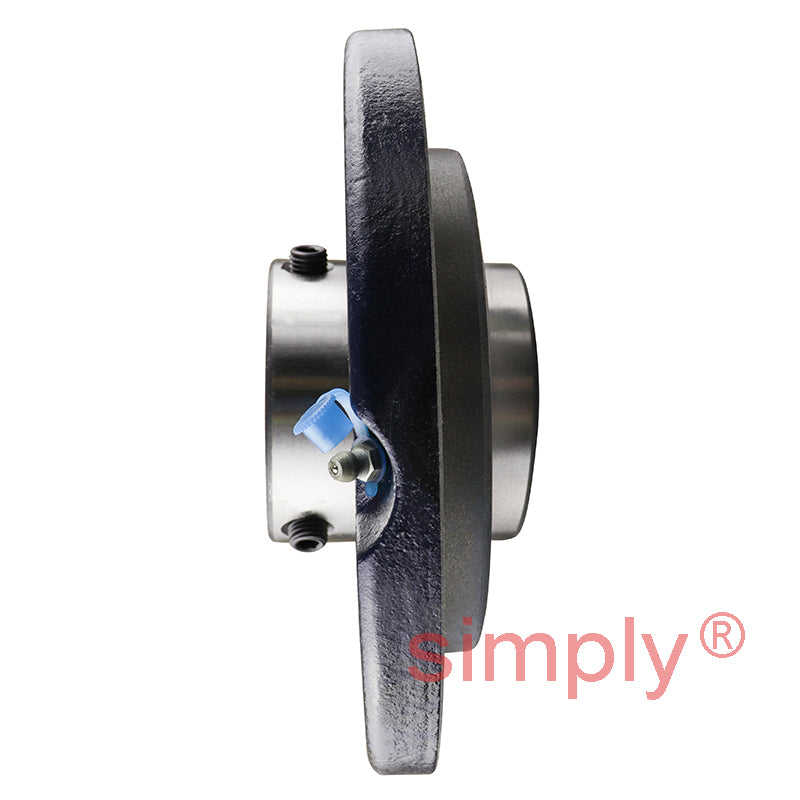

RHP FC60-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
RHP FC60-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
Regular price
CHF 170.00
ex VAT
Regular price
Sale price
CHF 170.00
ex VAT
In stock
Price Break
10+
CHF 134.80
20+
CHF 127.22
30+
CHF 125.71
40+
CHF 124.19
50+
CHF 122.68
75+
CHF 121.16
100+
CHF 113.59
200+
CHF 112.08
250+
CHF 110.56
500+
CHF 109.05
1000+
CHF 106.02
Share this product
Description
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60mm
- Style:
- FC
- Pitch Circle Diameter:
- 160mm
Technical
Technical
| Bore | 60mm |
|---|---|
| L | 195mm |
| H | 135mm |
| J | 160mm |
| G | 16mm |
| A | 29mm |
| A1 | 38.65mm |
| A5 | 16mm |
| B | 65.07mm |
| s | 25.45mm |
| d1 | 75.34mm |
| Dynamic load | 48000 N |
| Static load | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-60G+insonly">1060-60G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
