SKU: FC60DEC-RHP

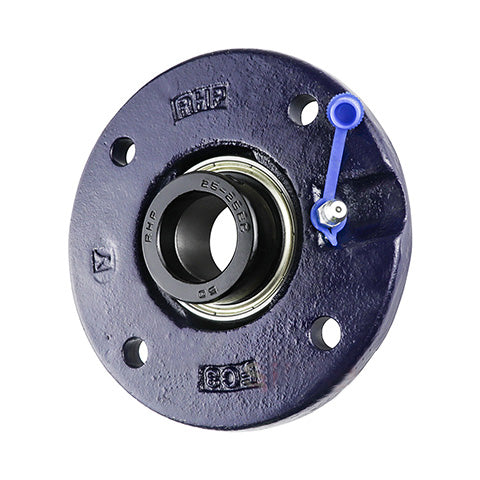

RHP FC60DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
RHP FC60DEC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 60mm Insert
Regular price
CHF 189.49
ex VAT
Regular price
Sale price
CHF 189.49
ex VAT
In stock
Price Break
10+
CHF 168.65
19+
CHF 159.17
29+
CHF 157.28
39+
CHF 155.38
49+
CHF 153.49
74+
CHF 151.59
99+
CHF 142.12
199+
CHF 140.22
249+
CHF 138.33
499+
CHF 136.43
999+
CHF 132.64
Couldn't load pickup availability
Description
Description
|
RHP FC DEC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60mm
- Style:
- FC
- Pitch Circle Diameter:
- 160mm
Technical
Technical
| Bore | 60mm |
|---|---|
| L | 195mm |
| H | 135mm |
| J | 160mm |
| G | 16mm |
| A | 29mm |
| A3 | 45.89mm |
| A5 | 16mm |
| B3 | 77.82mm |
| s2 | 31.02mm |
| d2 | 84.12mm |
| Dynamic load | 48000 N |
| Static load | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 4.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-60DECG+insonly">1060-60DECG Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
