SKU: FD211_1-3/4HX-PEER

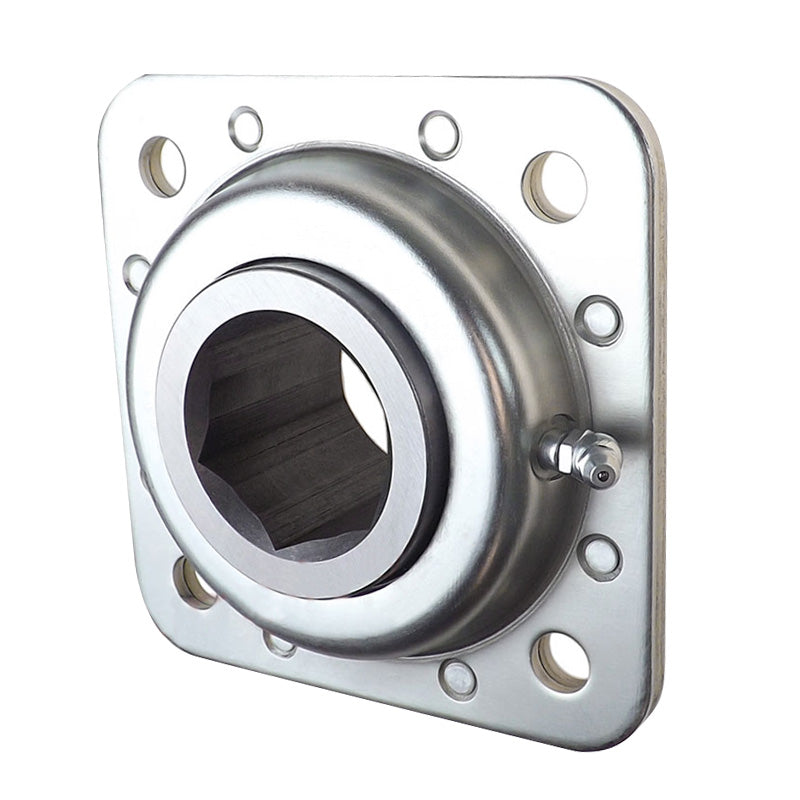

PEER FD211134HX Seedbed Finisher Hex Bore Relubricatable Flanged Disc with Bolt Holes 1.78x5.5x2.1875 inch
PEER FD211134HX Seedbed Finisher Hex Bore Relubricatable Flanged Disc with Bolt Holes 1.78x5.5x2.1875 inch
Regular price
CHF 82.46
ex VAT
Regular price
Sale price
CHF 82.46
ex VAT
Equivalent to: FD211-1-3/4HX
Low stock
Price Break
10+
CHF 73.39
19+
CHF 69.27
29+
CHF 68.44
39+
CHF 67.62
49+
CHF 66.79
74+
CHF 65.97
99+
CHF 61.85
199+
CHF 61.02
249+
CHF 60.20
499+
CHF 59.37
999+
CHF 57.72
Couldn't load pickup availability
Description
Description
Seedbed Finisher
Application conditions:
- Utilizes two bearing assemblies
- High misalignment from imprecise mounting and wide bearing spread attachments can generate severe stress on the internal components
- Exposed directly into the flow of soil and crop residue
Bolt-on-performance:
- Directly interchangeable industry standard units
- Static misalignment capability accommodates imprecise mounting surfaces
- Dynamic misalignment capability eliminates internal bearing damage and housing wear
- Shock load protection due to thick riveted steel housings
- Exclusive patented sealing system eliminates the need for daily relubrication
Seal Type: P, TRL
Typical Application & Speed Limit: Augers with Direct Crop Contact - Basic BRG. Size < 205: 800 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 500 RPM
Typical Environment: Direct ground and crop contact, moisture exposure
Contamination Exclusion: Severe
Equivalent: FD211-1-3/4HX
- Brand / Quality:
- PEER - High Quality
- Inside Diameter:
- 45.21mm = 1.78 inch
- Outside Diameter:
- 139.7mm = 5.5 (5-1/2) inch
- Width:
- 55.56mm = 2.187 (2-3/16) inch
Technical
Technical
| A/d | 1.78 inch = 45.212mm |
|---|---|
| Bi | 2.1875 inch = 55.563mm |
| L | 5.5 inch = 139.7mm |
| D Bolt Circle | 5.5 inch = 139.7mm |
| B Min. Frame Opening | 4.491 inch = 114.07mm |
| Seal/Shield Type | P, TRL Seal |
