SKU: FD211_1-3/4RD-MB

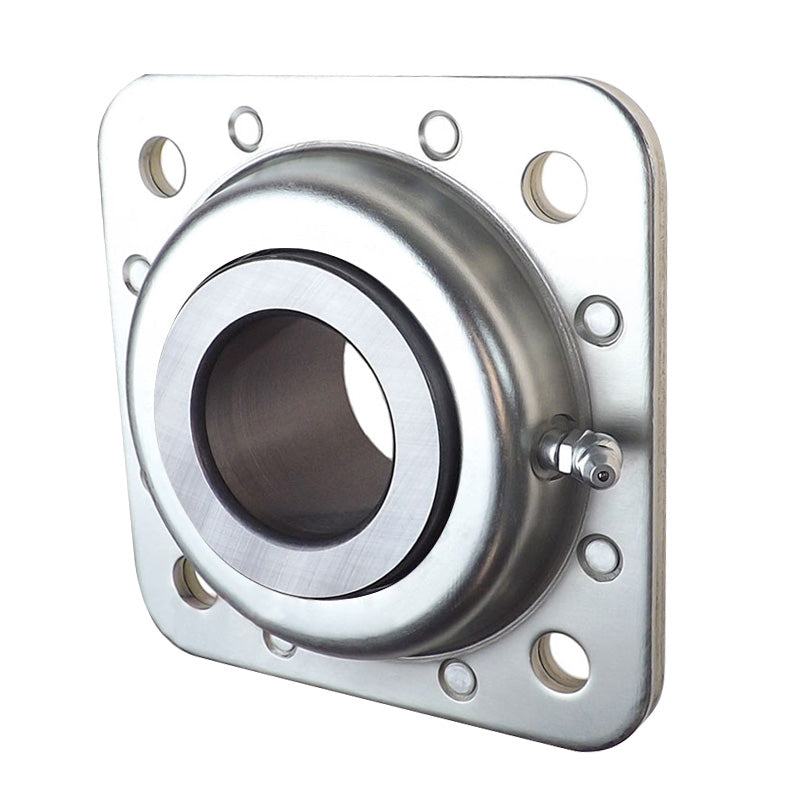

Major Brand FD211134RD Seedbed Finisher Round Bore Relubricatable Flanged Disc with Bolt Holes 1.78x5.5x2.1875 inch
Major Brand FD211134RD Seedbed Finisher Round Bore Relubricatable Flanged Disc with Bolt Holes 1.78x5.5x2.1875 inch
Regular price
CHF 83.00
ex VAT
Regular price
Sale price
CHF 83.00
ex VAT
Equivalent to: FD211-1-3/4RD DHU 1 3/4R-211 FD-211-RE
Low stock
Price Break
5+
CHF 65.43
9+
CHF 61.75
19+
CHF 61.02
29+
CHF 60.28
49+
CHF 59.55
74+
CHF 58.81
99+
CHF 55.14
199+
CHF 54.40
249+
CHF 53.66
499+
CHF 52.93
999+
CHF 51.46
Description
Description
Seedbed Finisher
Application conditions:
- Utilizes two bearing assemblies
- High misalignment from imprecise mounting and wide bearing spread attachments can generate severe stress on the internal components
- Exposed directly into the flow of soil and crop residue
Bolt-on-performance:
- Directly interchangeable industry standard units
- Static misalignment capability accommodates imprecise mounting surfaces
- Dynamic misalignment capability eliminates internal bearing damage and housing wear
- Shock load protection due to thick riveted steel housings
- Exclusive patented sealing system eliminates the need for daily relubrication
Seal Type: P, TRL
Typical Application & Speed Limit: Augers with Direct Crop Contact - Basic BRG. Size < 205: 800 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 500 RPM
Typical Environment: Direct ground and crop contact, moisture exposure
Contamination Exclusion: Severe
Equivalent: FD211-1-3/4RD DHU 1 3/4R-211 FD-211-RE
- Brand / Quality:
- PEER - High Quality
- Inside Diameter:
- 45.21mm = 1.78 inch
- Outside Diameter:
- 139.7mm = 5.5 (5-1/2) inch
- Width:
- 55.56mm = 2.187 (2-3/16) inch
Technical
Technical
| A/d | 1.78 inch = 45.212mm |
|---|---|
| Bi | 2.1875 inch = 55.563mm |
| L | 5.5 inch = 139.7mm |
| D Bolt Circle | 5.5 inch = 139.7mm |
| E | 0.531 inch = 13.49mm |
| B Min. Frame Opening | 4.491 inch = 114.07mm |
| C | 1.811 inch = 46mm |
| Seal/Shield Type | P, TRL Seal |
