SKU: FHR-1-1/8

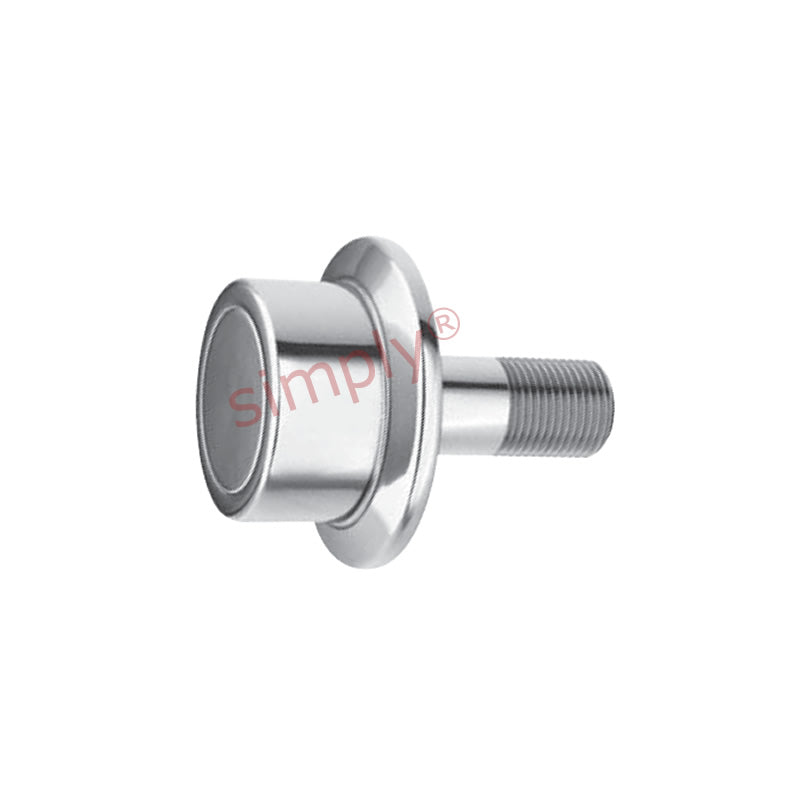

Major Brand FHR1-1/8 Hex Head Flanged Hi-Roller Bearing 1-1/8 inch Outside Diameter Allow 7-10 Days
Major Brand FHR1-1/8 Hex Head Flanged Hi-Roller Bearing 1-1/8 inch Outside Diameter Allow 7-10 Days
Regular price
CHF 90.00
ex VAT
Regular price
Sale price
CHF 90.00
ex VAT
Equivalent to: FHR-112-A FLR-1-1/8 FCF-1-1/8
In stock
Price Break
3+
CHF 71.15
4+
CHF 67.15
9+
CHF 66.35
19+
CHF 65.55
29+
CHF 64.75
39+
CHF 63.95
49+
CHF 59.96
59+
CHF 59.16
249+
CHF 58.36
499+
CHF 57.56
999+
CHF 55.96
Description
Description
|
Flanged Hi-Roller Bearing: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. Benefits: Ideal for use in environments where dust or high moisture is present. |
Equivalent: FHR-112-A FLR-1-1/8 FCF-1-1/8
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Width:
- 19.84mm = 0.781 (25/32) inch

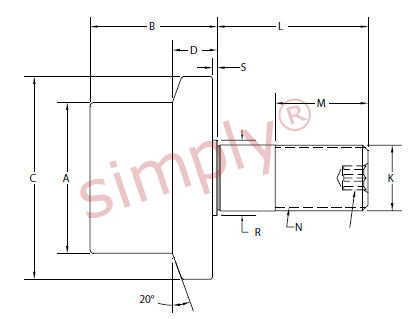

Technical
Technical
| A | 1.125 inch |
|---|---|
| B | 0.781 inch |
| C | 1.5 inch |
| D | 0.219 inch |
| K | 0.4375 inch |
| L | 1 inch |
| M | 0.5 inch |
| Thread class 2A N | 7/16-20 UNF |
| R | 0.5 inch |
| S | 0.031 inch |
| Basic dynamic rating | 630 lbs |
| Dynamic thrust load rating | 140 lbs |
| Max static capacity | 230 lbs |
