SKU: FHR-1-3/4

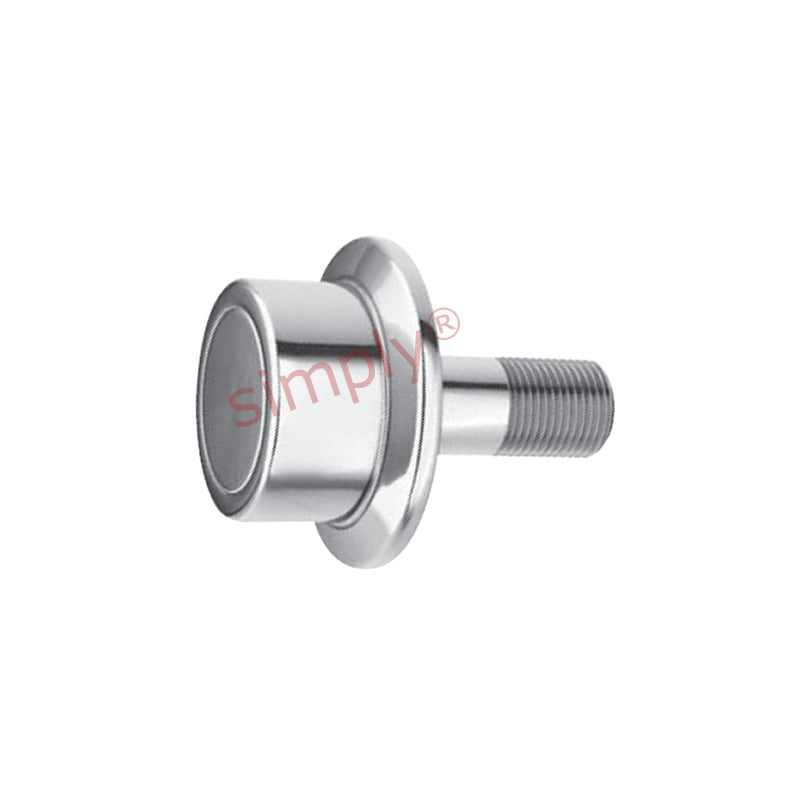

Major Brand FHR1-3/4 Hex Head Flanged Hi-Roller Bearing 1-3/4 inch Outside Diameter
Major Brand FHR1-3/4 Hex Head Flanged Hi-Roller Bearing 1-3/4 inch Outside Diameter
Regular price
CHF 104.00
ex VAT
Regular price
Sale price
CHF 104.00
ex VAT
Equivalent to: FHR-175-A FLR-1-3/4 FCF-1-3/4
In stock
Price Break
3+
CHF 82.67
4+
CHF 78.02
9+
CHF 77.09
19+
CHF 76.16
29+
CHF 75.24
39+
CHF 74.31
49+
CHF 69.66
59+
CHF 68.73
249+
CHF 67.81
499+
CHF 66.88
999+
CHF 65.02
Description
Description
|
Flanged Hi-Roller Bearing: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. Benefits: Ideal for use in environments where dust or high moisture is present. |
Equivalent: FHR-175-A FLR-1-3/4 FCF-1-3/4
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Width:
- 30.18mm = 1.188 inch
Technical
Technical
| A | 1.75 inch |
|---|---|
| B | 1.188 inch |
| C | 2.438 inch |
| D | 0.344 inch |
| K | 0.75 inch |
| L | 1.75 inch |
| M | 0.875 inch |
| Thread class 2A N | 3/4-16 UNF |
| R | 1 inch |
| S | 0.062 inch |
| Basic dynamic rating | 2750 lbs |
| Dynamic thrust load rating | 1700 lbs |
| Max static capacity | 1100 lbs |
