SKU: FHRE-1-3/4

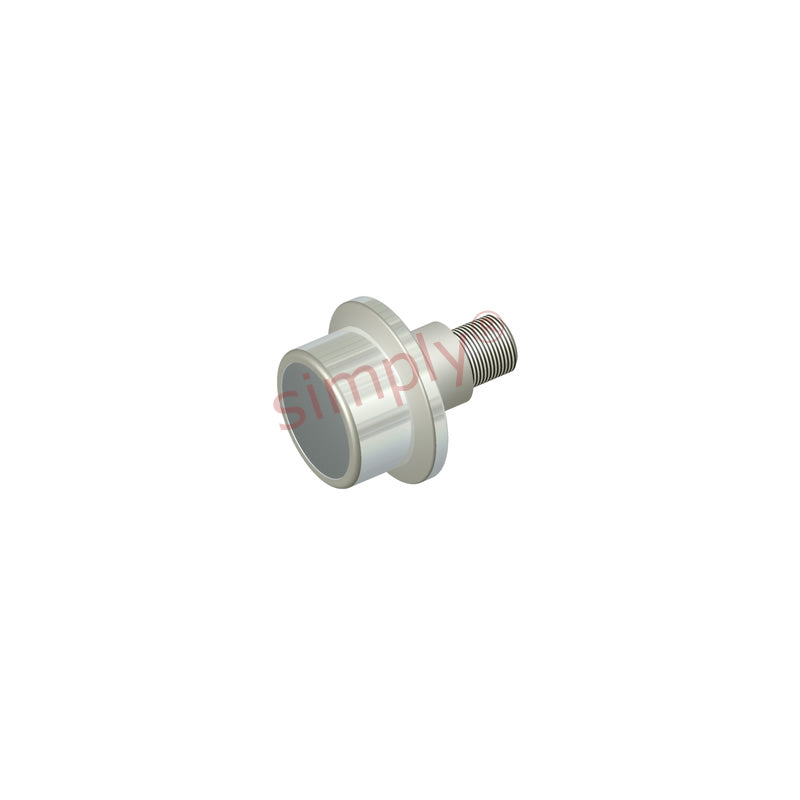

Major Brand FHRE1-3/4 Hex Head Flanged Eccentric Hi-Roller Bearing 1-3/4 inch Outside Diameter Allow 7-10 Days
Major Brand FHRE1-3/4 Hex Head Flanged Eccentric Hi-Roller Bearing 1-3/4 inch Outside Diameter Allow 7-10 Days
Regular price
CHF 154.00
ex VAT
Regular price
Sale price
CHF 154.00
ex VAT
Equivalent to: FHRE-175-A FLRE-1-3/4
In stock
Price Break
3+
CHF 122.55
4+
CHF 115.67
9+
CHF 114.29
19+
CHF 112.91
29+
CHF 111.54
39+
CHF 110.16
49+
CHF 103.28
59+
CHF 101.90
249+
CHF 100.52
499+
CHF 99.14
999+
CHF 96.39
Description
Description
|
Flanged Hi-Roller Bearing Eccentric Type: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. This bearing contains an eccentric stud. Benefits: Ideal for use in environments where dust or high moisture is present. |
Equivalent: FHRE-175-A FLRE-1-3/4
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Width:
- 30.18mm = 1.188 inch
Technical
Technical
| A | 1.75 inch |
|---|---|
| B | 1.188 inch |
| C | 2.438 inch |
| D | 0.344 inch |
| L | 1.75 inch |
| M | 7/8 inch |
| Thread class 2A N | 3/4-16 UNF |
| R | 1.24 inch |
| S | 0.062 inch |
| T | 1 inch |
| U | 0.855 inch |
| W | 0.03 inch |
| Basic dynamic rating | 2760 lbs |
| Dynamic thrust load rating | 680 lbs |
| Max static capacity | 1100 lbs |
