SKU: FHRE-2-1/4-CARTER

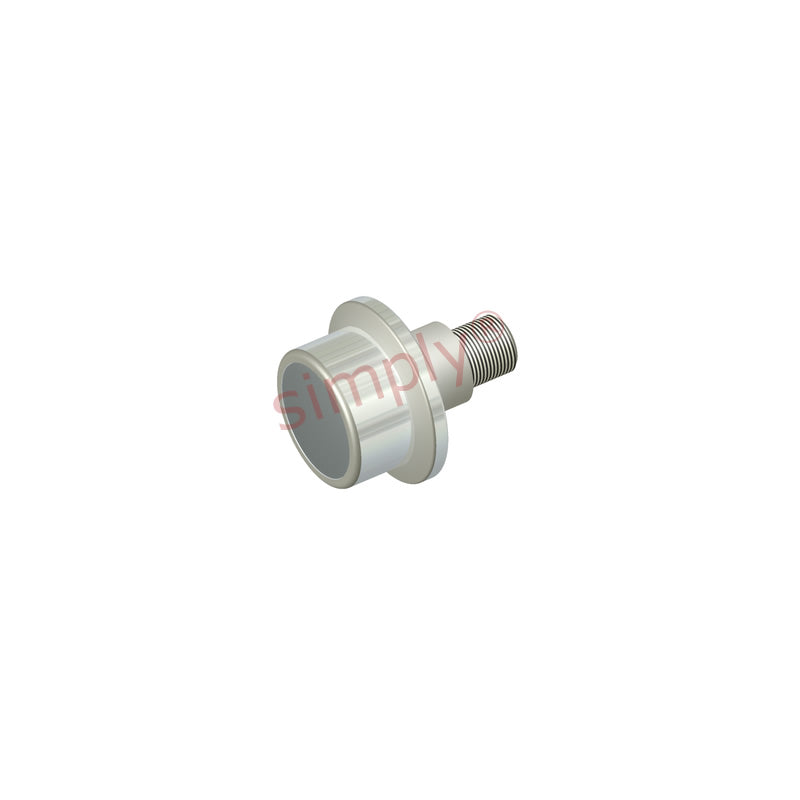

Carter FHRE2-1/4 Hex Head Flanged Eccentric Hi-Roller Bearing 2-1/4 inch Outside Diameter Allow 7-10 Days
Carter FHRE2-1/4 Hex Head Flanged Eccentric Hi-Roller Bearing 2-1/4 inch Outside Diameter Allow 7-10 Days
Regular price
CHF 184.50
ex VAT
Regular price
Sale price
CHF 184.50
ex VAT
In stock
Price Break
10+
CHF 164.21
19+
CHF 154.98
29+
CHF 153.14
39+
CHF 151.29
49+
CHF 149.45
74+
CHF 147.60
99+
CHF 138.38
199+
CHF 136.53
249+
CHF 134.69
499+
CHF 132.84
999+
CHF 129.15
Couldn't load pickup availability
Description
Description
|
Flanged Hi-Roller Bearing Eccentric Type: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. This bearing contains an eccentric stud. Benefits: Ideal for use in environments where dust or high moisture is present. |
- Brand / Quality:
- Carter - High Quality
- Outside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Width:
- 42.88mm = 1.688 inch
Technical
Technical
| A | 2.25 inch |
|---|---|
| B | 1.688 inch |
| C | 2.938 inch |
| D | 0.594 inch |
| L | 2 inch |
| M | 1-1/8 inch |
| Thread class 2A N | 7/8-14 UNF |
| R | 1.5 inch |
| S | 0.062 inch |
| T | 1.187 inch |
| U | 0.98 inch |
| W | 0.03 inch |
| Basic dynamic rating | 3830 lbs |
| Dynamic thrust load rating | 1000 lbs |
| Max static capacity | 1620 lbs |
