SKU: FHRE-3-1/2-CARTER
Carter FHRE3-1/2 Hex Head Flanged Eccentric Hi-Roller Bearing 3-1/2 inch Outside Diameter Allow 7-10 Days
Carter FHRE3-1/2 Hex Head Flanged Eccentric Hi-Roller Bearing 3-1/2 inch Outside Diameter Allow 7-10 Days
Regular price
CHF 381.58
ex VAT
Regular price
Sale price
CHF 381.58
ex VAT
In stock
Price Break
10+
CHF 339.61
19+
CHF 320.53
29+
CHF 316.71
39+
CHF 312.90
49+
CHF 309.08
74+
CHF 305.26
99+
CHF 286.19
199+
CHF 282.37
249+
CHF 278.55
499+
CHF 274.74
999+
CHF 267.11
Couldn't load pickup availability
Description
Description
|

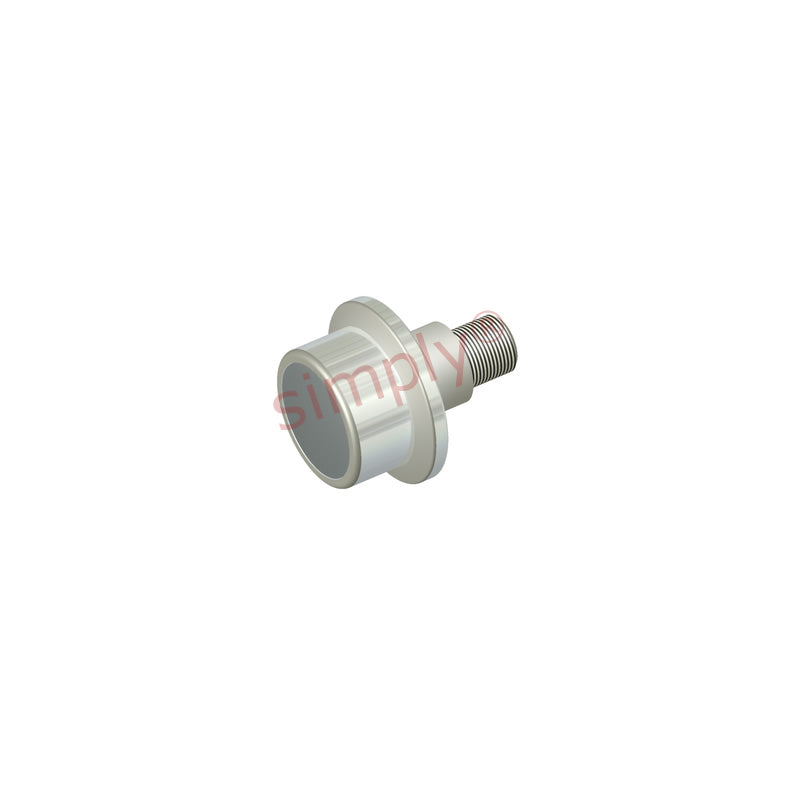

Flanged Hi-Roller Bearing Eccentric Type: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. This bearing contains an eccentric stud. Benefits: Ideal for use in environments where dust or high moisture is present. |
- Brand / Quality:
- Carter - High Quality
- Outside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Width:
- 50.8mm = 2 inch
Technical
Technical
| A | 3.5 inch |
|---|---|
| B | 2 inch |
| C | 4.438 inch |
| D | 0.594 inch |
| L | 2.75 inch |
| M | 1-3/4 inch |
| Thread class 2A N | 1-1/4-12 UNF |
| R | 2.312 inch |
| S | 0.062 inch |
| T | 1.812 inch |
| U | 1.355 inch |
| W | 0.06 inch |
| Basic dynamic rating | 14270 lbs |
| Dynamic thrust load rating | 12000 lbs |
| Max static capacity | 20000 lbs |
