SKU: FHRE-3-1/4

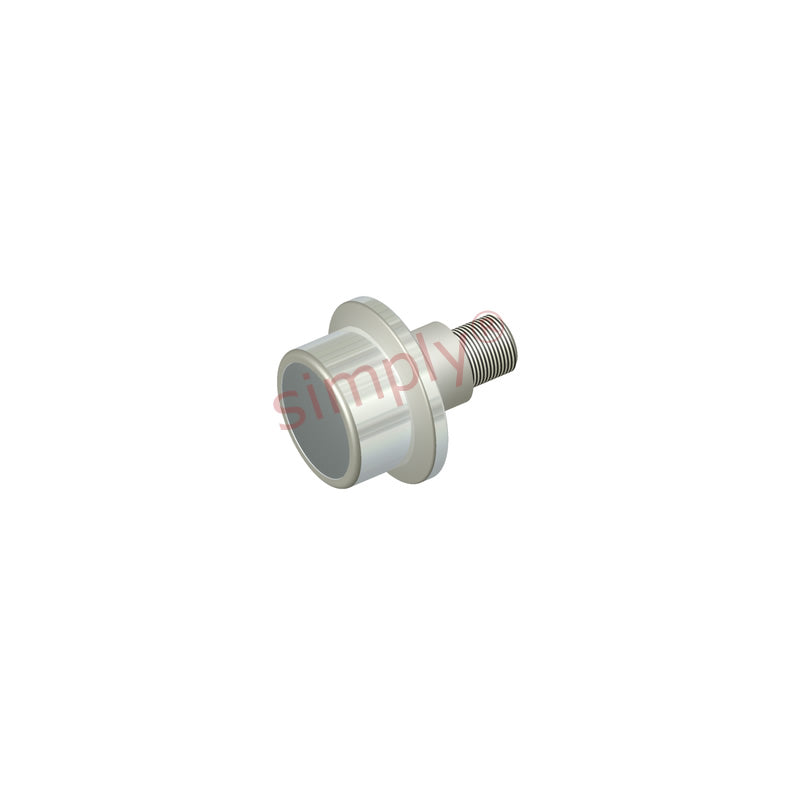

Major Brand FHRE3-1/4 Hex Head Flanged Eccentric Hi-Roller Bearing 3-1/4 inch Outside Diameter Allow 7-10 Days
Major Brand FHRE3-1/4 Hex Head Flanged Eccentric Hi-Roller Bearing 3-1/4 inch Outside Diameter Allow 7-10 Days
Regular price
CHF 356.00
ex VAT
Regular price
Sale price
CHF 356.00
ex VAT
Equivalent to: FHRE-325-A FLRE-3-1/4
In stock
Price Break
3+
CHF 283.01
4+
CHF 267.11
9+
CHF 263.93
19+
CHF 260.75
29+
CHF 257.57
39+
CHF 254.39
49+
CHF 238.49
59+
CHF 235.31
249+
CHF 232.13
499+
CHF 228.95
999+
CHF 222.59
Description
Description
|
Flanged Hi-Roller Bearing Eccentric Type: Designed for applications where both radial and thrust loading are present. These bearings are tightly sealed with an expansion plug on one end and radial contact lip seals on the bearings. They are capable of running at much higher speeds than needle bearing cam followers. This bearing contains an eccentric stud. Benefits: Ideal for use in environments where dust or high moisture is present. |
Equivalent: FHRE-325-A FLRE-3-1/4
- Brand / Quality:
- Major Brand - High Quality
- Outside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Width:
- 50.8mm = 2 inch
Technical
Technical
| A | 3.25 inch |
|---|---|
| B | 2 inch |
| C | 4.188 inch |
| D | 0.594 inch |
| L | 2.5 inch |
| M | 1-3/4 inch |
| Thread class 2A N | 1-1/4-12 UNF |
| R | 2.312 inch |
| S | 0.062 inch |
| T | 1.75 inch |
| U | 1.23 inch |
| W | 0.06 inch |
| Basic dynamic rating | 14270 lbs |
| Dynamic thrust load rating | 12000 lbs |
| Max static capacity | 20000 lbs |
