SKU: FLCTE12-XL-INA

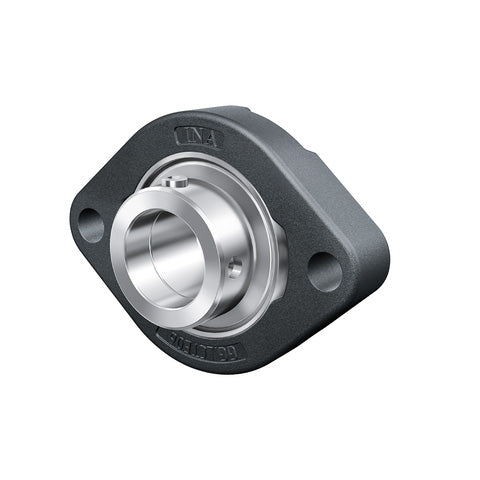

INA FLCTE12XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 12mm Bore

Name: INA FLCTE12XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 12mm Bore
Brand: INA
SKU: FLCTE12-XL-INA
Price: 33.00 CHF
Availability: InStock

CHF 33.00 ex VAT

Sale Sold out

In stock

Price Break

4+ CHF 25.95

9+ CHF 24.49

19+ CHF 24.20

29+ CHF 23.91

39+ CHF 23.62

49+ CHF 23.33

59+ CHF 21.87

69+ CHF 21.58

79+ CHF 21.29

89+ CHF 21.00

99+ CHF 20.41

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft.
Note: This housing unit does not have a relubrication facility.
Benefits: Eccentric collar, tolerates misalignment of the shaft.

Brand / Quality:: INA - High Quality
Inside Diameter:: 12mm
Style:: FLCTE
Bolt Hole Centres:: 63.5mm

Technical

d	12mm
H	81mm
U	30.5mm
A1	15mm
A2	8.4mm
B1	28.6mm
d3 max	28.4mm
J	63.5mm
L	58.7mm
N	6.6mm
Mass	0.3 kg
Basic dynamic load rating Cr	10100 N
Basic static load rating Cor	4750 N
Designation of housing	LCTE03
Designation of bearing	RAE12-XL-NPP-B
