SKU: FLCTE35-XL-INA

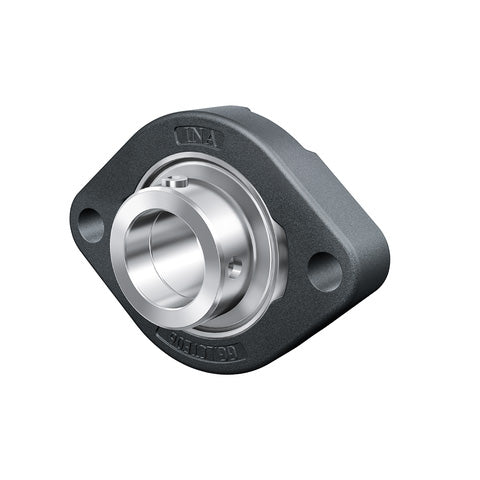

INA FLCTE35XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 35mm Bore
INA FLCTE35XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 35mm Bore
Regular price
CHF 54.00
ex VAT
Regular price
Sale price
CHF 54.00
ex VAT
In stock
Price Break
4+
CHF 42.65
9+
CHF 40.25
19+
CHF 39.77
29+
CHF 39.29
39+
CHF 38.82
49+
CHF 38.34
59+
CHF 35.94
69+
CHF 35.46
79+
CHF 34.98
89+
CHF 34.50
99+
CHF 33.54
Share this product
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. Note: This housing unit does not have a relubrication facility. Benefits: Eccentric collar, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Style:
- FLCTE
- Bolt Hole Centres:
- 100mm
Technical
Technical
| d | 35mm |
|---|---|
| H | 126mm |
| U | 42mm |
| A1 | 22mm |
| A2 | 12.4mm |
| B1 | 39mm |
| d3 max | 55mm |
| J | 100mm |
| L | 94mm |
| N | 11.5mm |
| Mass | 1.02 kg |
| Basic dynamic load rating Cr | 27500 N |
| Basic static load rating Cor | 15300 N |
| Designation of housing | LCTE07 |
| Designation of bearing | RAE35-XL-NPP-B |
