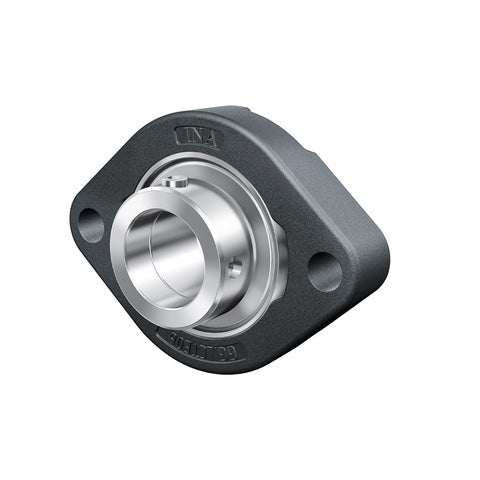

INA FLCTEY35XL Two Bolt Cast Iron Oval Housing with Grub Screw Insert 35mm Bore
INA FLCTEY35XL Two Bolt Cast Iron Oval Housing with Grub Screw Insert 35mm Bore
Regular price
CHF 48.66
ex VAT
Regular price
Sale price
CHF 48.66
ex VAT
In stock
Price Break
10+
CHF 43.31
19+
CHF 40.87
29+
CHF 40.39
39+
CHF 39.90
49+
CHF 39.41
74+
CHF 38.93
99+
CHF 36.50
199+
CHF 36.01
249+
CHF 35.52
499+
CHF 35.04
999+
CHF 34.06
Couldn't load pickup availability
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. Note: This housing unit does not have a relubrication facility. Benefits: Grub screw fixing, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 35mm
- Style:
- FLCTEY
- Bolt Hole Centres:
- 100mm
Technical
Technical
| d | 35mm |
|---|---|
| H | 126mm |
| U | 37.9mm |
| A1 | 22mm |
| A2 | 12.4mm |
| B | 35mm |
| J | 100mm |
| L | 94mm |
| N | 11.5mm |
| Mass | 0.93 kg |
| Basic dynamic load rating Cr | 27500 N |
| Basic static load rating Cor | 15300 N |
| Designation of housing | LCTE07 |
| Designation of bearing | GAY35-XL-NPP-B |
